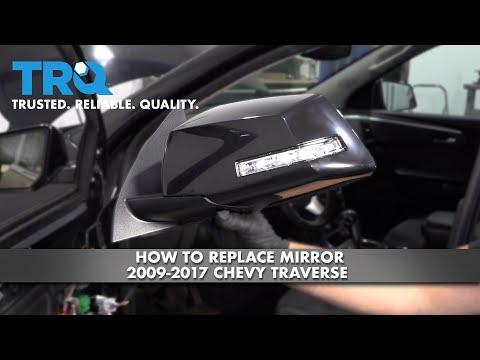

🔧 Traverse - Side View Mirror Replacement

Replacing a side view mirror on your Traverse usually means removing the interior door trim panel to unplug the mirror and remove the mounting nuts. This is a straightforward job, but take your time so you don’t break trim clips or scratch paint.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (per side)

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and keep the window fully up.
• ⚠️ Wear gloves and safety glasses; door metal edges can be sharp.
• ⚠️ If your mirror has turn signal or memory functions, disconnect the battery to reduce the chance of electrical damage: use a 10mm socket on the negative terminal.
• ⚠️ Support the mirror with your hand before removing the last nut so it doesn’t fall and chip paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Plastic trim removal tool set
• Ratchet
• 3-inch extension
• 7mm socket
• 10mm socket
• Torx T20 screwdriver
• Small pick tool
• Painter’s tape
• Torque wrench (inch-pound)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly - Left or Right (match options: power/heated/turn-signal if equipped) - Qty: 1
• Door trim panel clip set - Qty: 1 (as needed)
• Foam mirror gasket - Qty: 1 (if not included with mirror)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Use painter’s tape along the door edge and around the mirror area to help protect paint.
• If disconnecting the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.
• Keep screws in cups by location.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior sail panel

• Open the door fully.
• At the top-front of the door (inside), remove the small triangular trim piece (sail panel) using a plastic trim removal tool set.
• If it has a tweeter speaker, unplug the connector using a small pick tool to release the lock tab.

Step 2: Remove the door trim panel fasteners

• Remove the screw(s) in/near the interior door handle area using a Torx T20 screwdriver.
• Remove the screw(s) along the bottom edge of the door panel using a 7mm socket with a ratchet.
• Remove any additional visible 7mm screws (some doors have one behind a small cap); pop caps gently with a small pick tool.

Step 3: Release the door trim panel clips

• Slide a plastic trim removal tool set between the door panel and the door metal and pop the clips free around the perimeter.
• A trim clip is a push-in plastic fastener; it “pops” out with steady pressure.
• Pull straight out to avoid breaking clips.

Step 4: Lift the door trim panel off and disconnect wiring

• Lift the door panel straight upward to unhook it from the window ledge.
• Disconnect the electrical connectors (window/lock switch, courtesy light) by pressing the tab and pulling apart.
• Disconnect the inside door handle cable: use a plastic trim removal tool set to swing the cable retainer out, then lift the cable end out of the handle.

Step 5: Unplug the mirror connector

• Locate the mirror wiring connector near the top-front of the door.
• Release the locking tab with a small pick tool and unplug the connector.

Step 6: Remove the mirror mounting nuts

• Hold the mirror from the outside with one hand.
• Use a 10mm socket, ratchet, and 3-inch extension to remove the mirror mounting nuts (typically 3 nuts).
• Remove the mirror and gasket from the outside of the door.

Step 7: Install the new mirror

• Clean the mounting surface and make sure the foam mirror gasket is seated correctly.
• Feed the mirror wiring through the opening and position the mirror on the door.
• Start all mirror nuts by hand to avoid cross-threading.
• Tighten with a 10mm socket and torque wrench (inch-pound): Torque to 10 Nm (89 in-lbs).

Step 8: Reconnect the mirror wiring and reassemble the door

• Plug the mirror connector back in until it clicks.
• Reconnect the door handle cable and all electrical connectors.
• Hang the door panel on the top ledge first, then press around the edges to seat all clips.
• Reinstall screws using a 7mm socket and Torx T20 screwdriver (snug them; do not over-tighten into plastic).
• Reinstall the sail panel using your hands and a plastic trim removal tool set for gentle seating.

Step 9: Reconnect the battery (if disconnected)

• Reconnect the negative battery cable using a 10mm socket (tighten snug).

---

✅ After Repair

• Test mirror functions: power adjust, heat (if equipped), turn signal (if equipped), and puddle lamp (if equipped).
• Test window and door lock switch operation before fully closing up tools.
• Check mirror fit: no wobble, gasket seated, no wind gap.
• Do a short drive and listen for wind noise; if you hear it, re-check gasket alignment and nut torque.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$700 (parts + labor, varies by mirror options)

DIY Cost: $90-$450 (parts only)

You Save: $160-$250+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
