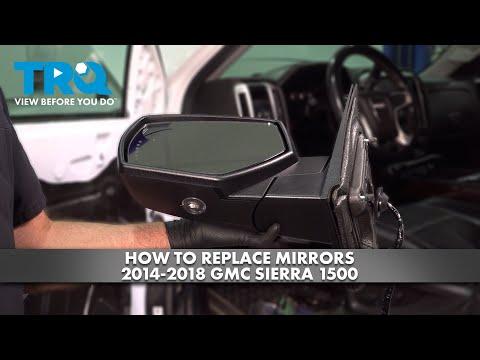

🔧 Sierra 1500 - Side View Mirror Replacement

On your Sierra 1500, the mirror is held on by nuts behind the small triangular “sail panel” trim at the front upper corner of the door. The main job is removing trim to reach the mirror connector, swapping the mirror, then reinstalling everything without breaking clips or scratching paint.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before working in the door; side airbags and wiring are in this area.
• ⚠️ Support the mirror as you remove the last nut so it doesn’t fall and chip paint.
• ⚠️ Use plastic trim tools; metal screwdrivers can crack trim and gouge paint.
• ⚠️ Keep the window fully up while removing the mirror to avoid glass damage.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Plastic trim removal tool set
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• 7mm socket
• 10mm socket
• Torx T15 driver
• Torx T20 driver
• Small flat plastic pick
• Torque wrench (inch-pound)
• Painters tape (1" wide)
• Magnetic pickup tool
• Shop towel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (correct side, correct options) - Qty: 1
• Door trim panel clips - Qty: 1 set (as needed)
• Foam mirror-to-door seal (if not included with mirror) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the ignition off.
• Lower the window slightly, then raise it fully (this makes door-panel handling easier).
• Use a 10mm socket to disconnect the negative battery cable and wait 2 minutes.
• Quick check: confirm whether your replacement mirror matches your truck’s options (power adjust, heat, turn-signal, puddle lamp, power-fold, memory).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Protect the door and mirror area

• Apply painters tape (1" wide) along the edge of the mirror base and the door paint near it.
• Place a shop towel on the door sill to protect trim.

Step 2: Remove the sail panel (inner triangular trim)

• Use a plastic trim removal tool set to gently pry off the triangular sail panel at the front upper corner of the door.
• Work slowly—clips release with steady pressure.

Step 3: Find the mirror connector (two possible locations)

• Look behind the sail panel opening for the mirror electrical connector.
• If you can see/reach it: use a small flat plastic pick to lift the locking tab, then unplug it.
• If you cannot reach it (connector is deeper inside the door): continue to Step 4 to remove the door panel.

Step 4: Remove the front door trim panel (only if needed for the connector)

• Use a plastic trim removal tool set to pop up the switch bezel (window/lock switches), then unplug the connectors.
• Remove the door pull/handle screws using a 7mm socket (and Torx T15 driver or Torx T20 driver if equipped).
• Use a plastic trim removal tool set to pop the door panel clips free around the edges.
• Lift the panel straight up to unhook it from the window channel, then unplug remaining connectors.

Step 5: Unplug the mirror harness

• If you didn’t already: locate the mirror connector inside the door and unplug it using a small flat plastic pick to release the lock.
• Free the harness from any retainers using a plastic trim removal tool set.

Step 6: Remove the mirror mounting nuts

• Support the mirror with one hand from outside the door.
• Use a 10mm socket, 1/4" drive ratchet, and 3" extension (1/4" drive) to remove the mirror nuts.
• If a nut drops: retrieve it with a magnetic pickup tool.

Step 7: Remove the mirror and transfer parts (if required)

• Pull the mirror away from the door and feed the harness through the opening.
• If your new mirror doesn’t include a seal: move the foam mirror-to-door seal to the new mirror.

Step 8: Install the new mirror

• Feed the harness through the door opening and position the mirror on the studs.
• Start all nuts by hand first to avoid cross-threading.
• Use a 10mm socket to snug them evenly.
• Use a torque wrench (inch-pound): Torque to 10 Nm (89 in-lb).

Step 9: Reconnect wiring and reassemble trim

• Plug in the mirror connector until it clicks; verify the locking tab is engaged using a small flat plastic pick.
• Reinstall the sail panel by aligning clips and pressing it in by hand.
• If the door panel was removed: reinstall it by hooking the top edge first, then press clips in around the perimeter by hand.
• Reinstall screws using a 7mm socket and/or Torx T15 driver/Torx T20 driver (as equipped).

Step 10: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Turn the ignition on and test mirror functions: adjust in all directions, heat (if equipped), turn signal (if equipped), puddle lamp (if equipped), power-fold (if equipped).
• Check for wind noise on a short drive; if you hear whistling, re-check the mirror seal seating.
• Confirm the mirror is stable by gently pushing on the housing—no looseness.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$700 (parts + labor, varies by options)

DIY Cost: $90-$450 (parts only, varies by options)

You Save: $160-$250 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
