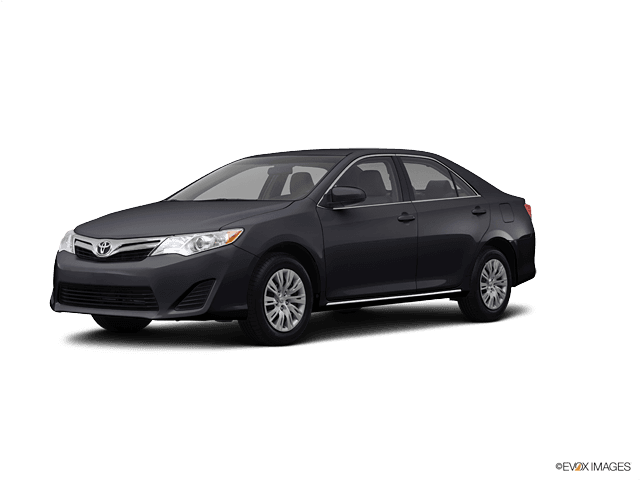

🔧 Camry - Side View Mirror Replacement

You’ll be removing the interior door trim panel, unplugging the mirror wiring, and then unbolting and swapping the mirror assembly on your Camry. This sounds scary, but if you go slowly and keep track of clips and screws, it’s very doable for a beginner.

Difficulty Level: Beginner | Estimated Time: 1–1.5 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging any mirror wiring to avoid short circuits or airbag warning lights.
• ⚠️ Your Camry has side airbags in the doors; do not poke sharp tools deep into the door panel.
• ⚠️ Work with the engine off, key out, and window fully closed on the side you’re working on.
• ⚠️ Support the mirror with one hand when removing the last mounting nut so it doesn’t fall and scratch the door.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 1/4" drive 3" extension
• Phillips #2 screwdriver
• Flathead screwdriver (small)
• Trim removal tool set (plastic) (specialty)
• Needle-nose pliers
• Torque wrench (inch-lb, 30–100 in-lb range)
• Panel clip removal tool (specialty)
• Masking tape roll
• Shop light or flashlight
• Mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (power, paint-to-match, driver side) - Qty: 1 (if replacing driver side)
• Side view mirror assembly (power, paint-to-match, passenger side) - Qty: 1 (if replacing passenger side)
• Door trim panel clips - Qty: 10–15 (have spares in case some break)
• Butyl seal strip or foam tape (for mirror sail area) - Qty: 1 roll
• Touch-up paint (Camry body color) - Qty: 1 (optional, for small chips)

---

📋 Before You Begin

• Park your Camry on level ground, shift to Park, and set the parking brake.
• Close the window on the side you are working on.
• Turn ignition OFF and remove the key.
• Open the hood and disconnect the negative battery cable using a 10mm socket; move the cable aside so it cannot spring back.
• Lay a clean towel over the top edge of the door to protect the paint while you work.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Protect the door and mirror area

• Use masking tape roll to tape along the painted area around the mirror base and top of the door panel to avoid scratches.
• Place a towel on the ground next to the door in case you drop a screw or the mirror.
• More protection means fewer regrets later.

Step 2: Remove small trim cover at mirror base

• Open the front door fully.
• At the inside upper front corner of the door panel (near the mirror), locate the triangular plastic trim piece (called the sail panel).
• Insert a trim removal tool set (plastic) gently at the edge and pry outward to release the clips.
• Pull the sail panel off carefully and set it aside.

Step 3: Remove door panel screws

• Look in the door pull handle (where you grab to close the door); there is a small plastic cover hiding a screw.
• Use a flathead screwdriver (small) to gently pop off the small cover.
• Remove the exposed screw using a Phillips #2 screwdriver and keep it in a safe place.
• Check near the bottom edge of the door panel for another Phillips screw and remove it with the Phillips #2 screwdriver if present.

Step 4: Release the door panel clips

• Starting at the bottom edge of the door panel, slide a trim removal tool set (plastic) between the panel and metal door.
• Gently pry outward to pop the first clip free; you will hear it release.
• Work your way around the sides and bottom, popping each clip with the trim removal tool set (plastic) or panel clip removal tool (specialty).
• When all clips are loose, lift the door panel straight up to disengage it from the window channel at the top.
• Lift, don’t yank, to avoid breaking hooks.

Step 5: Unplug door panel connectors

• Support the door panel with one hand; don’t let it hang by the wires.
• Unplug the power window/lock switch connector by pressing the locking tab with your thumb and pulling gently.
• If your Camry has a courtesy light at the bottom of the panel, unplug that connector as well using your fingers or needle-nose pliers gently if needed.
• Set the door panel somewhere safe, face up, to avoid scratching it.

Step 6: Access the mirror wiring connector

• With the panel off, look at the top front corner of the inner door, behind where the sail panel was.
• Locate the mirror wiring connector (a small multi-pin plug coming from the mirror).
• Use your fingers to press the tab and unplug it; if tight, use needle-nose pliers carefully on the connector body (not the wires).

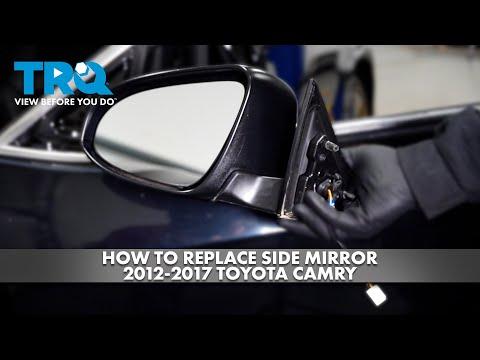

Step 7: Remove the old mirror

• From inside the door, you will see three mirror mounting studs with nuts on them.
• Support the mirror on the outside with one hand so it does not fall.
• Use a 10mm socket with 1/4" drive ratchet and 1/4" drive 3" extension to remove the three nuts.
• Carefully pull the mirror away from the door from the outside, feeding the wiring and grommet through the hole.
• Place the old mirror aside.

Step 8: Prepare the new mirror

• Compare the new mirror to the old one to make sure mounting points and connector match.
• If the original mirror had any foam gasket or seal, peel it off gently and transfer to the new mirror, or apply butyl seal strip or foam tape around the mounting area to prevent wind noise.
• Dry-fit the mirror once before final tightening.

Step 9: Install the new mirror

• From outside the door, feed the new mirror wiring and grommet through the opening.
• Position the mirror flush against the door.
• From inside, start all three 10mm nuts by hand on the studs to avoid cross-threading.
• Use the 10mm socket, 1/4" drive ratchet, and 1/4" drive 3" extension to snug the nuts evenly.
• Finish tightening with a torque wrench (inch-lb, 30–100 in-lb range) to 7 Nm (62 in-lbs). Do not overtighten or you can crack the mirror base.

Step 10: Reconnect mirror wiring and test (temporary reconnect)

• Plug the mirror wiring connector back into the door harness firmly.
• Temporarily reconnect the negative battery cable with the 10mm socket.
• Turn ignition to ON (engine not necessary) and test mirror adjustment switch and mirror folding (if equipped).
• If your mirror has a turn signal or heater (depending on mirror type), test those features as well by using the turn signal and rear defrost.
• Turn ignition off and disconnect the negative battery cable again using the 10mm socket before reassembling.

Step 11: Reinstall the door panel

• Reconnect all door panel electrical connectors (window/lock switch, courtesy light) by pushing until they click.
• Hang the top of the panel over the window ledge, aligning the upper hooks with the door frame.
• Press the panel down to seat the top edge, then line up the clip holes.
• Using your palms, press around the edges of the panel to snap all clips back into place. Replace any broken clips with new ones.

Step 12: Reinstall screws and trim pieces

• Install the door panel screws using the Phillips #2 screwdriver in the handle area and lower edge (if equipped).
• Snap the small plastic screw cover back over the handle screw by hand.
• Reinstall the triangular sail panel by lining up its clips and pressing it firmly into place.

Step 13: Final battery reconnect and function check

• Reconnect the negative battery cable using the 10mm socket and tighten snugly.
• Torque to 5 Nm (44 in-lbs) if using a torque wrench (inch-lb, 30–100 in-lb range).
• Turn ignition ON and test: window operation, door locks, mirror adjustment, and any mirror signal or heat functions.
• Fix issues now before closing the hood.

---

✅ After Repair

• Start the engine and operate the mirror adjustment through all directions to confirm smooth movement.
• Check from outside that the mirror sits tight against the door with no gaps or wobble.
• Drive at low speed with the window slightly open and listen for wind whistle near the mirror area; if you hear it, you may need to add more foam tape behind the sail area.
• If you disconnected the battery long enough to reset settings, re-set your radio presets and clock.

---

💰 DIY vs Shop Cost

Shop Cost: $250–$450 per side (parts + labor)

DIY Cost: $80–$180 per side (parts only, depending on mirror options)

You Save: $170–$270 per side by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.8–1.0 hours per side.

---
