🔧 Forester - Side View Mirror Replacement

Replacing a side view mirror means removing the interior door trim (or at least the small sail panel) to access the mirror mounting nuts and electrical connector. Then you swap the mirror assembly and test any features like heat or turn signal.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours (per side)

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF and remove the key before unplugging door wiring.
• ⚠️ Wear safety glasses; door clips can pop loose suddenly.
• ⚠️ Support the mirror with your hand while removing nuts so it doesn’t fall and chip paint.
• ⚠️ If your Forester has a side airbag in the door, avoid probing yellow connectors; disconnecting the battery is recommended.
• ⚠️ Battery disconnect: Recommended (negative terminal) if you’ll remove the full door panel.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Phillips #2 screwdriver
• Trim removal tool set (plastic)
• Needle-nose pliers
• Torque wrench (inch-pound or low-range)
• Painter’s tape (1" wide)
• Magnetic pickup tool
• Shop light
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (left or right, paint-to-match or textured) - Qty: 1
• Door trim panel clips - Qty: 4-10
• Butyl adhesive strip (for vapor barrier reseal) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Lower the window on the side you’re working on; it gives you a safe handhold.
• Apply painter’s tape along the door edge below the mirror to protect paint.
• If removing the full door panel, disconnect the battery negative using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior sail panel

• Use a trim removal tool (plastic) to pry off the small triangular trim panel at the front-top of the door (inside, by the mirror).
• Pull straight outward to release the clips.
• Go slow to avoid cracking the panel.

Step 2: Decide if you need to remove the full door panel

• With the sail panel off, look for the mirror electrical connector and mounting nuts access.
• If you can’t reach the connector or nuts, remove the full door panel in Step 3.

Step 3: Remove the front door trim panel (if needed)

• Use a trim removal tool (plastic) to pop the small cover behind the interior door handle, then remove the screw with a Phillips #2 screwdriver.
• Use a trim removal tool (plastic) to lift the switch panel at the armrest and unplug connectors (press the tab, then pull).
• Remove any additional screws you see in the armrest area using a Phillips #2 screwdriver.
• Use the trim removal tool (plastic) to pop the door panel clips around the edges, then lift the panel upward off the window ledge.
• Support the panel and disconnect any remaining connectors; use needle-nose pliers only if a clip is stubborn.
• Peel back the vapor barrier carefully; if the sticky seal tears, you’ll reseal it later with butyl adhesive strip.

Step 4: Unplug the mirror wiring connector

• Locate the mirror harness connector near the mirror mounting area.
• Press the lock tab and unplug it by hand; use needle-nose pliers only to help press the tab if needed.
• Don’t pull on the wires—pull on the connector.

Step 5: Remove the mirror mounting nuts

• Hold the mirror from the outside with one hand.
• Use a 10mm socket, 6" extension, and 1/4" ratchet to remove the mounting nuts.
• Use a magnetic pickup tool to prevent dropping nuts into the door.

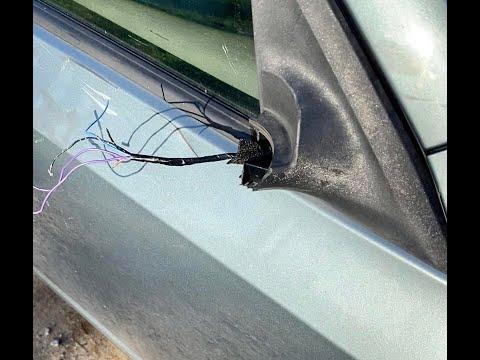

• Lift the mirror off the door and guide the wiring through the opening.

Step 6: Install the new mirror assembly

• Feed the mirror wiring through the door opening and set the mirror in place.
• Start the nuts by hand to avoid cross-threading.
• Tighten the nuts evenly using a 10mm socket and 1/4" ratchet.
• Final tighten using a torque wrench: Torque to 7.5 Nm (66 in-lbs).
• Snug, even tightening prevents mirror wobble.

Step 7: Reconnect wiring and quick-test

• Plug the connector back in until it clicks.
• If you disconnected the battery, reconnect it using a 10mm socket.
• Turn ignition ON and test: mirror adjustment, mirror fold (if equipped), mirror heat (if equipped), and turn signal (if equipped).

Step 8: Reassemble the door

• Reseal the vapor barrier using butyl adhesive strip if it isn’t sticking well.
• Hang the door panel on the window ledge and press clips in around the perimeter with your hands.
• Reinstall screws using a Phillips #2 screwdriver, then reinstall covers.
• Reinstall the sail panel by aligning clips and pressing firmly into place.

---

✅ After Repair

• Confirm the mirror is tight and doesn’t shake at idle.
• Check that the window and door lock switch work correctly.
• If the vapor barrier wasn’t resealed, listen for wind noise and re-seal as needed.
• After a short drive, recheck mirror stability.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor)

DIY Cost: $90-$450 (parts only)

You Save: $160-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
