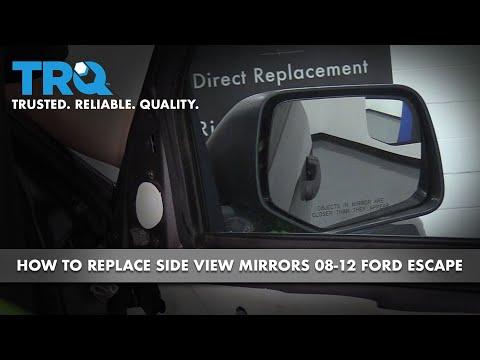

🔧 Escape - Side View Mirror Replacement

Replacing a side view mirror usually means removing the interior “sail” trim at the front corner of the window, unplugging the mirror wiring (if equipped), and swapping the mirror assembly. On your Escape, access is typically from inside the door, so you won’t be fighting the glass or window regulator.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours (each side)

---

⚠️ Safety & Precautions

• ⚠️ If you remove the door panel, disconnect the battery negative cable first and wait 2 minutes (door wiring may include side airbag circuits).
• ⚠️ Support the mirror with your hand when removing the last nut so it doesn’t fall and chip paint.
• ⚠️ Don’t pry on painted surfaces with bare metal tools—use a plastic trim tool.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Trim removal tool set (plastic)
• Phillips screwdriver #2
• Torx T20 screwdriver
• Small pick tool
• Torque wrench (in-lb or low Nm range)
• Painter’s tape
• Shop gloves
• Safety glasses
• 10mm wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (left or right, correct options) - Qty: 1
• Door trim panel clips - Qty: 4-10
• Mirror foam gasket (if not included with mirror) - Qty: 1

---

📋 Before You Begin

• Park on level ground, key out, and lower the window on the side you’re working on.
• Apply painter’s tape along the door edge near the mirror to protect the paint.
• If you will remove the door panel: use a 10mm wrench to disconnect the battery negative cable and wait 2 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior sail trim

• Use a trim removal tool set (plastic) to pry off the small triangular trim panel at the front upper corner of the door (inside, by the mirror).
• If it feels stuck, work around the edges gently—there are usually clips holding it.

Step 2: Unplug the mirror (power mirrors)

• If your mirror is powered, locate the mirror electrical connector behind the sail area.
• Use a small pick tool to lift the lock tab (if present), then unplug the connector by hand.
• Press the tab—don’t pull on wires.

Step 3: Remove the mirror mounting nuts

• Support the mirror from the outside with one hand.
• Use a 10mm socket, 1/4" drive ratchet, and 6" extension (1/4" drive) to remove the mirror mounting nuts (usually 3 nuts).
• Remove the last nut while still holding the mirror.

Step 4: Remove the mirror from the door

• Feed the wiring (if equipped) through the hole as you lift the mirror off.
• Remove any old foam gasket material stuck to the door by hand.

Step 5: Install the new mirror

• Set the new mirror in place and make sure the foam gasket sits flat against the door.
• Start all mounting nuts by hand to avoid cross-threading.
• Use a 10mm socket to snug the nuts evenly.
• Final tighten with a torque wrench (in-lb or low Nm range): Torque to 9 Nm (80 in-lbs).

Step 6: Reconnect wiring and refit the sail trim

• Plug the connector back in until it clicks (use your hands; no tools needed).
• Reinstall the sail trim by lining up the clips, then press firmly by hand until it snaps in.

Step 7 (Only if needed): If the connector is not accessible, remove the door panel

• Use a Phillips screwdriver #2 and Torx T20 screwdriver to remove visible screws in the pull handle/armrest area (locations vary by door).
• Use a trim removal tool set (plastic) to pop the door panel clips around the perimeter.
• Lift the panel upward to unhook it from the window ledge, then unplug connectors.
• After mirror replacement, reconnect everything and press the panel back onto clips; reinstall screws with the same tools.

---

✅ After Repair

• Turn the key on and test mirror adjustment (and heat/turn signal if equipped).
• Check that the mirror sits tight and doesn’t vibrate while tapping it by hand.
• If you disconnected the battery, reset the clock and radio presets as needed.
• Take a short drive and listen for wind noise—if you hear it, the gasket may not be seated flat.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor)

DIY Cost: $70-$250 (parts only)

You Save: $130-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
