🔧 Impala - Side View Mirror Replacement

Replacing the side view mirror on your Impala usually requires removing the inner door trim panel to access the mirror mounting nuts and wiring connector. The job is straightforward, but take your time to avoid breaking plastic clips and to keep the water shield sealed.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (per mirror)

Quick questions (so I can tailor it perfectly): Is your mirror power-adjust and/or heated? And are you replacing the driver or passenger side?

---

⚠️ Safety & Precautions

• Work on level ground with the transmission in PARK and the parking brake set.
• Turn the key off and remove it before unplugging door electrical connectors.
• If your mirror is heated or you’re worried about shorting a connector, disconnect the negative battery cable using a 10mm wrench.
• Don’t tear the plastic water shield (vapor barrier); it prevents water leaks into the cabin.
• Support the door panel while unplugging connectors so it doesn’t hang by wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim panel removal tool (specialty)
• Plastic pry tool set
• Ratchet (3/8")
• Socket extension (3"–6")
• 7mm socket
• 10mm socket
• Torx T30 driver
• Phillips screwdriver #2
• Small flat screwdriver
• 10mm wrench
• Torque wrench (in-lb or Nm capable)
• Painter’s tape

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (correct side, correct options) - Qty: 1
• Mirror foam gasket/seal (if not included with mirror) - Qty: 1
• Door trim panel retainer clips - Qty: 1 set (as needed)
• Butyl tape (vapor barrier sealer) - Qty: 1 (as needed)

---

📋 Before You Begin

• Lower the window all the way (gives you a safe handhold and clearance).
• Apply painter’s tape along the door edge and near the mirror area to protect paint.
• If disconnecting the battery: use a 10mm wrench to remove the negative cable, then wait 2 minutes.
• Have a clean spot ready to set the door panel down (face-up) so it won’t scratch.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the inner sail panel (mirror triangle cover)

• Use a trim panel removal tool (specialty) to pry off the small triangular cover at the top front of the door. (A trim tool is a plastic wedge that pops clips without damaging panels.)
• Pull straight out to release the clips.

Step 2: Remove visible door panel fasteners

• Use a small flat screwdriver to gently pop off any small trim covers hiding screws (commonly near the door pull/handle area).
• Use a 7mm socket and ratchet (3/8") to remove the door panel screws you expose.
• If your Impala uses a Torx fastener in the pull handle area, remove it using a Torx T30 driver.

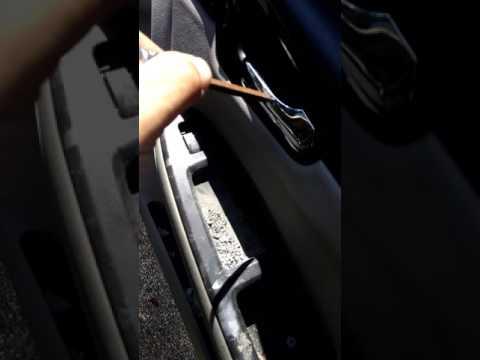

Step 3: Release the door panel clips

• Use a trim panel removal tool (specialty) to work around the lower and side edges of the door panel and pop the clips loose.
• Work slowly; clips break easily.

Step 4: Lift the door panel up and disconnect wiring

• Lift the whole door panel straight up to unhook it from the window ledge.
• Support the panel with your knee or a box.
• Disconnect the electrical connectors (window/lock switch panel) by pressing the locking tab and pulling apart by hand.
• If equipped, disconnect the courtesy light connector at the bottom of the panel.

Step 5: Peel back the vapor barrier (water shield)

• Carefully peel the plastic water shield back near the mirror area.
• If the adhesive doesn’t stick well afterward, use butyl tape during reassembly.

Step 6: Disconnect the mirror electrical connector (if equipped)

• Find the mirror wiring connector inside the door near the mirror mounting area.
• Press the lock tab and unplug it by hand. If needed, use a small flat screwdriver to help release the tab (don’t force it).

Step 7: Remove the mirror mounting nuts

• Hold the mirror with one hand outside the door so it can’t fall.
• Use a 10mm socket, ratchet (3/8"), and socket extension (3"–6") to remove the three mirror nuts.
• Set the nuts aside (or replace if your new mirror includes new hardware).

Step 8: Remove the old mirror

• Feed the mirror harness (if equipped) through the door opening.
• Pull the mirror away from the door.
• Remove any old foam gasket stuck to the door using a plastic pry tool set (don’t scrape paint with metal).

Step 9: Install the new mirror

• Place the new foam gasket/seal on the mirror (or ensure it’s seated correctly if pre-installed).
• Feed the mirror wiring through the door opening and position the mirror on the door.
• Thread the three nuts on by hand first to avoid cross-threading.
• Use a 10mm socket and ratchet (3/8") to snug them evenly.
• Use a torque wrench and 10mm socket to finish tightening: Torque to 9 Nm (80 in-lb).

Step 10: Reconnect mirror wiring and reseal the vapor barrier

• Reconnect the mirror connector by hand until it clicks.
• Press the vapor barrier back into place. If needed, apply butyl tape for a full seal.

Step 11: Reinstall the door panel

• Reconnect all door panel electrical connectors by hand (window/lock switches, courtesy light if equipped).
• Hook the top of the door panel onto the window ledge and press down to seat it.
• Press around the edges to snap all clips back in.
• Reinstall screws using a 7mm socket and ratchet (3/8"), and any Torx fastener using a Torx T30 driver.

Step 12: Reinstall the sail panel

• Line up the clips and press it back on by hand until it snaps in place.

---

✅ After Repair

• If you disconnected the battery, reconnect it using a 10mm wrench and tighten securely.
• Key on and test mirror functions: power adjustment, heat/defrost (if equipped), and verify the glass is stable.
• Drive at neighborhood speed and listen for wind noise; if you hear it, recheck the foam gasket seating.
• After the next rain or car wash, confirm there’s no water leak into the door or cabin.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor, per mirror)

DIY Cost: $60-$250 (parts only, per mirror)

You Save: $190-$300+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
