🔧 Shock Absorbers - Replacement

Replacing the shocks on your F-150 helps restore ride control, reduce bouncing, and improve tire contact on rough roads. On this truck, the front and rear shock jobs are different, so the steps below cover both in one guide.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Support the truck with jack stands; never work under a vehicle held only by a jack.
• Keep hands clear of suspension parts when lowering or raising the axle.
• If a shock is rusted or seized, do not force it hard enough to bend the bracket.
• Rear shocks are easiest to remove with the axle safely supported.
• No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Ratchet
• 15mm socket
• 18mm socket
• 21mm socket
• 21mm wrench
• Breaker bar
• Torque wrench
• Penetrating oil
• Trim clip removal tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front shock absorbers - Replace in pairs - Qty: 2
• Rear shock absorbers - Replace in pairs - Qty: 2
• Shock mounting hardware kit - Qty: 1

---

📋 Before You Begin

• Park on level ground.
• Set the parking brake.
• Chock the wheels.
• Loosen stuck fasteners with penetrating oil before starting.
• Support the axle before removing rear shocks.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the truck

• Use the floor jack to raise the truck safely.
• Place jack stands under the frame and lower the truck onto them.
• For rear shock work, keep the axle lightly supported with the floor jack.

Step 2: Remove the front wheels if replacing front shocks

• Use the 21mm socket to remove the lug nuts.
• Set the wheels aside.
• Keep lug nuts in a safe tray.

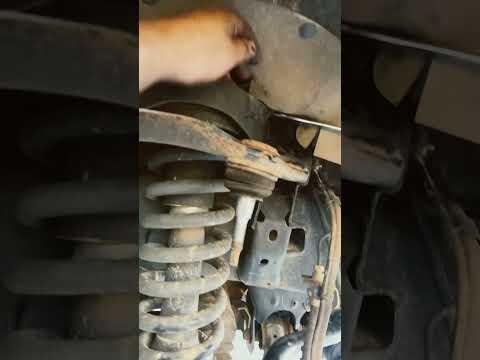

Step 3: Remove the front shock absorber

• Use the 15mm socket and 21mm wrench to remove the lower shock bolt and nut.
• Use the 15mm socket to remove the upper shock fastener.
• Pull the shock out of the suspension.
• If it is stuck, wiggle it gently by hand; do not pry on brake lines.
• Torque: Tighten the front shock fasteners to factory service specification.

Step 4: Install the new front shock absorber

• Position the new shock in place by hand.
• Start the upper fastener first using the 15mm socket.
• Install the lower bolt and nut using the 15mm socket and 21mm wrench.
• Tighten both fasteners evenly.
• Torque: Tighten to factory service specification.

Step 5: Remove the rear shock absorber

• Keep the rear axle supported with the floor jack.
• Use the 18mm socket and 21mm wrench to remove the lower rear shock bolt.
• Use the 18mm socket to remove the upper rear shock fastener.
• Lower or raise the axle slightly with the jack if needed to free the shock.
• Torque: Tighten the rear shock fasteners to factory service specification.

Step 6: Install the new rear shock absorber

• Slide the new shock into position.
• Install the upper fastener first using the 18mm socket.
• Install the lower bolt and nut using the 18mm socket and 21mm wrench.
• Snug both fasteners, then fully tighten with the axle at normal ride height if possible.
• Torque: Tighten to factory service specification.
• Final tightening at ride height helps bushings last longer.

Step 7: Reinstall wheels and lower the truck

• Reinstall the wheels.
• Use the 21mm socket to snug the lug nuts.
• Lower the truck to the ground.
• Torque the lug nuts to factory wheel-lug specification.

---

✅ After Repair

• Drive slowly over a rough road and listen for clunks or rattles.
• Check that the truck sits level and tracks straight.
• Recheck all shock fasteners after a short test drive.
• If you replaced only one side, expect uneven ride quality; replace shocks in pairs.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$1,000 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $320-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
