🔧 Forester - Serpentine Belt Replacement

Your Forester’s serpentine belt (also called the accessory drive belt) runs the alternator and A/C compressor. Replacing it is mostly about safely releasing the belt tensioner, swapping the belt, and confirming the routing is correct.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot parts can burn you.
• ⚠️ Keep fingers and tools away from pulleys; never start the engine while hands are near the belt.
• ⚠️ If you disconnect the battery: use a 10mm wrench and remove the negative (–) terminal first.
• ⚠️ The belt tensioner is spring-loaded; control the wrench firmly so it doesn’t snap back.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 14mm box wrench
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 10mm socket
• 3/8" drive extension (3"-6")
• Flat-blade screwdriver
• Trim clip removal tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine fully cool.
• Find the belt routing diagram (usually on an under-hood sticker). If it’s missing, take a clear photo of the current belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Make room for access

• Remove the plastic engine cover by pulling it straight up with both hands (it’s held by rubber grommets).
• If the front intake snorkel/duct blocks access, remove its clips using a trim clip removal tool (a small forked tool that pops plastic clips out) and loosen any clamp using a flat-blade screwdriver.
• Remove any small 10mm bolts you see holding the duct with a 10mm socket and 3/8" drive ratchet.

Step 2: Locate the belt tensioner

• Use a flashlight to find the spring-loaded automatic belt tensioner.
• Look for the tensioner’s wrench point (commonly a 14mm hex). Fit a 14mm socket on a 3/8" drive breaker bar (a longer handle for extra leverage).

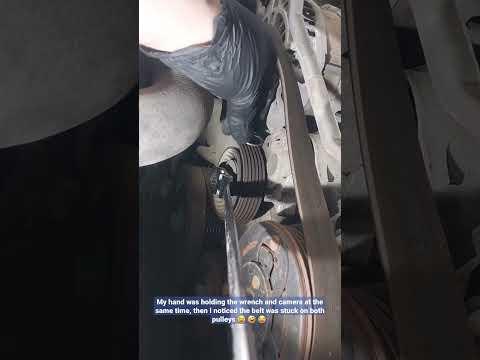

Step 3: Release belt tension

• Rotate the tensioner smoothly using the 3/8" drive breaker bar and 14mm socket to relieve tension.
• While holding the tensioner in the released position, slide the belt off the easiest-to-reach smooth pulley using your free hand.
• Slowly let the tensioner return to its resting position (don’t let it snap back).

Step 4: Remove the old belt

• Pull the belt out of the engine bay and compare it to the new belt (same length and rib count).
• Spin each pulley by hand and listen/feel for roughness or wobble. Rough pulleys can eat belts.

Step 5: Route the new belt

• Route the new belt around the pulleys using the under-hood routing diagram (or your photo).
• Make sure every ribbed section is seated fully in the grooved pulleys.
• Leave the easiest smooth pulley for last (this makes it simpler to slip on).

Step 6: Reapply tension and seat the belt

• Rotate the tensioner again using the 14mm socket and 3/8" drive breaker bar.
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Do a final visual check with the flashlight: the belt should be centered on every pulley and fully seated in every groove.

Step 7: Reinstall removed parts

• Reinstall the intake duct/snorkel using the 10mm socket, flat-blade screwdriver, and any clips with the trim clip removal tool.
• Reinstall the engine cover by lining it up and pressing it down firmly.
• Torque specs: Not applicable for belt-only replacement if no brackets/pulleys were removed.

---

✅ After Repair

• Start the engine and let it idle for 20-30 seconds while you watch the belt track (keep hands and clothing away).
• Listen for squealing or slapping noises; shut off immediately if the belt walks off a pulley.
• Turn A/C on and headlights on briefly to confirm the belt runs smoothly under load.
• Recheck belt seating once more after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$280 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $125-$220 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
