🔧 Trailblazer - Serpentine Belt Replacement

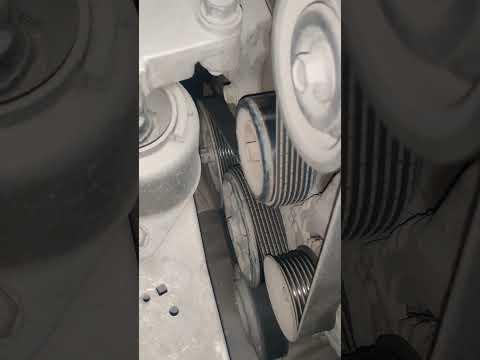

The serpentine belt drives accessories like the alternator and A/C compressor. Replacing it means releasing the belt tensioner, routing the new belt correctly, and verifying proper alignment on every pulley.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine; hot parts can burn you.
• ⚠️ Keep fingers clear of the belt and pulleys while releasing the tensioner.
• ⚠️ Support your Trailblazer with jack stands; never rely on a jack alone.
• ⚠️ If you must unplug any sensors/actuators, disconnect the negative battery cable first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive breaker bar
• Serpentine belt tool (specialty)
• 3/8" drive torque wrench (10-100 ft-lbs range)
• Trim clip removal tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and look for the belt routing diagram sticker (usually on the radiator support or underside of the hood).
• Please answer 2 quick questions so I can give you the exact routing + torque specs:
  • Can you upload a clear photo of your belt routing diagram sticker (or tell me if it’s missing)?
  • Are you replacing only the belt, or the belt plus the belt tensioner?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm routing and access path

• Use a flashlight to find the belt routing diagram sticker and compare it to what you see on the engine.
• If the sticker is missing, upload a photo of the front/side of the engine (belt area) so I can map the correct pulley routing for your Trailblazer.
• Wrong routing can cause immediate belt failure.

Step 2: I’ll provide the exact removal/install steps

• Once I have the routing diagram photo (or confirmation it’s missing) and whether you’re doing the tensioner too, I’ll give you the complete procedure with the exact access steps and the correct torque specs for any bolts you loosen/remove.

---

✅ After Repair

• Start the engine and watch the belt for 15-20 seconds to confirm it runs centered on every pulley.
• Turn A/C on and off once and listen for squeal or chirping.
• Recheck belt alignment again after a short 5-minute drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
