🔧 Equinox - Serpentine Belt Replacement

The serpentine belt on your Equinox drives key accessories like the alternator and A/C compressor. When it wears or cracks, it should be replaced to avoid a sudden breakdown. You’ll be releasing the belt tensioner, removing the old belt, then routing and installing a new belt.

Difficulty Level: Beginner | Estimated Time: 1-1.5 hours

---

⚠️ Safety & Precautions

• 🛑 Always work with the engine off, key removed, and the engine completely cool.
• 🧤 Keep fingers, hair, and clothing away from pulleys and belt areas at all times.
• 🔌 For extra safety, disconnect the negative battery cable using a 10mm wrench so the engine cannot be started accidentally.
• 📸 Take a clear photo of the existing belt routing before removal in case the under-hood diagram is missing or hard to read.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Serpentine belt tool (long-handle with 15mm socket head) (specialty)
• 🧰 15mm socket
• 🧰 3/8" drive ratchet
• 🧰 3/8" drive extension (6")
• 🧰 10mm wrench
• 🧰 Flathead screwdriver (medium)
• 🧰 Mechanic’s gloves
• 🧰 Safety glasses
• 🧰 Work light or flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Serpentine drive belt (accessory drive belt) for 1.5L - Qty: 1
• 🔩 Serpentine belt tensioner assembly - Qty: 1 (optional but smart if old/high mileage)
• 🔩 Belt dressing - Qty: 1 (only for noise diagnosis, not usually needed)
• 🔩 Dielectric grease (for battery terminal, optional) - Qty: 1

---

📋 Before You Begin

• 🚗 Park the Equinox on level ground, shift to PARK, and set the parking brake.
• 🔌 If you choose, disconnect the negative battery terminal with a 10mm wrench and move the cable aside so it cannot spring back.
• 🧊 Let the engine cool completely; hot engine parts can burn you.
• 📸 Locate the belt routing diagram under the hood (usually on a sticker near the radiator support). Take a photo and keep it visible while you work.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Gain visual access to the belt

• Open the hood and support it securely.
• Use the work light to look down the passenger side of the engine where the belt runs across multiple pulleys.
• If any plastic cover or intake duct is slightly in the way, gently move it aside or loosen clips with a flathead screwdriver just enough to improve your view. Don’t force plastic parts

Step 2: Identify the tensioner and belt routing

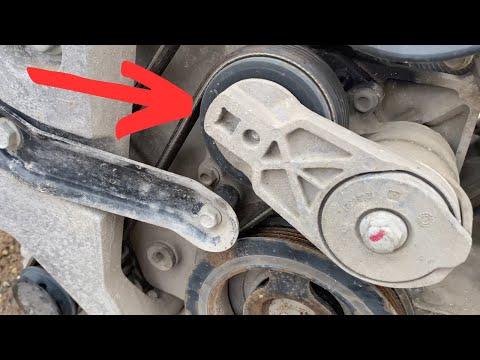

• Use the work light to find the belt tensioner: it’s a spring-loaded pulley mounted on an arm that can pivot.
• On your Equinox, the tensioner pulley has a center bolt head that fits a 15mm socket.
• Compare what you see to the under-hood routing diagram or your photo so you know exactly how the belt snakes around each pulley.

Step 3: Prepare to release tension

• Install the 15mm socket onto the serpentine belt tool (or onto a 3/8" ratchet with extension if space allows).
• Position the socket on the center bolt of the tensioner pulley.
• Plan your movement: you will rotate the tensioner arm slowly to relieve belt tension. Always keep a firm grip

Step 4: Release belt tension and remove belt

• Using the serpentine belt tool with 15mm socket, rotate the tensioner in the direction that loosens the belt (usually clockwise when viewed from the front on this engine).
• While holding the tensioner in the released position with one hand, use your other hand (wearing mechanic’s gloves) to slide the belt off the smoothest, easiest-to-reach pulley (often an idler or alternator pulley).
• Slowly let the tensioner return to its rest position; do not let it snap back.
• Now pull the belt out from around the remaining pulleys and remove it from the engine bay.

Step 5: Inspect pulleys and tensioner

• Spin each accessible pulley by hand (engine off!) and feel for roughness, grinding, or looseness.
• Check the tensioner arm: gently move it by hand. It should feel springy and return smoothly, not jerky.
• If any pulley feels bad or the tensioner is weak or noisy, plan to replace that component before installing the new belt.

Step 6: Route the new belt (dry run)

• Lay the new belt next to the old belt to confirm similar length and rib count.
• Using your routing diagram or photo, start placing the new belt around the crankshaft pulley first (bottom pulley), then around the other ribbed pulleys, keeping the last section for an easy-access smooth pulley near the top or side.
• Make sure all belt ribs sit squarely in the pulley grooves; no ribs should be riding on the edges.

Step 7: Install the belt with the tensioner released

• Reinstall the serpentine belt tool with 15mm socket on the tensioner pulley bolt.
• Rotate the tensioner again to the “loose” position, just like in Step 4.
• With the tensioner held, slip the final section of the belt over the last pulley (usually a smooth idler or alternator pulley) using your gloved hand.
• Double-check that the belt is seated correctly on every pulley before slowly letting the tensioner return to apply tension.

Step 8: Final alignment check

• Use the work light and visually inspect the belt from above and from any side angles you can reach.
• Confirm that:
  • All ribs are fully in the grooves.
  • The belt is centered on each pulley, not hanging off an edge.
  • The belt follows the exact same path as the routing diagram.
• If anything looks off, release the tensioner again with the serpentine belt tool and correct the routing.

Step 9: Reconnect battery and clean up

• If you disconnected it earlier, reconnect the negative battery terminal using the 10mm wrench. Torque to 5 Nm (44 in-lbs) (snug, not overly tight).
• Make sure any plastic covers or ducts you moved are back in place and any clips pushed back in by hand or with the flathead screwdriver.
• Remove tools and the old belt from the engine bay.

---

✅ After Repair

• 🚗 Start the engine and let it idle while you watch the belt. It should run smoothly with no wobble or jumping between pulleys.
• 👂 Listen for squealing, chirping, or grinding noises from the belt area. If you hear any, shut off the engine and re-check belt alignment and pulley condition.
• 🔁 Let the engine reach normal operating temperature, then shut it off and do a quick recheck of belt seating once more.
• 📅 Recheck the belt visually after a few days of driving to confirm everything is still properly seated.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$350 (parts + labor)

DIY Cost: $30-$80 (parts only)

You Save: $120-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.0 hours.

---
