🔧 Ascent - Serpentine Belt Replacement

On your Ascent, the “serpentine belt” (accessory drive belt) runs the alternator and other front-engine accessories. Replacing it is mostly about safely releasing the spring-loaded tensioner, swapping the belt, and confirming the belt is seated correctly in every pulley groove.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot parts can burn you.
• ⚠️ Keep hands/clothes clear of pulleys; never work with engine running.
• ⚠️ The belt tensioner is spring-loaded; hold your tool firmly and release slowly.
• ⚠️ If you raise the front, support the Ascent with jack stands—never rely on a jack.
• 🔋 Battery disconnect is not required, but remove the key and keep it away from the vehicle.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3/8" drive ratchet
• 3/8" drive breaker bar (18"-24")
• 14mm socket
• 14mm combination wrench
• Torque wrench (10-80 ft-lbs)
• Trim clip remover
• Flathead screwdriver
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Serpentine belt tensioner assembly - Qty: 1 (optional if noisy/weak)
• Idler pulley - Qty: 1 (optional if noisy/rough)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Install wheel chocks behind the rear wheels.
• If access from above is tight, raise the front using a floor jack and support with jack stands.
• Take a quick photo of the belt routing in the engine bay (helps a lot on reassembly).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open access to the belt

• Open the hood and remove any upper plastic covers blocking access using a trim clip remover and flathead screwdriver.
• If needed, remove the lower splash shield/undercover fasteners with a trim clip remover to see the crank pulley area better.

Step 2: Locate the belt tensioner

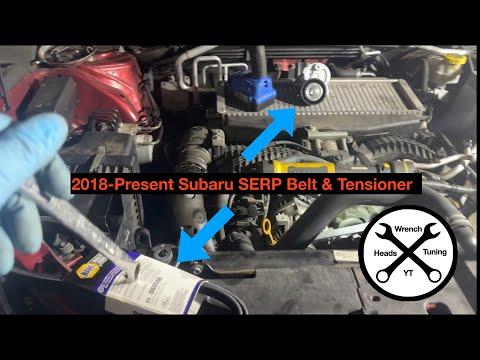

• Find the spring-loaded belt tensioner (it will have a pulley pressing on the belt).
• A “tensioner” keeps belt tight automatically using an internal spring.

Step 3: Relieve belt tension

• Install a 14mm socket on a 3/8" breaker bar (or 3/8" ratchet) onto the tensioner’s hex boss/bolt head.
• Rotate the tensioner to unload the belt tension. Use smooth, steady pressure.
• While holding the tensioner rotated, slide the belt off the easiest-to-reach smooth pulley using your free hand.
• Slowly let the tensioner return to its resting position (do not let it snap back).

Step 4: Remove the old belt

• Pull the belt out from around all pulleys by hand.
• Spin each pulley by hand and listen/feel for roughness or grinding.
• If a pulley feels rough or wobbly, plan to replace the tensioner assembly and/or idler pulley.

Step 5: Route the new belt

• Compare the new belt to the old belt for matching length and rib count.
• Route the belt around the pulleys following your photo (leave the easiest pulley for last).
• Make sure the belt ribs sit perfectly in the grooved pulleys; the belt should not ride on pulley edges.

Step 6: Apply tension and seat the belt

• Use the 14mm socket and 3/8" breaker bar to rotate the tensioner again.
• Slip the belt fully onto the last pulley.
• Slowly release the tensioner so it tensions the belt.
• Visually check every pulley: the belt must be centered and fully seated in grooves.

Step 7: Reinstall covers

• Reinstall any splash shield/undercover pieces using a trim clip remover and flathead screwdriver.
• Reinstall any upper plastic covers the same way.
• If any small bolts were removed for shields, tighten with a torque wrench and 10mm/12mm/14mm socket as equipped to Torque to 7-9 Nm (62-80 in-lbs) unless a fastener is clearly larger.

---

✅ After Repair

• Start the engine and watch the belt for 15-30 seconds; it should run smoothly with no wobble.
• Listen for chirping/squealing. If you hear noise, shut off and re-check belt seating.
• Test electrical load (headlights, rear defrost) to confirm the alternator is being driven properly.
• Recheck belt alignment after a short 5-10 minute drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.0 hours.

---
