🔧 Escape - Serpentine Belt Replacement

You’ll be replacing the serpentine belt that drives the alternator, A/C compressor, and other accessories on your Escape. This belt wears over time and can crack, squeal, or even break, which can leave you stranded.

Difficulty Level: Intermediate | Estimated Time: 1.5–2 hours

---

⚠️ Safety & Precautions

• ⚠️ Always work with the engine off, key removed, and the ignition in the OFF position. Do not try to move the belt with the engine running.
• ⚠️ Let the engine cool completely before starting. Hot pulleys and engine parts can burn you.
• ⚠️ You will be lifting the front of your Escape. Use a floor jack and always support the vehicle on jack stands; never rely on the jack alone.
• ⚠️ Keep fingers and tools clear of the belt path while releasing the belt tensioner. The spring is strong and can snap back quickly.
• ⚠️ Set the parking brake and chock (block) the rear wheels so the vehicle cannot roll.
• For extra safety, you may disconnect the battery negative cable so the engine cannot be started accidentally.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔧 Floor jack (rated 3-ton minimum)
• 🔧 Jack stands (rated 3-ton minimum, set of 2)
• 🔧 Wheel chocks
• 🔧 3/8" drive ratchet
• 🔧 3/8" drive torque wrench (10–150 ft-lbs range)
• 🔧 19mm socket
• 🔧 7mm socket
• 🔧 8mm socket
• 🔧 10mm socket
• 🔧 Short 3/8" drive extension (2–3")
• 🔧 Serpentine belt tool (flat low-profile bar, 3/8" drive) (specialty)
• 🔧 Trim clip removal pliers (specialty)
• 🔧 Flathead screwdriver (medium)
• 🔧 Work light or flashlight
• 🔧 Mechanic’s gloves
• 🔧 Safety glasses

Serpentine belt tool is a long, thin bar to reach tight spaces.

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Serpentine drive belt (2.0L EcoBoost) - Qty: 1
• 🔩 Belt tensioner assembly (optional but recommended if noisy or weak) - Qty: 1
• 🔩 Idler pulley (optional, inspect and replace if rough) - Qty: 1–2
• 🔩 Plastic splash shield clips (front right wheel well) - Qty: 4–6

---

📋 Before You Begin

• Park your Escape on a flat, level surface in a safe area. Set the parking brake and place wheel chocks behind both rear wheels.
• Turn the ignition fully OFF and remove the key/fob from the vehicle.
• Open the hood and locate the accessory belt routing diagram sticker. It is usually on the radiator support or underhood area. If there is no sticker, take clear photos of the belt routing from different angles before removal.
• If you want extra safety, disconnect the battery negative terminal using a 10mm socket.
• Gather all tools and parts so you don’t have to leave the vehicle while it is on jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the front right side and remove the wheel

• Loosen the front right (passenger side) wheel lug nuts one turn using a 19mm socket and 3/8" drive ratchet while the vehicle is still on the ground.
• Place the floor jack under the front right jacking point (pinch weld behind the wheel) and raise the vehicle until the wheel is off the ground.
• Set a jack stand under the pinch weld or specified support point and slowly lower the vehicle onto the stand.
• Remove the lug nuts completely with the 19mm socket and take off the wheel.
• After the repair, wheel lug nuts should be tightened to Torque to 135 Nm (100 ft-lbs).

Step 2: Remove the right front wheel well splash shield

• Locate the plastic clips and small screws holding the inner splash shield in place around the crank pulley area.
• Use trim clip removal pliers or a flathead screwdriver to gently pry out the plastic clips. Work slowly to avoid breaking clips.
• Use a 7mm socket or 8mm socket and 3/8" drive ratchet to remove any small screws or bolts along the edge of the splash shield.
• Pull the splash shield out and set it aside. This will open up access to the belt and pulleys on the side of the engine.

Step 3: Identify the belt path and components

• From the wheel well and from above with a flashlight, look at how the belt snakes around each pulley: crankshaft (bottom), A/C compressor, alternator, idler pulleys, and belt tensioner.
• Compare what you see with the underhood belt routing diagram. If there is no sticker, take an extra-clear photo now before you move anything.

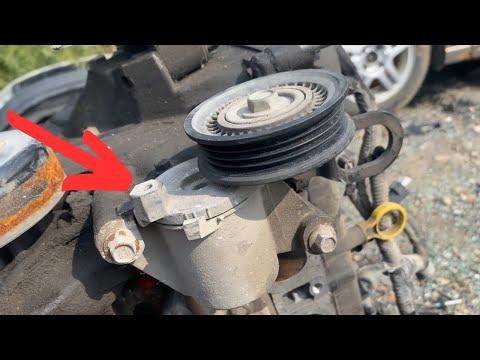

• Locate the belt tensioner: on the 2.0L, it is a spring-loaded pulley assembly with a square hole for a 3/8" drive ratchet or a bolt head for the serpentine belt tool.

Step 4: Release belt tension

• From the wheel well, fit the serpentine belt tool (specialty) or a 3/8" drive ratchet with short extension into the square drive or onto the tensioner bolt head.
• Slowly rotate the tensioner in the direction indicated by the belt sticker (usually clockwise when viewed from the front of the vehicle) to relieve tension on the belt. Go slowly and keep a firm grip.
• While holding the tensioner in the released position, slide the belt off one easy-to-reach smooth pulley (often an idler or alternator pulley).
• Gently let the tensioner return to its resting position under spring pressure.

Step 5: Remove the old belt

• From the wheel well and from above, work the belt off each pulley by hand. No tools are needed here; just slide it off the grooves.
• Pay attention to tight spots around engine mounts or brackets; you may need to twist the belt slightly to get it out.
• Once completely free, remove the belt from the engine bay.
• Compare the old belt to the new one on the ground: length, width, and number of ribs (grooves) should match.

Step 6: Inspect pulleys, tensioner, and idlers

• Spin each accessible pulley (idler pulleys and tensioner pulley) by hand.
• If you feel roughness, grinding, wobble, or hear noise, plan to replace that pulley or the complete tensioner assembly.
• Check that the tensioner moves smoothly through its travel when you move it again with the serpentine belt tool. If it sticks or feels weak, replacement is recommended.

Step 7: Route the new belt around the pulleys

• Using the routing diagram or your photos, begin placing the new belt around the lower pulleys from the wheel well: typically the crankshaft pulley and A/C compressor.
• Make sure the belt ribs sit fully in the grooves of each ribbed pulley as you go. Use your flashlight to confirm alignment.
• Route the belt over/under each pulley according to the diagram, leaving the easiest upper pulley (often an idler or alternator) for last so you can slip the belt on after releasing the tensioner.
• Double-check that every ribbed pulley has the ribs in the grooves and every smooth pulley contacts the smooth back of the belt.

Step 8: Set the belt with the tensioner

• Again, place the serpentine belt tool or 3/8" drive ratchet on the tensioner.
• Rotate the tensioner to the release position (same direction as before) to create slack in the belt.
• With your other hand, slide the belt onto the last pulley (usually a smooth idler or alternator pulley). Ensure it is centered on the pulley.
• Slowly let the tensioner return to its resting position, applying tension to the belt. Do not let it snap back.
• Visually inspect every pulley again (from above and from the wheel well) to confirm the belt is seated properly and not one rib off on any pulley.

Step 9: Reinstall the splash shield and wheel

• Position the wheel well splash shield back in place.
• Install the screws with a 7mm socket or 8mm socket and 3/8" drive ratchet. Tighten them snug; these are small fasteners and do not require heavy torque.
• Push the plastic clips back into their holes by hand until they snap into place.
• Reinstall the wheel and hand-thread the lug nuts.
• Raise the vehicle slightly with the floor jack, remove the jack stand, then lower the vehicle to the ground.
• Tighten the lug nuts in a star pattern using the 19mm socket and torque wrench to Torque to 135 Nm (100 ft-lbs).

Step 10: Final checks under the hood

• From the top of the engine bay, do one more check of the belt alignment on every visible pulley using your flashlight.
• If you disconnected the battery, reconnect the negative cable using a 10mm socket and tighten it snugly. Do not overtighten.
• Make sure all tools are removed from the engine bay and wheel well.
• Close the hood securely.

---

✅ After Repair

• Start the engine and let it idle while you watch and listen from the side (keep hands and clothing away from the belt). The belt should run smoothly with no wobble or jumping.
• Listen for any squealing, chirping, or grinding. If you hear noise, shut the engine off and recheck belt routing and pulley condition.
• Turn on the A/C and headlights to put a load on the belt-driven accessories and listen again.
• After a short test drive around the block, recheck belt alignment and lug nut torque.

---

💰 DIY vs Shop Cost

Shop Cost: $250–$400 (parts + labor)

DIY Cost: $35–$90 (parts only, depending on brand and whether you replace tensioner/idlers)

You Save: $160–$300 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
