🔧 Altima - Serpentine Belt Replacement

Your Altima’s serpentine belt drives the alternator and A/C compressor. Replacing it means relieving the automatic belt tensioner, swapping the belt, then verifying the belt is seated correctly on every pulley.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands clear of pulleys.
• ⚠️ Support the car with jack stands before going under or removing a wheel.
• ⚠️ Keep the ignition OFF and keys away so nobody can start it.
• On your Altima, access is tight—use steady pressure on the tensioner, not jerky force.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 3/8" drive ratchet
• 10mm socket
• Trim clip removal tool
• 14mm socket
• 15mm socket
• Mechanic gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Plastic push clips (splash shield/liner) - Qty: 2-6

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Open the hood and locate the belt routing diagram on the radiator support/under-hood label. If it’s missing, take a clear photo of the current belt routing before removal.
• Loosen the right-front wheel lug nuts slightly before lifting the car.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the right-front corner and remove the wheel

• Use a 21mm socket with a 1/2" drive breaker bar to loosen the lug nuts 1/2 turn.
• Lift with the floor jack at the approved front jack point, then set the vehicle on jack stands.
• Remove the lug nuts with the 21mm socket and take the wheel off.

Step 2: Remove the right-front splash shield/liner access

• Use the trim clip removal tool to pop out the plastic push clips.
• If equipped with small bolts, remove them using a 10mm socket and 3/8" drive ratchet.
• Pull the liner back enough to clearly see the belt, crank pulley, and belt tensioner.
• Tip: Save clips in a cup.

Step 3: Relieve belt tension (automatic tensioner)

• Locate the belt tensioner (spring-loaded arm with a smooth pulley).
• Place a 14mm socket on the tensioner’s hex boss. If it doesn’t fit, switch to a 15mm socket.
• Turn the breaker bar/ratchet steadily to move the tensioner and slacken the belt.
• Tip: Keep fingers out of pinch points.

Step 4: Remove the old belt

• While holding the tensioner released, slide the belt off the nearest easy pulley (often the alternator or an idler).
• Slowly let the tensioner return to rest—do not let it snap back.
• Remove the belt from the remaining pulleys and pull it out through the wheel well area.

Step 5: Install and route the new belt

• Compare the new belt to the old one (length and rib count should match).
• Route the belt following the under-hood routing diagram (ribbed side on ribbed pulleys, smooth side on smooth pulleys).
• Leave the easiest-to-reach pulley for last (the one you’ll slip the belt onto when you release the tensioner).

Step 6: Re-apply tension and seat the belt

• Use the 14mm socket or 15mm socket to rotate the tensioner again.
• Slip the belt fully onto the last pulley, then slowly release the tensioner.

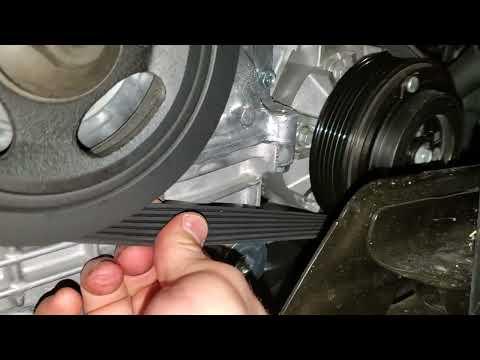

• Visually inspect every pulley: the belt ribs must sit centered in the grooves, not hanging off an edge.
• Tip: Misalignment shreds belts fast.

Step 7: Reinstall splash shield/liner and wheel

• Reposition the liner and reinstall clips using the trim clip removal tool as needed.
• Reinstall any bolts using the 10mm socket and 3/8" drive ratchet.
• Put the wheel back on and hand-thread lug nuts.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a 21mm socket: Torque to 113 Nm (83 ft-lbs).

---

✅ After Repair

• Start the engine and watch the belt for 15–30 seconds. It should run smoothly with no wobble.
• Listen for squeal or slapping noises. If you hear it, shut off and re-check belt seating on every pulley.
• Turn the A/C on and verify no new noise appears.
• Recheck the wheel lug torque after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$85 (parts only)

You Save: $145-$265 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
