🔧 Tiguan - Serpentine Belt Replacement

The serpentine belt drives accessories like the alternator and A/C. Replacing it involves releasing the belt tensioner (a spring-loaded pulley arm) and routing the new belt correctly on all pulleys.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot pulleys and coolant parts can burn you.
• ⚠️ Support your Tiguan with jack stands; never rely on a floor jack alone.
• ⚠️ Keep fingers/tools clear of the tensioner’s pinch points (it snaps back hard).
• ⚠️ If you remove the passenger-front wheel, chock the rear wheels and keep the transmission in Park.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• 1/2" drive ratchet
• 1/2" drive breaker bar
• 16mm combination wrench
• Torx T25 screwdriver
• Torx T30 screwdriver
• Trim clip removal tool
• Flashlight
• Paint marker
• Serpentine belt routing diagram (under-hood label or service printout)
• Stretch belt installer tool (specialty)
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• A/C stretch belt (if equipped) - Qty: 1
• Lower splash shield fastener assortment (optional) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• 📸 Take a clear photo of the belt routing before removal; this avoids misrouting.
• 🧼 If the undertray is muddy/oily, wipe around fasteners first so tools seat fully.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm belt setup (1 belt vs 2 belts)

• Use a flashlight to look at the front of the engine (passenger side wheel well area).
• If you see one wide ribbed belt driving everything, follow the “Single-belt system” steps below.
• If you see a second small belt down low just for the A/C compressor (often a “stretch belt” with no tensioner), follow both the “A/C stretch belt” steps and the “Single-belt system” steps.

Step 2: Raise the front-right corner for access

• Use wheel chocks at the rear wheels.
• Use a 17mm socket with a 1/2" drive breaker bar to slightly loosen the passenger-front wheel bolts (about 1/4 turn).
• Lift with a floor jack (rated 3-ton minimum) at the correct front jack point.
• Support with jack stands (rated 3-ton minimum).
• Remove the wheel bolts using the 17mm socket and 1/2" drive ratchet.
• Reinstall note: Torque to 140 Nm (103 ft-lbs).

Step 3: Remove the lower splash shield and access panel

• Use a Torx T25 screwdriver and Torx T30 screwdriver to remove the undertray/splash shield screws.
• Use a trim clip removal tool for any plastic push-clips.
• Set fasteners aside in a small pile so you don’t lose them.

Step 4: Make a routing reference

• Use your serpentine belt routing diagram (under-hood label or service printout) and compare it to what you see.
• Use a paint marker to mark the belt’s “top” direction on the old belt (helps if you need to reinstall temporarily).

Step 5 (Single-belt system): Release tension and remove the belt

• Locate the belt tensioner (spring-loaded arm with a pulley). A “tensioner” keeps the belt tight automatically.
• Place a 16mm combination wrench on the tensioner’s hex.
• Pull the wrench smoothly to rotate the tensioner and relieve belt tension.
• While holding tension off, slip the belt off the easiest-to-reach smooth pulley first.
• Slowly release the tensioner back into place. Don’t let it snap back.

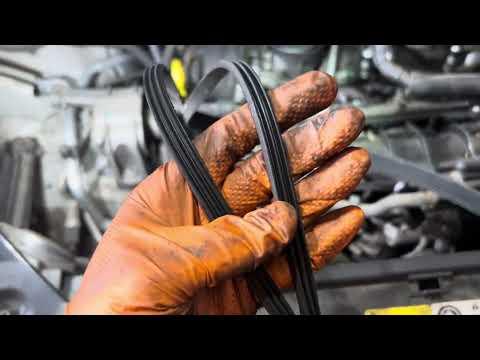

• Remove the belt from the remaining pulleys by hand.

Step 6 (A/C stretch belt, if equipped): Remove the A/C belt

• Inspect the A/C belt area with a flashlight to confirm there is no tensioner.
• Use a stretch belt installer tool (specialty) to walk the belt off the pulley as you rotate the pulley by hand.
• If the belt is being reused (not recommended), use a paint marker to mark rotation direction before removal.

Step 7: Inspect pulleys and tensioner

• Spin each pulley by hand and listen/feel for grinding or wobble.
• Check the tensioner pulley surface for cracks or roughness.
• If any pulley is noisy or wobbly, stop and address that before installing the new belt.

Step 8 (Single-belt system): Install the new serpentine belt

• Route the new belt following your serpentine belt routing diagram (under-hood label or service printout).
• Make sure the ribbed side sits fully in the ribbed pulleys (no ribs hanging off the edge).
• Use the 16mm combination wrench to rotate the tensioner again.
• Slip the belt onto the final pulley, then slowly release the tensioner.
• Re-check every pulley groove alignment with a flashlight.

Step 9 (A/C stretch belt, if equipped): Install the A/C belt

• Position the new belt onto the A/C compressor pulley by hand.
• Use the stretch belt installer tool (specialty) to guide the belt onto the crank pulley while rotating the pulley by hand until it fully seats.
• Use a flashlight to confirm the belt is fully seated and not twisted.

Step 10: Reinstall splash shield and wheel

• Reinstall the undertray using the Torx T25 screwdriver and Torx T30 screwdriver.
• Reinstall any clips using the trim clip removal tool (press them in straight).
• Reinstall the wheel using the 17mm socket and 1/2" drive ratchet.
• Lower the vehicle off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Final-tighten wheel bolts: Torque to 140 Nm (103 ft-lbs).

---

✅ After Repair

• ✅ Start the engine and watch the belt for 15–30 seconds (keep hands clear).
• ✅ Listen for chirping/squealing; that usually means misrouting or a belt not seated in the grooves.
• ✅ Turn A/C on and verify the A/C runs normally (if equipped with a separate A/C belt).
• ✅ Recheck for any missing undertray fasteners after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
