🔧 Passat - Serpentine Belt Replacement

The serpentine belt (drive belt) spins key accessories like the alternator and A/C compressor. If it’s cracked, squealing, or glazed, replacing it prevents a roadside breakdown and charging problems.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine; hot pulleys can burn you.
• ⚠️ Support the car with jack stands before going into the wheel well.
• ⚠️ Keep fingers clear of the belt tensioner; it’s spring-loaded and snaps back fast.
• ⚠️ Do not start the engine with hands/tools near the belt path.
• ⚠️ Battery disconnect is not required, but remove the key/fob from the car so it can’t be started.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 17mm socket
• Breaker bar (18-24")
• 16mm socket
• Torque wrench (20-200 Nm range)
• Torx T25 driver
• Trim clip tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (6-rib, accessory drive belt) - Qty: 1
• Fender liner clips/screws (optional, if any break) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and use a flashlight to locate the belt area; take a clear photo of the belt routing. Your photo is your routing diagram.
• Have your new belt unboxed and ready so the car isn’t sitting on stands longer than needed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front-right corner

• Use wheel chocks on the rear wheels.
• Use a floor jack (rated 2-ton minimum) to lift the front-right jacking point.
• Place jack stands (rated 2-ton minimum) under a safe support point and lower the car onto the stands.

Step 2: Remove the front-right wheel

• Use a 17mm socket to remove the wheel bolts and remove the wheel.
• When reinstalling later: Torque to 120 Nm (89 ft-lbs) using a torque wrench.

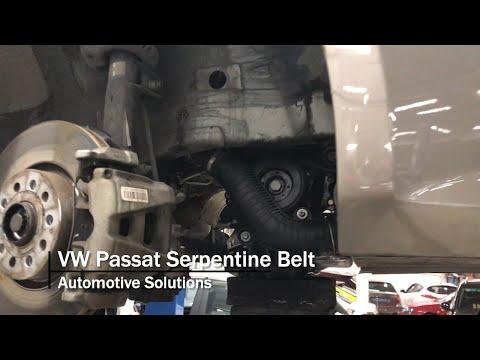

Step 3: Remove the front-right fender liner access

• Use a Torx T25 driver to remove the fender liner screws along the rear/inner edge of the wheel well where it blocks access to the belt area.
• If there are plastic push-clips, pop them out with a trim clip tool (a trim clip tool is a forked pry tool that removes plastic clips without breaking them).
• Peel the liner back enough to see the belt, tensioner, and pulleys.

Step 4: Relieve belt tension

• Install a 16mm socket on a breaker bar (18-24") and place it on the belt tensioner’s hex.
• Rotate the tensioner smoothly to release tension (it will feel strong because it’s spring-loaded).
• With tension held off, slide the belt off the easiest-to-reach smooth pulley (usually an idler) with your free hand.
• Slowly let the tensioner return to rest. Don’t let it snap back.

Step 5: Remove the old belt and inspect pulleys

• Pull the belt out through the wheel well opening.
• Spin each pulley by hand and check for wobble, grinding, or roughness.
• Look at the tensioner arm movement while you rotate it again with the breaker bar; it should move smoothly without binding.

Step 6: Route the new belt

• Compare the new belt to the old belt length and rib count before installing.
• Route the belt around the pulleys using your photo as the guide.
• Make sure the belt ribs sit fully in the grooved pulleys and the belt sits centered on any smooth pulleys.

Step 7: Apply tension and seat the belt

• Use the 16mm socket and breaker bar to rotate the tensioner and slip the belt over the last pulley.
• Slowly release the tensioner back onto the belt.
• Double-check alignment: every rib must be in its groove, and the belt must not ride off an edge.

Step 8: Reassemble the wheel well and reinstall the wheel

• Reposition the liner and reinstall screws using the Torx T25 driver.
• Reinstall any clips using the trim clip tool to press them back in straight.
• Reinstall the wheel using the 17mm socket.
• Lower the car and final-tighten wheel bolts with a torque wrench: Torque to 120 Nm (89 ft-lbs).

---

✅ After Repair

• Start the engine and watch the belt for 20-30 seconds: it should run straight with no wobble.
• Listen for chirping/squealing; if you hear it, shut off and re-check belt seating on every pulley.
• Turn A/C on and verify no abnormal noises under load.
• After a short test drive, recheck the belt position with a flashlight.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$280 (parts + labor)

DIY Cost: $30-$70 (parts only)

You Save: $120-$210 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
