🔧 Avalon - Serpentine Belt Replacement

The serpentine belt (the single long belt on the front of the engine) drives accessories like the alternator and A/C. On your Avalon, replacement is mostly about safely relieving the spring-loaded belt tensioner, swapping the belt, then verifying the belt is seated in every pulley groove.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands clear of hot exhaust and radiator fans.
• ⚠️ Keep fingers away from the belt path while releasing the tensioner (it’s spring-loaded and snaps back).
• ⚠️ If you lift the car, support it with jack stands; never rely on a floor jack alone.
• ⚠️ No battery disconnect is required for this job, but keep keys away so no one starts the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• Breaker bar (1/2" drive)
• 10mm socket
• Ratchet (3/8" drive)
• 6" extension (3/8" drive)
• Trim clip removal tool
• 14mm socket
• 19mm socket
• Flashlight
• Gloves
• Safety glasses
• Torque wrench (10-150 ft-lb range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Plastic splash shield clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Find the belt routing diagram (usually on a sticker under the hood). If it’s missing, take a clear photo of the belt path before removal.
• Plan your access: you can sometimes do it from the top, but the easiest access is usually through the right-front wheel well after removing the splash shield.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the right-front wheel (for best access)

• Use a 21mm socket and breaker bar to loosen the lug nuts 1 turn while the car is on the ground.
• Lift the right-front corner using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lug nuts with a 21mm socket and remove the wheel.

Step 2: Remove the right-front splash shield (inner fender liner area)

• Use a trim clip removal tool to pop out the plastic clips.
• Use a 10mm socket, ratchet (3/8" drive), and 6" extension (3/8" drive) to remove any 10mm bolts holding the shield.
• Pull the splash shield back enough to clearly see the belt and pulleys. Use a flashlight.

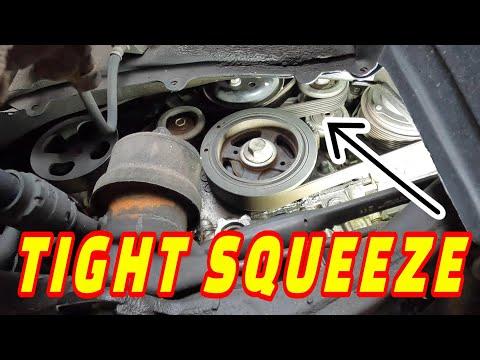

Step 3: Locate the belt tensioner and choose the correct socket

• The belt tensioner is the spring-loaded arm that keeps the belt tight.
• On the tensioner, you’ll turn either the hex on the arm or the tensioner pulley bolt head. Use the 14mm socket or 19mm socket—choose the one that fits snugly.
• Snug fit prevents rounding the bolt.

Step 4: Relieve belt tension

• Place the correct socket (14mm socket or 19mm socket) on the tensioner drive point using a breaker bar (1/2" drive).
• Slowly rotate the tensioner to relieve belt tension. Hold it steady—this spring is strong.
• With your other hand, slip the belt off the easiest-to-reach smooth pulley (often an idler pulley). Use gloves.

Step 5: Remove the old belt and inspect pulleys

• Release the tensioner slowly back to its resting position (do not let it snap).
• Remove the belt from the remaining pulleys and take it out through the wheel well.
• Spin each accessible pulley by hand and listen/feel for grinding or wobble. Use a flashlight.

Step 6: Route the new belt

• Match the new belt length/rib count to the old belt before installing.
• Route the belt following the under-hood routing diagram (or your photo).
• Make sure the ribbed side sits fully in the grooves of every ribbed pulley (misalignment will shred the belt).

Step 7: Apply tension and seat the belt

• Rotate the tensioner again using the breaker bar (1/2" drive) and the correct socket (14mm socket or 19mm socket).
• Slip the belt over the last pulley, then slowly release the tensioner.
• Visually check the belt is centered on every pulley. Use a flashlight.

Step 8: Reinstall splash shield and wheel

• Reposition the splash shield and reinstall bolts using a 10mm socket, ratchet (3/8" drive), and 6" extension (3/8" drive).
• Reinstall all clips using a trim clip removal tool as needed.
• Install the wheel and hand-start the lug nuts.
• Lower the car, then tighten lug nuts using a torque wrench and 21mm socket in a star pattern: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Start the engine and let it idle while you watch the belt for 15–30 seconds (stand clear of moving parts).
• Listen for squealing, chirping, or slapping sounds; shut off immediately if you hear anything abnormal.
• Recheck belt seating on the pulleys with a flashlight after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$85 (parts only)

You Save: $95-$315 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
