🔧 Charger - Serpentine Belt Replacement

The serpentine belt drives key accessories like the alternator, water pump, and A/C. Replacing it is mainly about safely releasing the belt tensioner, routing the new belt correctly, and confirming it sits fully in every pulley groove.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely; hot pulleys and coolant parts can burn you.
• ⚠️ Keep fingers/tools clear of the electric cooling fan; it can turn on unexpectedly.
• ⚠️ If you disconnect the battery, remove the negative terminal first and keep it from springing back.
• ⚠️ Never start the engine with tools near the belt drive.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Flashlight
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 15mm socket
• Trim clip removal tool
• Serpentine belt tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (6-rib, correct length for your A/C configuration) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• Consider disconnecting the battery negative cable to prevent the cooling fan from running while your hands are near the belt.
• Find the belt routing diagram (often on the radiator support/under-hood label). If it’s missing, take a clear photo of the current belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Create access to the front of the engine

• Remove the plastic engine cover by lifting it straight up with your hands (it’s held by grommets).
• If the upper air snorkel/duct blocks your view, remove its push-pins using a trim clip removal tool, then lift it out.
• Use a flashlight to locate the belt tensioner and confirm you can place a tool on it.

Step 2: Relieve tension from the belt tensioner

• Put a 15mm socket on a 3/8" drive breaker bar (or use a serpentine belt tool (specialty) for extra clearance).
• Place the 15mm socket onto the tensioner’s hex.
• Rotate the tensioner to release belt tension. Move slowly; it’s spring-loaded.

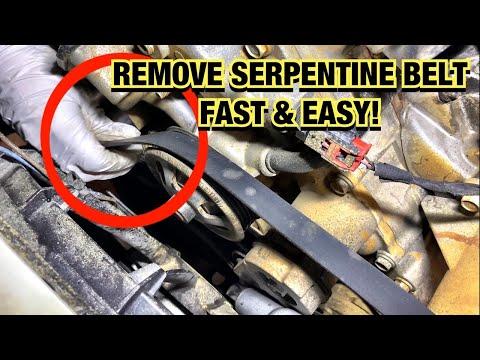

Step 3: Remove the old belt

• While holding the tensioner released with the breaker bar, slide the belt off the nearest easy-to-reach smooth pulley with your free hand.
• Slowly let the tensioner return to its resting position (do not let it snap back).
• Remove the belt from the remaining pulleys and pull it out of the engine bay.

Step 4: Compare the new belt to the old belt

• Lay the belts side-by-side and confirm the new belt matches rib count and is very close in length.
• If the old belt is shredded/cracked, inspect pulleys with a flashlight for damage or rubber buildup.

Step 5: Route the new belt on the pulleys

• Route the new belt following the under-hood routing diagram (or your photo).
• Make sure the ribbed side sits in the grooves of ribbed pulleys, and the smooth side rides on smooth pulleys.
• Leave the easiest-to-access pulley for last (usually a smooth idler or alternator area) so you can slip it on after releasing the tensioner.

Step 6: Apply tension and install the belt fully

• Use the 15mm socket with the 3/8" drive breaker bar (or serpentine belt tool (specialty)) to rotate the tensioner again.
• Slip the belt onto the final pulley.
• Slowly release the tensioner to apply tension to the belt.

Step 7: Verify belt alignment before starting

• Use a flashlight and visually check every pulley: the belt ribs must be centered and fully seated in the grooves.
• Spin a smooth pulley by hand (if reachable) and watch that the belt tracks straight.
• Reinstall the snorkel/duct (if removed) using the trim clip removal tool for clips as needed, and press the engine cover back on by hand.

---

✅ After Repair

• If you disconnected it, reconnect the battery negative cable securely using a 3/8" drive ratchet with the correct socket if needed.
• Start the engine and watch the belt for 20–30 seconds. It should run smoothly with no wobble, chirping, or wandering.
• Turn A/C on and off and re-check for noise (a squeal can mean misrouting or a rib not seated).
• If you hear grinding or see pulley wobble, shut the engine off and inspect the tensioner/idlers—those may need replacement.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
