🔧 Serpentine Belt - Replacement

Your RAV4 uses a single accessory belt to drive the front engine accessories. Replacing it is a straightforward job, but belt routing and tensioner access matter, so take your time and confirm the belt is seated correctly in every pulley groove.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Work with the engine completely cool.
• Keep hands, hair, and clothing away from the belt path and pulleys.
• Hybrid system parts are not involved, but the engine can start unexpectedly in a hybrid. Keep the key/fob away from the vehicle.
• No battery disconnect is normally required for this repair.
• Use jack stands if you raise the vehicle. Never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3/8-inch drive ratchet
• 14mm socket
• Breaker bar
• Jack and jack stands (rated 3-ton minimum)
• Wheel chocks
• Flashlight
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool completely.
• If you need more room, lift the front of the vehicle and support it with jack stands.
• Have the belt routing ready before removing the old belt. Take a photo first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the belt area

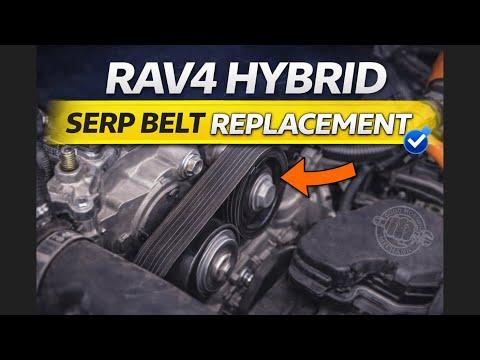

• Open the hood and locate the serpentine belt on the front of the engine.
• If access is tight, use a jack and jack stands (rated 3-ton minimum) to raise the front of the vehicle and remove the lower splash shield fasteners as needed.
• Use a flashlight to trace the belt routing over each pulley.

Step 2: Release belt tension

• Find the belt tensioner. This is the spring-loaded pulley that keeps the belt tight.
• Use a 14mm socket with a breaker bar or 3/8-inch drive ratchet on the tensioner hex.
• Rotate the tensioner in the direction that loosens the belt tension.
• Move slowly and keep control.

Step 3: Remove the old belt

• While holding the tensioner released, slip the belt off one easy-to-reach pulley.
• Slowly let the tensioner return to its stop.
• Remove the belt from all pulleys and pull it out of the engine bay.

Step 4: Compare and route the new belt

• Lay the old belt next to the new serpentine belt and compare length and rib count.
• Route the new belt around all pulleys except the easiest final pulley to reach, following the original path exactly.
• Make sure the ribs sit fully in the grooves on every grooved pulley.
• One misrouted belt will squeal or come off.

Step 5: Install the belt on the last pulley

• Use the 14mm socket and breaker bar again to rotate the tensioner and create slack.
• Slip the belt onto the last pulley while keeping fingers clear of the pinch point.
• Slowly release the tensioner.

Step 6: Verify belt seating

• Inspect every pulley to make sure the belt is centered and seated in all grooves.
• Check the back side of the belt on smooth pulleys and the ribbed side on grooved pulleys.
• Spin each accessible pulley by hand only if needed and only with the engine off.

Step 7: Reassemble and lower the vehicle

• Reinstall any splash shield or undertray fasteners you removed.
• Lower the vehicle if it was raised.
• Remove wheel chocks.

---

✅ After Repair

• Start the vehicle and listen for squealing, chirping, or grinding.
• Watch the belt for 30-60 seconds to confirm smooth tracking.
• Turn the steering wheel slightly and switch on loads like headlights and A/C to confirm stable operation.
• If the belt walks off-center or makes noise, shut the vehicle off and recheck routing immediately.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
