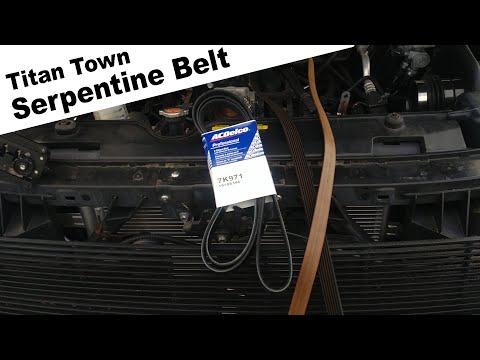

🔧 Titan - Serpentine Belt Replacement

Your Titan’s serpentine belt drives key accessories like the alternator and A/C compressor. If it’s cracked, noisy, glazed (shiny), or slipping, replacing it helps prevent a breakdown and charging/overheating issues.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands clear of the fan and pulleys.
• ⚠️ Key out of the ignition; do not remote-start while working.
• ⚠️ Never run the engine with fingers/tools near the belt.
• ⚠️ Battery disconnect is not required, but keep tools away from the battery terminals.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 14mm combination wrench
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3/8" drive short extension (3")
• Serpentine belt tool (specialty)
• Flat trim tool
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• Find the belt routing diagram (usually on the radiator support or underside of the hood). If it’s missing, take a clear photo of the current routing before removing the belt.
• Tip: Draw a quick sketch of the belt path.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Get access to the front of the engine

• Use flashlight to locate the belt, tensioner, and routing label.
• If the upper air duct/cover blocks your view, release the clips using a flat trim tool and move it aside (do not force plastic when cold).

Step 2: Locate the belt tensioner

• Look for the spring-loaded tensioner pulley (a small smooth pulley on a movable arm).
• A “tensioner” is the part that keeps the belt tight automatically using an internal spring.

Step 3: Relieve belt tension

• Fit a 14mm combination wrench or a serpentine belt tool (specialty) onto the tensioner’s hex (or use a 3/8" drive breaker bar if your tensioner has a square drive).
• Rotate the tensioner smoothly to release tension (it will feel strong—keep steady pressure).
• While holding tension off, slide the belt off the easiest-to-reach pulley (usually a smooth idler or the alternator pulley).

Step 4: Remove the old belt

• Slowly let the tensioner return to its resting position (do not let it snap back).
• Remove the belt from the remaining pulleys by hand.
• Use flashlight to inspect each pulley for wobble or roughness by spinning it by hand.

Step 5: Route the new belt

• Match the new belt to the old one by length and rib count (the grooved side rides on grooved pulleys).
• Route the belt according to the under-hood diagram, leaving one easy pulley for last.
• Use flashlight to confirm every rib sits in the pulley grooves (no “one-rib-off” misalignment).
• Tip: Leave the smooth idler pulley for last.

Step 6: Apply tension and seat the belt

• Rotate the tensioner again using the 14mm combination wrench or serpentine belt tool (specialty).
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Re-check alignment on every pulley using the flashlight.

Step 7: Reinstall anything you moved

• If you removed clips or ducting, reinstall them using the flat trim tool to guide clips into place.
• Torque Note: This procedure typically requires no bolt removal. If you loosened any clamps/fasteners during access, tighten them to the factory spec for your Titan.

---

✅ After Repair

• Start the engine and let it idle while you watch the belt for 20–30 seconds (hands clear).
• Listen for squealing, chirping, or slapping noises. If heard, shut off and re-check belt routing and rib alignment.
• Turn A/C on and off and verify the belt runs smoothly without wandering.
• After a short drive, do a quick re-check that the belt is still centered on every pulley.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
