🔧 Acadia - Serpentine Belt Replacement

The serpentine belt (drive belt) runs your alternator, A/C compressor, and other accessories. Replacing it is mostly about safely releasing the belt tensioner, swapping the belt, and confirming the routing is correct on every pulley.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; belts and pulleys can burn you.
• ⚠️ Keep fingers, hair, and clothing away from pulleys.
• ⚠️ Key out of the vehicle so nobody can start it.
• ⚠️ Do not pry on pulleys with a screwdriver.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Flashlight
• Serpentine belt tool (specialty)
• 3/8" drive breaker bar
• 15mm socket
• 3/8" drive ratchet
• Trim clip removal tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park your Acadia on level ground and set the parking brake.
• Open the hood and use a flashlight to find the belt routing diagram (often on the upper radiator support). If it’s missing, take a clear photo of the current belt routing before removal.
• A “belt tensioner” is a spring-loaded arm that keeps the belt tight. You’ll rotate it to relieve tension.
• A “serpentine belt tool” is a long handled tool made to reach the tensioner in tight spaces.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Get access to the belt area

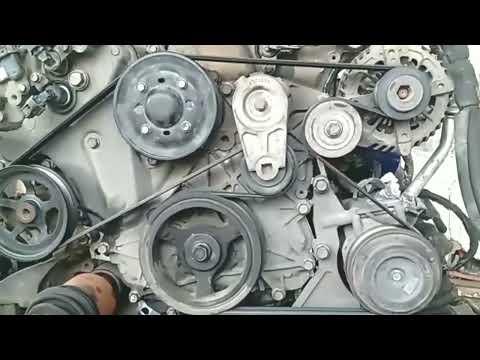

• Use a flashlight to locate the belt path at the front of the engine.
• If an air inlet duct or cover is blocking access, remove it using a trim clip removal tool (for push-clips) and a 3/8" drive ratchet with the appropriate fastener/socket already on hand.
• Take a photo before you remove anything.

Step 2: Relieve belt tension at the tensioner

• Place a 15mm socket on the belt tensioner pulley bolt (the smooth pulley on the spring-loaded arm), using a 3/8" drive breaker bar or serpentine belt tool (specialty).
• Rotate the tensioner to relieve tension, then hold it in the released position.
• While holding the tensioner, slide the belt off the nearest easy-to-reach pulley (commonly an upper smooth/idler pulley) by hand with mechanic gloves.
• Slowly release the tensioner back to its resting position (do not let it snap back).

Step 3: Remove the old belt

• Pull the belt out from around the remaining pulleys by hand (use mechanic gloves).
• Inspect pulleys by spinning them by hand: they should spin smoothly and quietly with no wobble.
• Inspect the tensioner arm movement by rotating it again with the 15mm socket and breaker bar; it should move smoothly and spring back firmly.

Step 4: Route the new belt correctly

• Compare the old belt to the new belt (same length and rib count).
• Route the new belt following the under-hood belt diagram (or the photo you took).
• Make sure the ribbed side of the belt sits in the grooves of ribbed pulleys, and the smooth side runs on smooth pulleys.
• Leave the belt off one easy-to-reach pulley last (this gives you slack for the final install).

Step 5: Apply tension and seat the belt

• Rotate the tensioner again using the 15mm socket and 3/8" drive breaker bar (or serpentine belt tool (specialty)).
• Slip the belt fully onto the last pulley by hand (use mechanic gloves).
• Slowly release the tensioner to tension the belt.
• Visually check every pulley: the belt must be centered and fully seated in all grooves.
• If one rib is off, re-route now.

Step 6: Reinstall any covers or ducts

• Reinstall any air ducting/covers you removed using a trim clip removal tool (clips) and a 3/8" drive ratchet.

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds while you watch the belt track.
• Listen for squeal, chirping, or slapping sounds. If you hear any, shut the engine off and re-check belt seating and routing.
• Turn on the A/C for a moment; confirm no belt noise changes dramatically.
• Recheck the belt position once more after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$260 (parts + labor)

DIY Cost: $35-$70 (parts only)

You Save: $80-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
