🔧 Sportage - Serpentine Belt Replacement

Your Sportage uses one main “serpentine belt” (a single long belt) to drive accessories like the alternator and A/C. Replacing it is mostly about safely relieving the spring-loaded belt tensioner and routing the new belt correctly.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• Work on a cool engine—hot pulleys and the radiator area can burn you.
• Keep fingers, hair, and clothing away from the belt path at all times.
• Support the vehicle with jack stands before going under it; never rely on a floor jack alone.
• Do not start the engine until all tools are removed from the engine bay.
• Battery disconnect is not required for this job, but keep the key/fob away so the engine can’t be started accidentally.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Breaker bar 1/2"
• Serpentine belt tool (specialty)
• Socket set metric 10mm
• Socket set metric 12mm
• Socket set metric 14mm
• Socket set metric 17mm
• Ratchet 3/8"
• Torque wrench 1/2"
• Trim clip removal tool
• Flathead screwdriver
• Needle-nose pliers
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and find the belt routing diagram (usually on the underside of the hood or near the radiator support). If it’s missing, take a clear photo of the current belt routing before removal.
• Know the key parts: the belt tensioner is a spring-loaded arm that keeps the belt tight; you rotate it with a wrench to remove/install the belt.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the right front wheel (for access)

• Use a breaker bar 1/2" with the correct lug socket to slightly loosen the lug nuts while the tire is on the ground.
• Lift the right front with a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Remove the lug nuts and wheel.
• Reinstall torque later: Torque to 90-110 Nm (66-81 ft-lbs).

Step 2: Remove the right-side lower splash shield

• Use a trim clip removal tool and flathead screwdriver to remove plastic clips.
• Use a 10mm socket (and/or 12mm socket, depending on fasteners) with a ratchet 3/8" to remove bolts and take off the splash shield section.
• Lay fasteners out in a pattern.

Step 3: Relieve belt tension

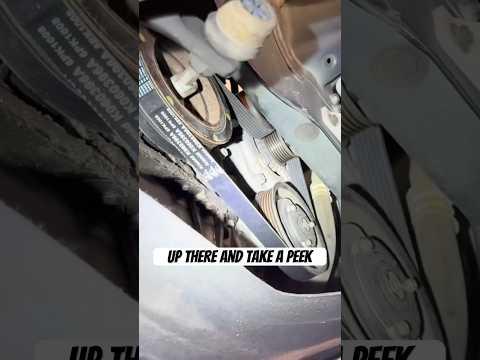

• Locate the belt tensioner from the wheel-well opening. The tensioner has a hex on the arm for a wrench/socket.
• Fit either a 14mm socket or 17mm socket (whichever matches your tensioner) on a breaker bar 1/2" (or use a serpentine belt tool (specialty)).
• Rotate the tensioner smoothly to relieve tension (it’s spring-loaded, so it will push back).
• While holding the tensioner rotated, slide the belt off one easy-to-reach pulley (usually the alternator or a smooth idler).
• Slowly release the tensioner back to its resting position—do not let it snap back.

Step 4: Remove the old belt and inspect pulleys

• Pull the belt out through the wheel-well opening.
• Spin the pulleys by hand (with the engine OFF): they should turn smoothly and quietly.
• Check the tensioner and idler for wobble or grinding; if you feel roughness, plan to replace that component soon.

Step 5: Route the new belt

• Compare the old and new belt length and rib count before installing.
• Route the new belt following the under-hood routing diagram (ribs go into grooved pulleys; smooth pulleys ride on the belt’s smooth back).
• Leave the belt off one upper/easy pulley as your “last pulley” to slip on after tension is released.

Step 6: Apply tension and finish installation

• Use the 14mm socket or 17mm socket with the breaker bar 1/2" to rotate the tensioner again.
• Slip the belt fully onto the last pulley, then slowly release the tensioner.
• Visually confirm the belt ribs are seated in every grooved pulley all the way around (no ribs hanging off an edge).
• If it looks “one rib off,” redo it.

Step 7: Reinstall splash shield and wheel

• Reinstall the splash shield using the 10mm socket/12mm socket, ratchet 3/8", and clips using the trim clip removal tool.
• Reinstall the wheel and hand-thread lug nuts.
• Lower the vehicle and use a torque wrench 1/2": Torque to 90-110 Nm (66-81 ft-lbs).

---

✅ After Repair

• Start the engine and watch the belt for 20–30 seconds: it should run centered with no wobble.
• Listen for squealing or chirping; shut the engine off immediately if the belt walks off a pulley.
• Turn A/C on and add electrical load (headlights) briefly to confirm normal operation.
• Recheck the belt seating one more time after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $125-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
