🔧 Escape - Serpentine Belt Replacement

Replacing the serpentine belt on your Escape means removing the old accessory drive belt and installing a new one around the crankshaft, alternator, A/C compressor, and belt tensioner pulleys. The belt should be replaced if it is cracked, glazed, noisy, frayed, or slipping.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hour

---

⚠️ Safety & Precautions

• ⚠️ Work only with the engine completely off and cool.
• ⚠️ Keep fingers, clothing, and tools away from the belt path and pulleys.
• ⚠️ Do not start the engine while your hands or tools are near the belt area.
• ⚠️ Disconnect the negative battery cable before working near the belt to prevent accidental cranking.
• ⚠️ Support the vehicle securely with jack stands if you raise it. Never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive long-handle ratchet
• 3/8-inch drive serpentine belt tool (specialty)
• Flat-blade screwdriver
• Trim clip removal tool
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Work gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

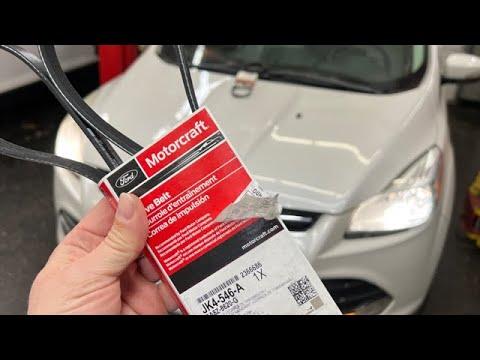

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park your Escape on level ground.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Let the engine cool fully before reaching into the belt area.
• Open the hood and take a clear photo of the belt routing before removing the old belt.
• A serpentine belt tool is a long, thin handle used to move the spring-loaded belt tensioner in tight spaces.
• The belt tensioner is the spring-loaded pulley arm that keeps the belt tight while the engine runs.
• Disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the Hood and Inspect the Belt Path

• Use a flashlight to look at the belt routing on the passenger side of the engine bay.
• Take a photo of the belt path before removal. This helps you reinstall the new belt correctly.
• Look for the belt tensioner pulley. It is the pulley mounted to a spring-loaded arm.
• Photo first. It prevents routing mistakes.

Step 2: Disconnect the Battery

• Use a 10mm socket and 3/8-inch drive ratchet to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and move it aside so it cannot spring back.
• No torque is required yet because this cable will be reconnected later.

Step 3: Raise the Front Passenger Side

• Place wheel chocks behind the rear wheels.
• Use a floor jack at the correct front jacking point to raise the front passenger side enough to access the lower splash shield area.
• Place a jack stand under the proper support point and gently lower the vehicle onto it.
• Keep the floor jack lightly touching the jacking point as a backup.

Step 4: Remove the Passenger Lower Splash Shield Access Area

• Use a trim clip removal tool to remove plastic push clips from the passenger-side lower splash shield or wheel-well access panel.
• Use an 8mm socket or 10mm socket with a 3/8-inch drive ratchet to remove any small fasteners holding the access panel.
• Set the clips and fasteners aside in order so they go back in the same places.
• A cup keeps small clips from disappearing.

Step 5: Locate the Belt Tensioner

• Use a flashlight from the lower passenger-side opening to see the belt tensioner.
• Fit the 3/8-inch drive serpentine belt tool or 3/8-inch drive long-handle ratchet into the square drive opening on the tensioner arm if equipped.
• If your tensioner uses a bolt head instead of a square drive, use the correct socket from your tool set, commonly a 13mm socket.

Step 6: Release Belt Tension

• Use the 3/8-inch drive serpentine belt tool or 3/8-inch drive long-handle ratchet to slowly rotate the belt tensioner away from the belt.
• While holding the tensioner released, slide the belt off the easiest smooth pulley first.
• Slowly let the tensioner return to its resting position. Do not let it snap back.
• No fasteners are removed in this step, so no torque spec applies.
• Move slowly. The tensioner is spring-loaded.

Step 7: Remove the Old Belt

• Use your hands with work gloves to pull the old belt out from around the pulleys.
• Use a flashlight to make sure no belt pieces remain in any pulley grooves.
• Compare the old belt and new belt side by side to confirm the length and rib count match.

Step 8: Inspect the Pulleys

• Spin the accessible pulleys by hand while wearing work gloves.
• Each pulley should spin smoothly without grinding, wobbling, or rough spots.
• Use a flashlight to inspect grooved pulleys for debris or damaged ribs.
• If a pulley is noisy, loose, or seized, do not install the new belt until that pulley is repaired.

Step 9: Route the New Belt

• Use your belt-routing photo and route the new serpentine belt around the pulleys by hand.
• Make sure the ribbed side of the belt sits in grooved pulleys.
• Make sure the smooth side of the belt rides on smooth pulleys.
• Leave the easiest smooth pulley for last so the belt can slip on once the tensioner is released.

Step 10: Release the Tensioner and Install the Belt Fully

• Use the 3/8-inch drive serpentine belt tool or 3/8-inch drive long-handle ratchet to rotate the belt tensioner away from the belt again.
• Slide the belt over the final pulley by hand.
• Slowly release the tensioner until it tightens the belt.
• Use a flashlight to check every pulley. The belt must sit centered and fully inside the grooves.
• One misaligned rib can shred the belt.

Step 11: Reinstall the Splash Shield Access Area

• Use your hands to position the lower splash shield or wheel-well access panel.
• Use a trim clip removal tool to help align plastic clips if needed.
• Push the clips back in by hand.
• Use an 8mm socket or 10mm socket with a 3/8-inch drive ratchet to reinstall small fasteners.
• Torque small splash shield fasteners snug only, about 2-3 Nm (18-27 in-lbs).

Step 12: Lower the Vehicle

• Use the floor jack to raise the vehicle slightly off the jack stand.
• Remove the jack stand.
• Slowly lower the vehicle to the ground with the floor jack.

Step 13: Reconnect the Battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm socket and 3/8-inch drive ratchet to tighten the clamp.
• Torque to 5 Nm (44 in-lbs).
• Do not overtighten the battery terminal. It can crack or deform.

---

✅ After Repair

• ✅ Before starting the engine, look down the belt path with a flashlight and confirm the belt is centered on every pulley.
• ✅ Start the engine and let it idle for 30-60 seconds.
• ✅ Watch the belt from a safe distance. It should run smoothly without wobbling, squealing, or walking off a pulley.
• ✅ Turn the steering wheel slightly, switch the A/C on, and listen for belt noise.
• ✅ Shut the engine off and recheck belt seating after the first short test run.
• ✅ If the battery was disconnected, the clock, radio presets, and one-touch window functions may need to relearn or be reset.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 (parts + labor)

DIY Cost: $25-$70 (parts only)

You Save: $95-$180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hour.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

🔧 Escape - Serpentine Belt Replacement

Replacing the serpentine belt on your Escape means removing the old accessory belt and installing a new one in the same path around the engine pulleys. This belt drives accessories like the alternator and A/C compressor, so correct routing and pulley alignment are important.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• ⚠️ Work only with the engine off, key removed, and engine cool.
• ⚠️ Disconnect the negative battery cable to prevent accidental starting.
• ⚠️ Keep hands, hair, loose clothing, and tools away from the belt and pulleys.
• ⚠️ The belt tensioner is spring-loaded. Move it slowly and never let it snap back.
• ⚠️ If raising the vehicle, support it with jack stands. Never work under a vehicle supported only by a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive long-handle ratchet
• 3/8-inch drive serpentine belt tool (specialty)
• Flat-blade screwdriver
• Trim clip removal tool
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Flashlight
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park your Escape on level ground and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and let the engine cool fully.
• Take a clear photo of the belt routing before removing the old belt.
• A serpentine belt tool is a long, thin handle that helps move the belt tensioner in tight spaces.
• The belt tensioner is the spring-loaded pulley arm that keeps the belt tight while the engine runs.
• Disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Inspect the Belt Area

• Use a flashlight to look at the passenger side of the engine where the belt and pulleys are located.
• Take a photo of the belt routing before removal.
• Look for cracked ribs, fraying, shiny glazing, missing chunks, or belt dust.
• A photo prevents routing mistakes.

Step 2: Disconnect the Battery

• Use a 10mm socket and 3/8-inch drive ratchet to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and move it aside so it cannot touch the post.
• No torque is needed during removal.

Step 3: Raise the Passenger Front Corner

• Put on safety glasses and work gloves.
• Place wheel chocks behind the rear wheels.
• Use a floor jack at the front passenger-side jacking point to raise the vehicle enough to access the lower splash shield area.
• Place a jack stand under the proper support point and lower the vehicle onto it.
• Leave the floor jack lightly touching the jacking point as backup.

Step 4: Remove the Lower Access Shield

• Use a trim clip removal tool to remove the plastic push clips from the passenger-side lower splash shield or wheel-well access panel.
• Use an 8mm socket or 10mm socket with a 3/8-inch drive ratchet to remove the small shield fasteners.
• Use a flat-blade screwdriver only if a clip needs gentle help lifting.
• Set all clips and fasteners aside in order.
• A small cup saves lost clips.

Step 5: Find the Belt Tensioner

• Use a flashlight from the lower passenger-side opening to locate the belt tensioner.
• Fit the 3/8-inch drive serpentine belt tool or 3/8-inch drive long-handle ratchet into the tensioner drive opening if equipped.
• If the tensioner uses a bolt head instead of a square opening, use a 13mm socket with the 3/8-inch drive long-handle ratchet.

Step 6: Release Belt Tension

• Use the 3/8-inch drive serpentine belt tool or 3/8-inch drive long-handle ratchet to slowly rotate the tensioner away from the belt.
• While holding the tensioner released, slide the belt off the easiest smooth pulley.
• Slowly let the tensioner return to its resting position.
• No fastener torque applies because no mounting bolts are removed.
• Do not let the tensioner snap back.

Step 7: Remove the Old Belt

• Use your hands with work gloves to pull the old belt out from around the pulleys.
• Use a flashlight to check that no broken belt pieces are stuck in the pulley grooves.
• Compare the old belt with the new serpentine belt. The length and rib count should match.

Step 8: Check the Pulleys

• Use your hands with work gloves to spin the accessible pulleys one at a time.
• Each pulley should spin smoothly without grinding, wobbling, or rough spots.
• Use a flashlight to check grooved pulleys for dirt, damaged ribs, or rubber buildup.
• If a pulley is seized, noisy, or loose, fix that problem before installing the new belt.

Step 9: Route the New Belt

• Use your belt-routing photo and route the new serpentine belt around the pulleys by hand.
• Place the ribbed side of the belt into the grooved pulleys.
• Place the smooth side of the belt against smooth pulleys.
• Leave one smooth pulley for last. This makes the final slip-on easier.
• Ribs go into grooves.

Step 10: Seat the Belt Fully

• Use the 3/8-inch drive serpentine belt tool or 3/8-inch drive long-handle ratchet to rotate the tensioner away from the belt again.
• Slide the belt over the final pulley by hand.
• Slowly release the tensioner until it applies pressure to the belt.
• Use a flashlight to inspect every pulley. The belt must be centered and fully seated in each groove.
• No fastener torque applies in this step.

Step 11: Reinstall the Lower Access Shield

• Position the splash shield or wheel-well access panel by hand.
• Use the trim clip removal tool to help line up stubborn clips if needed.
• Push the plastic clips in by hand.
• Use an 8mm socket or 10mm socket with a 3/8-inch drive ratchet to reinstall the small fasteners.
• Torque to 2-3 Nm (18-27 in-lbs).

Step 12: Lower the Vehicle

• Use the floor jack to raise the vehicle slightly off the jack stand.
• Remove the jack stand.
• Lower the vehicle slowly with the floor jack.

Step 13: Reconnect the Battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm socket and 3/8-inch drive ratchet to tighten the terminal clamp.
• Torque to 5 Nm (44 in-lbs).
• Do not overtighten the battery clamp.

---

✅ After Repair

• ✅ Before starting the engine, use a flashlight to confirm the belt is centered on every pulley.
• ✅ Start the engine and let it idle for 30-60 seconds.
• ✅ Watch the belt from a safe distance. It should run smoothly with no wobble, squeal, or walking off the pulley.
• ✅ Turn the A/C on and listen for belt noise.
• ✅ Shut the engine off and recheck belt seating after the first short run.
• ✅ If the battery was disconnected, reset the clock and any affected window auto-up functions if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 (parts + labor)

DIY Cost: $25-$70 (parts only)

You Save: $95-$180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.
