🔧 Golf - Serpentine Belt Replacement

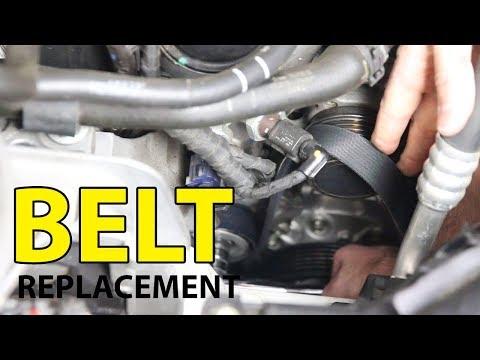

The serpentine belt (the single belt that drives accessories like the alternator and A/C) wears, cracks, or squeals over time. On your Golf, you’ll relieve the belt tension with the spring-loaded tensioner, swap the belt, then verify it’s seated correctly on every pulley.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands clear of the radiator fan area.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep fingers away from the belt and pulleys while releasing tension.
• ⚠️ Leave the key out of the car so nobody can start it.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• 1/2" drive breaker bar
• 16mm socket
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• Torx T25 screwdriver
• Trim clip removal tool
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Serpentine belt tensioner - Qty: 1 (optional if noisy/weak)
• Serpentine belt idler pulley - Qty: 1 (optional if noisy/rough)

---

📋 Before You Begin

• Park on level ground, put the shifter in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Have a flashlight ready so you can confirm the belt is seated in every pulley groove.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the right-front wheel bolts

• Use a 17mm socket and 1/2" drive breaker bar to crack the wheel bolts loose about 1/4 turn.

Step 2: Raise and support the car

• Lift the right-front with a floor jack (rated 3-ton minimum).
• Set the car down securely onto jack stands (rated 3-ton minimum).
• Remove the wheel bolts with the 17mm socket and remove the wheel.

Step 3: Remove the right-front fender liner access area

• Use a Torx T25 screwdriver to remove the screws holding the front/engine-side portion of the fender liner.
• Use a trim clip removal tool to pop any plastic clips without breaking them.
• Pull the liner back enough to see the belt and pulleys clearly (use a flashlight).
• Tip: Set screws in a cup so none vanish.

Step 4: Note the belt routing

• Take a clear photo with your phone for reference.
• If there’s a routing sticker/diagram, match your photo to it.

Step 5: Release belt tension

• The tensioner is a spring-loaded arm that keeps the belt tight.
• Place a 16mm socket on the tensioner’s hex and use a 3/8" drive ratchet with a 6" extension for leverage.
• Rotate the tensioner smoothly to relieve belt tension, then slide the belt off the easiest-to-reach smooth pulley.
• Tip: Move slowly—spring tension is strong.

Step 6: Remove the old belt and inspect pulleys

• Pull the belt out of the engine bay.
• Spin the idler and tensioner pulleys by hand (no tools).
• If you feel roughness, wobble, or hear grinding, plan to replace that pulley/tensioner.

Step 7: Install the new belt

• Route the new belt around the pulleys following your photo/diagram, leaving one easy pulley for last.
• Make sure the ribbed side sits fully in the ribbed pulley grooves (no ribs hanging off).
• Use the 16mm socket and 3/8" drive ratchet again to rotate the tensioner, slip the belt onto the last pulley, then slowly release the tensioner.
• Tip: If it won’t slip on, it’s routed wrong.

Step 8: Reassemble the fender liner and wheel

• Reposition the liner and install screws with the Torx T25 screwdriver.
• Install the wheel and hand-thread the bolts.
• Lower the car off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Tighten wheel bolts in a star pattern using the 17mm socket and 1/2" drive breaker bar: Torque to 120 Nm (89 ft-lbs).

---

✅ After Repair

• Start the engine and let it idle while you watch the belt for 15–30 seconds (keep hands clear).
• Listen for chirping/squealing; shut off and re-check belt seating if you hear noise.
• Take a short 5–10 minute drive, then recheck that everything is secure and no liner is rubbing the tire.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$80 (parts only)

You Save: $145-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.3 hours.

---
