🔧 Serpentine Belt - Replacement

The serpentine belt drives the alternator, water pump, and other front accessory components. On your Beetle, the belt is removed by relieving tension at the belt tensioner, then routed back exactly as installed.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Work only with the engine fully off and cool.
• Keep fingers, hair, and clothing away from the belt path and pulleys.
• Do not start the engine with the belt removed.
• If the belt has shredded, inspect the pulley faces carefully before installing the new belt.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Ratchet
• 16mm socket
• Breaker bar
• Flat blade screwdriver
• Trim clip tool
• Jack stands
• Floor jack (rated 3-ton minimum)
• Safety glasses
• Mechanic gloves
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Belt tensioner assembly - Qty: 1
• Idler pulley - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool completely.
• Raise the front of the vehicle if needed for better access under the splash shield.
• Remove the lower engine cover or splash shield if equipped.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove access covers

• Use a trim clip tool and ratchet to remove the lower engine cover or splash shield if it blocks access to the belt area.
• Set all fasteners aside in order.

Step 2: Locate the belt tensioner

• Use a flashlight to find the belt tensioner at the front of the engine.
• Take a photo before removal.
• Note the belt routing around each pulley.

Step 3: Relieve belt tension

• Place a 16mm socket on the belt tensioner hex and use a breaker bar or ratchet to rotate the tensioner away from the belt.
• Hold the tensioner steady and slip the belt off one easy-to-reach pulley.
• Slowly release the tensioner.

Step 4: Remove the old belt

• Use your hands to pull the belt off the remaining pulleys.
• Inspect the belt for cracks, glazing, missing ribs, or frayed edges.

Step 5: Inspect pulleys and tensioner

• Spin each pulley by hand and listen for roughness or noise.
• Use a flashlight to check for oil contamination, wobble, or damaged pulley edges.
• If the tensioner feels weak or jerky, replace the belt tensioner assembly.
• If a pulley is noisy or rough, replace the idler pulley.

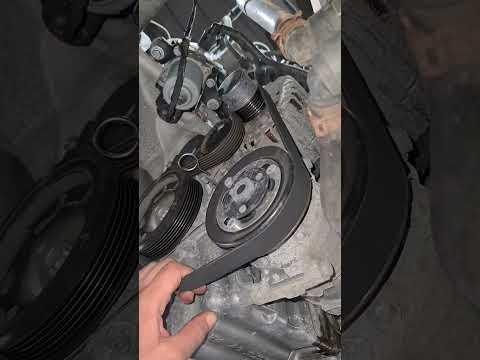

Step 6: Route the new belt

• Use both hands to route the serpentine belt around all pulleys except one easy-access pulley.
• Make sure the belt ribs sit fully in every grooved pulley.
• Keep the belt centered on each pulley.
• Ribbed side goes on grooved pulleys.

Step 7: Install the belt on the final pulley

• Use the 16mm socket and breaker bar to rotate the tensioner again.
• Slip the belt onto the last pulley while holding tension off the belt.
• Slowly release the tensioner and confirm the belt is seated on every pulley.

Step 8: Verify belt alignment

• Use a flashlight to inspect all pulley tracks.
• Make sure no rib is riding off the edge of a pulley.
• Rotate the engine by hand only if needed and only with the proper tool access available.

Step 9: Reinstall covers

• Use a ratchet and trim clip tool to reinstall the splash shield and lower engine cover.
• Confirm all clips and fasteners are fully seated.

---

✅ After Repair

• Start the engine and listen for squealing, chirping, or rubbing noises.
• Watch the belt for smooth tracking at idle.
• If the belt jumps, walks, or squeals, shut the engine off and recheck routing.
• Reinspect after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$420 (parts + labor)

DIY Cost: $35-$160 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
