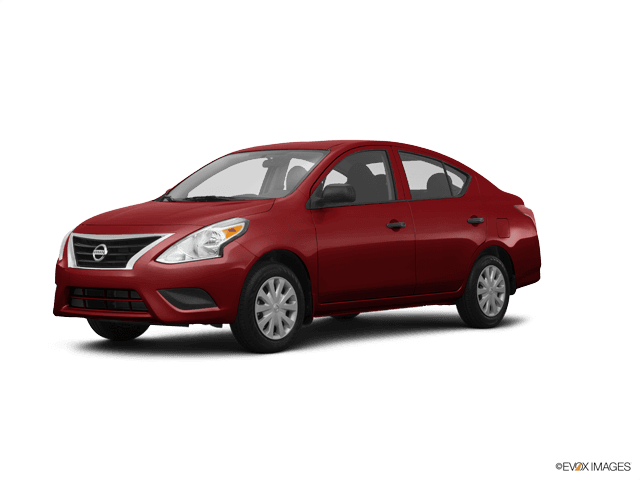

How to Replace the Serpentine Belt on a 2016 Nissan Versa (Accessory Drive Belt)
Step-by-step wheel-well access guide with tools list, belt routing tips, safety checks, and lug nut torque specs
How to Replace the Serpentine Belt on a 2016 Nissan Versa (Accessory Drive Belt)
Step-by-step wheel-well access guide with tools list, belt routing tips, safety checks, and lug nut torque specs
🔧 Versa - Serpentine Belt Replacement
The serpentine belt (also called the accessory drive belt) spins your alternator, A/C compressor, and other accessories. Replacing it is mostly about safely accessing the belt and using the tensioner to slip the old belt off and the new one on.
Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours
Assumption: your Versa uses an automatic belt tensioner accessed at the right-front wheel well.
⚠️ Safety & Precautions
- ⚠️ Work on level ground and support the car with jack stands, not the jack.
- ⚠️ Keep hands and tools away from the belt path; do not start the engine with hands near pulleys.
- ⚠️ Let the engine cool; hot exhaust and radiator parts can burn you.
- ⚠️ If you remove the wheel, chock the rear wheels and keep the car stable.
- 🔋 Battery disconnect is not required, but keep the key away so nobody can crank it.
🔧 Required Tools
You'll need the following tools for this repair:
- Wheel chocks
- Floor jack (rated 2-ton minimum)
- Jack stands (rated 2-ton minimum)
- 21mm lug nut socket
- 1/2" drive breaker bar
- 3/8" drive ratchet
- 3/8" drive extension set
- 10mm socket
- 12mm socket
- 14mm socket
- Trim clip removal tool
- Torque wrench (20-150 ft-lbs range)
- Flashlight
- Mechanic gloves
- Safety glasses
🔩 Required Parts
HowToo sells all the parts you need for this repair:
- Serpentine belt (accessory drive belt) - Qty: 1
📋 Before You Begin
- Park on level ground, shift to P, and set the parking brake.
- Place wheel chocks behind both rear tires.
- Open the hood and locate the belt routing diagram (often on a sticker). If there’s no sticker, take a clear photo of the belt path before removal.
- “Tensioner” = spring-loaded arm that keeps the belt tight.
🔨 Step-by-Step Instructions
Follow these steps in order:
Step 1: Loosen the right-front wheel lug nuts
- Use a 21mm lug nut socket and 1/2" drive breaker bar to loosen the lug nuts about 1/2 turn while the tire is still on the ground.
Step 2: Raise and support the right-front corner
- Lift the right-front jacking point using a floor jack (rated 2-ton minimum).
- Set the car down onto jack stands (rated 2-ton minimum).
- Give the car a gentle push to confirm it’s stable before you go underneath.
Step 3: Remove the right-front wheel
- Remove the lug nuts with the 21mm lug nut socket and take the wheel off.
Step 4: Remove the right-front splash shield/inner liner (as needed for access)
- Use a trim clip removal tool to pop out plastic clips.
- Use a 10mm socket (and/or 12mm socket if equipped) with a 3/8" drive ratchet to remove any small bolts.
- Pull the liner back enough to clearly see the belt and the tensioner.
Step 5: Relieve belt tension
- Locate the automatic tensioner. It will have a built-in hex “boss” you can turn.
- Install a 14mm socket on the tensioner and use a 1/2" drive breaker bar to rotate the tensioner and loosen the belt.
- Move it slowly—spring tension is strong.
Step 6: Remove the old belt
- While holding the tensioner rotated, slip the belt off the easiest-to-reach pulley using your hand (no prying tools).
- Slowly release the tensioner back to its resting position.
- Remove the belt from the remaining pulleys and pull it out.
Step 7: Route the new belt
- Compare the new belt to the old one (same length and rib count).
- Route the belt around the pulleys following the under-hood routing diagram (or your photo).
- Make sure the belt ribs sit fully in the ribbed pulleys and the belt sits centered on smooth pulleys.
- If it’s one groove off, it will shred.
Step 8: Apply tension and seat the belt
- Use the 14mm socket and 1/2" drive breaker bar to rotate the tensioner again.
- Slip the belt over the last pulley, then slowly release the tensioner.
- Visually inspect every pulley: the belt must be fully seated with no twist.
Step 9: Reinstall splash shield/liner and wheel
- Reinstall the splash shield/liner using the trim clip removal tool (for clips), plus 10mm socket / 12mm socket with a 3/8" drive ratchet for bolts.
- Reinstall the wheel and hand-thread lug nuts.
- Lower the car off the jack stands using the floor jack.
- Tighten lug nuts in a star pattern using a torque wrench: Torque to 113 Nm (83 ft-lbs).
✅ After Repair
- Start the engine and let it idle for 30-60 seconds while you watch the belt (from a safe distance).
- Listen for squealing or slapping noises; shut the engine off immediately if the belt walks off a pulley.
- Recheck that the splash shield/liner is secure and not rubbing the belt.
💰 DIY vs Shop Cost
Shop Cost: $150-$300 (parts + labor)
DIY Cost: $20-$60 (parts only)
You Save: $130-$240 by doing it yourself!
Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.
🎯 Ready to get started?
HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.
🔧 Versa - Serpentine Belt Replacement
The serpentine belt (accessory drive belt) spins the alternator and A/C compressor. Replacement is mainly about safely accessing the belt and rotating the spring-loaded tensioner so you can remove and install the belt correctly.
Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours
Assumption: belt uses an automatic tensioner accessed from the right-front wheel well.
⚠️ Safety & Precautions
- ⚠️ Support the car with jack stands; never rely on the jack.
- ⚠️ Keep fingers, hair, and clothing away from pulleys and the belt path.
- ⚠️ Work on a cool engine to avoid burns.
- ⚠️ Chock the rear wheels so the car can’t roll.
- 🔋 Battery disconnect is not required, but keep the key away so nobody can start it.
🔧 Required Tools
You'll need the following tools for this repair:
- Wheel chocks
- Floor jack (rated 2-ton minimum)
- Jack stands (rated 2-ton minimum)
- 21mm lug nut socket
- 1/2" drive breaker bar
- 3/8" drive ratchet
- 3/8" drive extension set
- 10mm socket
- 12mm socket
- 14mm socket
- Trim clip removal tool
- Torque wrench (20-150 ft-lbs range)
- Flashlight
- Mechanic gloves
- Safety glasses
🔩 Required Parts
HowToo sells all the parts you need for this repair:
- Serpentine belt (accessory drive belt) - Qty: 1
📋 Before You Begin
- Park on level ground, shift to P, and set the parking brake.
- Place wheel chocks behind both rear tires.
- Open the hood and look for the belt routing diagram sticker. If you don’t see one, take a clear photo of the belt routing before removal.
- “Tensioner” = spring-loaded arm that keeps the belt tight.
🔨 Step-by-Step Instructions
Follow these steps in order:
Step 1: Loosen the right-front lug nuts
- Use a 21mm lug nut socket with a 1/2" drive breaker bar to loosen each lug nut about 1/2 turn while the wheel is on the ground.
Step 2: Raise and support the car
- Lift the right-front corner using a floor jack (rated 2-ton minimum).
- Set the car securely onto jack stands (rated 2-ton minimum).
- Confirm stability before working in the wheel well.
Step 3: Remove the right-front wheel
- Remove the lug nuts using the 21mm lug nut socket, then remove the wheel.
Step 4: Remove the right-front inner fender/splash shield for access
- Remove plastic clips with a trim clip removal tool.
- Remove small bolts with a 10mm socket (and 12mm socket if equipped) using a 3/8" drive ratchet and 3/8" drive extension set.
- Pull the liner back until you can clearly see the belt and tensioner.
Step 5: Rotate the tensioner to release belt tension
- Find the automatic tensioner (spring-loaded pulley arm).
- Put a 14mm socket on the tensioner hex and turn it using a 1/2" drive breaker bar to relieve tension.
- Move slowly; the spring is strong.
Step 6: Remove the old belt
- While holding the tensioner rotated, slip the belt off the easiest pulley to reach by hand.
- Slowly let the tensioner return to its stop.
- Remove the belt from the remaining pulleys and pull it out.
Step 7: Route the new belt
- Compare the new belt to the old one (same length and number of ribs).
- Route the new belt around the pulleys using the routing diagram (or your photo).
- Make sure the ribs sit fully in the ribbed pulleys and the belt is centered on smooth pulleys.
- One groove off can destroy the belt.
Step 8: Apply tension and final-check alignment
- Rotate the tensioner again using the 14mm socket and 1/2" drive breaker bar.
- Slip the belt over the last pulley, then slowly release the tensioner.
- Use a flashlight to confirm the belt is seated correctly on every pulley.
Step 9: Reinstall the splash shield/liner and wheel
- Reinstall the liner using the trim clip removal tool and the 10mm socket/12mm socket with a 3/8" drive ratchet.
- Reinstall the wheel and hand-thread lug nuts.
- Lower the car using the floor jack (rated 2-ton minimum).
- Tighten lug nuts in a star pattern using a torque wrench (20-150 ft-lbs range): Torque to 113 Nm (83 ft-lbs).
✅ After Repair
- Start the engine and let it idle for 30–60 seconds while you watch the belt from a safe position.
- Listen for squeal or slapping. If the belt tracks off-center, shut the engine off and re-check routing and seating.
- After a short drive, do a quick re-check that the liner is secure and not rubbing the belt.
💰 DIY vs Shop Cost
Shop Cost: $150-$300 (parts + labor)
DIY Cost: $20-$60 (parts only)
You Save: $130-$240 by doing it yourself!
Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.
