🔧 TITAN XD - Serpentine Belt Replacement

The serpentine belt drives your A/C, alternator, power steering, and water pump. If it’s cracked, glazed, noisy, or slipping, replacing it prevents breakdowns and charging/overheating problems.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🧤 Work on a cold engine to avoid burns
• 🧯 Keep hands/clothes away from pulleys; never run the engine with fingers near the belt
• 🔋 Battery disconnect is not required, but keep the key off and your hands clear
• 🪝 Support the tensioner tool firmly; it can snap back hard

---

🔧 Required Tools

You'll need the following tools for this repair:

• 14mm combination wrench
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3/8" drive short extension (3")
• Serpentine belt tool (specialty)
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake

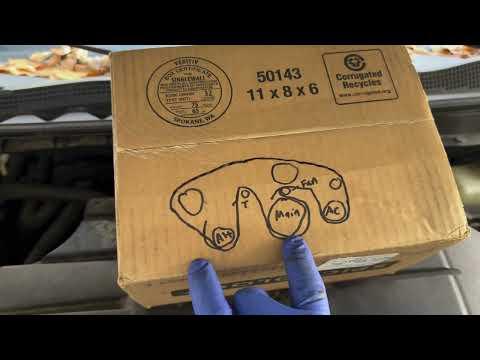

• 📸 Take a clear photo of the belt routing (or copy the routing diagram under the hood if equipped)
• 🔦 Have a flashlight ready so you can confirm the belt is seated in every pulley groove

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the belt routing and tensioner

• Use a flashlight to find the serpentine belt path across the front of the engine.
• Identify the automatic belt tensioner (spring-loaded arm with a hex for a wrench).

Step 2: Relieve belt tension

• Put a 14mm combination wrench on the tensioner hex.
• Pull the wrench to rotate the tensioner and release tension (it will feel strong).
• Keep a firm grip; tensioner snaps back fast.
• If access is tight, use a serpentine belt tool (specialty) (a long, thin handle made to reach the tensioner in tight spaces).

Step 3: Remove the old belt

• While holding the tensioner rotated with the 14mm combination wrench (or serpentine belt tool (specialty)), slide the belt off the easiest-to-reach smooth pulley (often an idler).
• Slowly let the tensioner return to rest (do not let it slam).
• Remove the belt from the remaining pulleys by hand.

Step 4: Inspect pulleys and tensioner before installing

• Use mechanic gloves and spin the pulleys by hand.
• Look/listen for roughness, wobble, or grinding, and check for oil/coolant contamination on the pulleys.
• A noisy pulley can ruin a new belt.

Step 5: Route the new belt

• Route the new belt around the pulleys following your photo/diagram, leaving one easy pulley for last.
• Make sure the belt ribs sit fully in the grooved pulleys (no “half-on” ribs).

Step 6: Apply tension and seat the belt

• Rotate the tensioner again using the 14mm combination wrench (or serpentine belt tool (specialty)).
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Use a flashlight to double-check belt alignment on every pulley.

Step 7: Final alignment check

• Use the flashlight to confirm the belt is centered and seated in all grooves.
• Make sure the belt is not riding on the edge of any pulley.

---

✅ After Repair

• 🔍 Start the engine and watch the belt for 20-30 seconds (keep hands clear)
• 👂 Listen for squeal, chirp, or slapping sounds; shut off immediately if the belt walks off a pulley
• 🧾 Recheck belt seating once more after the first short drive

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $35-$80 (parts only)

You Save: $115-$220 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
