🔧 Outlander Sport - Serpentine Belt Replacement

The serpentine belt (also called the drive belt) runs your alternator and other belt-driven accessories. Replacing it restores proper charging and prevents a breakdown if the belt is cracked, noisy, or slipping.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

Assumption: your Outlander Sport uses a spring-loaded automatic tensioner (14mm hex).

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands away from the radiator fan area.
• ⚠️ Support the vehicle with jack stands; never rely on a floor jack alone.
• ⚠️ Keep fingers clear of the tensioner while releasing spring tension.
• ⚠️ Battery disconnect is not required, but keep the key out and engine off.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-150 ft-lbs)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• Socket extension set (3" and 6")
• Trim clip removal tool
• Flat-blade screwdriver
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Lower splash shield clips - Qty: 2-6

---

📋 Before You Begin

• Park on level ground, set the parking brake, and leave the transmission in 1st gear.
• Place wheel chocks behind the rear wheels.
• Take a quick photo or sketch of the belt routing before removal.
• Know where the tensioner is: it’s the spring-loaded arm with a pulley that keeps the belt tight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the right-front corner

• Use a 21mm socket and 1/2" drive breaker bar to loosen the right-front wheel lug nuts 1 turn (do not remove yet).
• Use a floor jack (rated 2-ton minimum) to lift the right-front jacking point.
• Place jack stands (rated 2-ton minimum) under a solid support point and lower the vehicle onto the stand.
• Remove the lug nuts with the 21mm socket and remove the wheel.

Step 2: Remove the lower splash shield (undercover) for access

• Use a trim clip removal tool and flat-blade screwdriver to pop out plastic clips.
• Use a 10mm socket and 3/8" drive ratchet to remove any small bolts.
• Lower the shield and set it aside.
• When reinstalling those small bolts later: Torque to 7 Nm (62 in-lbs).

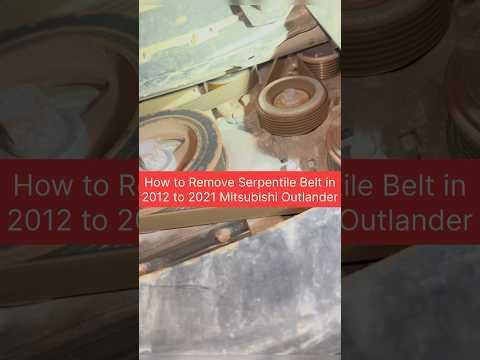

Step 3: Inspect and confirm belt routing

• Use a flashlight to locate the belt path around each pulley.
• Look for cracks, missing ribs, or glazing (shiny/slippery look) on the old belt.
• Tip: Draw arrows showing belt direction.

Step 4: Release the belt tension

• Place a 14mm socket on the tensioner hex and attach your 3/8" drive ratchet (use a socket extension set (3" and 6") if needed).
• Rotate the tensioner slowly to relieve tension (it’s spring-loaded, meaning it pushes back on you).
• While holding the tensioner rotated, slide the belt off the easiest-to-reach pulley.
• Carefully let the tensioner return to its resting position.

Step 5: Remove the old belt

• Pull the belt out from around the remaining pulleys by hand.
• Use the flashlight to check each pulley groove for stones, debris, or rubber chunks.

Step 6: Install the new belt (route it first, tension last)

• Route the new belt around the pulleys to match your photo/sketch, leaving one smooth pulley or the most accessible pulley for last.
• Make sure the belt ribs are fully seated in every grooved pulley (no ribs hanging off an edge).
• Tip: Misalignment causes squeal immediately.

Step 7: Apply tension and seat the belt

• Use the 14mm socket and 3/8" drive ratchet to rotate the tensioner again.
• Slip the belt over the last pulley, then slowly release the tensioner.
• Spin a pulley by hand (if accessible) and visually confirm the belt stays centered in the grooves.

Step 8: Reinstall splash shield and wheel

• Reinstall the splash shield using the 10mm socket, 3/8" drive ratchet, and the clips with the trim clip removal tool.
• Torque to 7 Nm (62 in-lbs) for the small splash shield bolts.
• Reinstall the wheel and hand-thread lug nuts.
• Lower the vehicle using the floor jack (rated 2-ton minimum).
• Use a 1/2" drive torque wrench (20-150 ft-lbs) and 21mm socket to tighten lug nuts in a star pattern: Torque to 108 Nm (80 ft-lbs).

---

✅ After Repair

• Start the engine and let it idle while you watch the belt for 30-60 seconds.
• Listen for chirping/squeal; if you hear it, shut the engine off and re-check belt seating on every pulley.
• After a short 5-10 minute drive, recheck for any new noise and look underneath for loose clips or a dangling shield edge.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor) (≈ ₹15,000-₹29,000)

DIY Cost: $30-$80 (parts only) (≈ ₹2,500-₹6,500)

You Save: $150-$270 by doing it yourself! (≈ ₹12,500-₹22,500)

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
