🔧 Outlander - Serpentine Belt Replacement

The serpentine belt drives accessories like the alternator and A/C. On your Outlander, it uses an automatic spring-loaded tensioner, so the job is mostly about safe access and correctly routing the new belt.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: 2.4L uses an automatic belt tensioner accessed from the right wheel well.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot parts can burn you.
• ⚠️ Support the Outlander with jack stands; never rely on a floor jack.
• ⚠️ Keep fingers clear of the tensioner and pulleys; the tensioner is spring-loaded.
• ⚠️ Key out of the vehicle and keep the engine OFF while routing the belt.
• ⚠️ Battery disconnect is not required, but avoid shorting the alternator area with tools.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 3/8" drive breaker bar (18" minimum)
• 10mm socket
• Flat trim clip removal tool
• 14mm socket
• 14mm box-end wrench
• Torque wrench (20-150 ft-lbs)
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Serpentine belt tensioner - Qty: 1 (optional if noisy/weak)
• Idler pulley - Qty: 1 (optional if noisy/rough)

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and use a flashlight to find the belt routing diagram (often on a sticker). If it’s missing, draw your own quick sketch before removing the belt.
• Loosen the right-front wheel lug nuts slightly before lifting the Outlander.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the right-front corner

• Use a 21mm socket and breaker bar to crack the right-front lug nuts loose (do not remove yet).
• Use a floor jack to lift the right-front corner at the proper jacking point.
• Set the Outlander onto jack stands and give the vehicle a gentle push to confirm it’s stable.

Step 2: Remove the right-front wheel

• Use a 21mm socket and ratchet to remove the lug nuts and remove the wheel.
• Reinstall later and Torque to 135 Nm (100 ft-lbs).

Step 3: Remove the right inner splash shield (fender liner) access area

• Use a flat trim clip removal tool to pop out the plastic clips (a trim clip tool is a forked pry tool that removes push-pins without breaking them).
• Use a 10mm socket and ratchet to remove any 10mm bolts holding the access panel/liner section.
• Pull the liner/access flap back enough to clearly see the belt and tensioner.

Step 4: Locate the belt tensioner and relieve tension

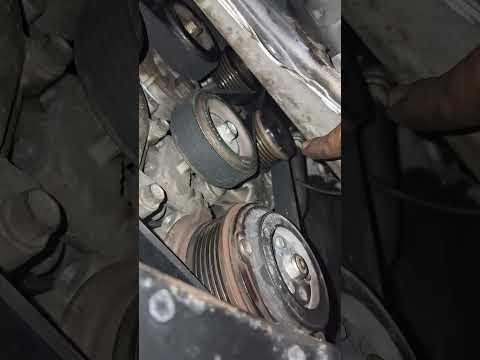

• Find the automatic tensioner (spring-loaded arm with a pulley). It will have a hex point for a tool.
• Install a 14mm socket on the tensioner hex and attach a 3/8" breaker bar.
• Rotate the tensioner smoothly to relieve belt tension. Move slowly—spring pressure is strong.

Step 5: Remove the old belt

• While holding the tensioner rotated with the breaker bar, slide the belt off the easiest-to-reach smooth pulley (often the idler or alternator area).
• Slowly release the tensioner back to its resting position (do not let it snap back).
• Remove the belt from the remaining pulleys and out of the engine bay.

Step 6: Inspect pulleys and the tensioner before installing the new belt

• Spin each pulley by hand (alternator, idler, tensioner pulley, A/C). They should spin smoothly and quietly.
• If a pulley feels rough, wobbles, or squeals, plan to replace that pulley/tensioner.

Step 7: Route the new belt correctly

• Route the new belt following the under-hood routing diagram (or your sketch).
• Make sure the belt ribs sit fully inside the grooves of all ribbed pulleys.
• Leave the easiest pulley for last (so you can slip it on while the tensioner is rotated).

Step 8: Apply tension and seat the belt

• Use the 14mm socket and breaker bar to rotate the tensioner again.
• Slip the belt onto the final pulley, then slowly release the tensioner.
• Double-check alignment: the belt must be centered on smooth pulleys and fully engaged on ribbed pulleys.

Step 9: Reinstall the splash shield and wheel

• Reposition the liner/access flap and reinstall fasteners using a 10mm socket and ratchet.
• Reinstall plastic clips using the flat trim clip removal tool (push them in squarely).
• Reinstall the wheel using a 21mm socket.
• Lower the Outlander and Torque to 135 Nm (100 ft-lbs) in a star pattern using a torque wrench.

---

✅ After Repair

• Start the engine and watch the belt for 20–30 seconds; it should run straight with no wobble.
• Listen for squeal, chirping, or grinding noises (signs of misrouting or a failing pulley).
• Turn A/C on and headlights on briefly; confirm no slipping noises under load.
• After a short drive, recheck the belt seating with a flashlight.

---

💰 DIY vs Shop Cost

Shop Cost: ₹4,000-₹9,000 (parts + labor)

DIY Cost: ₹1,200-₹3,000 (parts only)

You Save: ₹2,800-₹6,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
