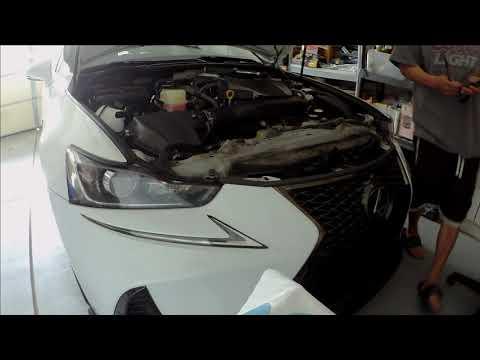

🔧 IS - Serpentine Belt Replacement

The serpentine belt (drive belt) spins key accessories like the alternator and A/C. If it’s cracked, squealing, or slipping, replacing it prevents charging problems and overheating.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot pulleys and coolant lines can burn you.
• ⚠️ Keep fingers and tools away from pulleys; never check belt tracking with the engine running.
• ⚠️ Support the car with jack stands before going underneath; never rely on a jack alone.
• ⚠️ Battery disconnect is not strictly required, but recommended if your hands will be near the alternator wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 Nm range)
• Serpentine belt tool (specialty)
• 19mm socket
• Breaker bar (3/8" or 1/2")
• Trim clip removal tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Undercover/splash shield clips - Qty: 4-10

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• If disconnecting the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Take a photo of belt routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: Best-effort guidance for the IS200t accessory belt with an automatic spring tensioner; minor access-panel differences may exist.

Step 1: Raise the front and remove the lower engine cover

• Use a floor jack (rated 2-ton minimum) at the front center jack point and lift the car.
• Place jack stands (rated 2-ton minimum) under the front side pinch welds and lower onto the stands.
• Use a trim clip removal tool to remove the plastic clips from the front/center splash shield.
• Use a 10mm socket and 3/8" drive ratchet to remove any 10mm bolts holding the undercover, then remove the panel.

Step 2: Locate the belt tensioner and confirm belt routing

• Use a flashlight to locate the belt, crank pulley (largest bottom pulley), alternator, A/C compressor, and the belt tensioner.
• If there’s a routing sticker under the hood, compare it to what you see. If not, use your photo.
• Draw a quick routing sketch on paper.

Step 3: Release belt tension

• Install a 19mm socket onto the belt tensioner’s hex.
• Use a breaker bar (a long-handled bar for extra leverage) to rotate the tensioner and relieve belt tension.
• If space is tight, use a serpentine belt tool (specialty) (a thin, long handle made for belt tensioners).
• While holding the tensioner rotated, slide the belt off the easiest-to-reach upper pulley.
• Slowly release the tensioner back to its resting position (do not let it snap back).

Step 4: Remove the old belt

• Pull the belt out from around the remaining pulleys by hand.
• Use a flashlight to inspect each pulley groove for rubber chunks or debris and wipe off if needed (gloved hand).
• Spin each accessible pulley by hand; it should feel smooth and quiet.

Step 5: Install the new belt (route it correctly)

• Route the new belt around the pulleys following your photo/sketch (leave the easiest upper pulley for last).
• Make sure the ribbed side sits fully in the grooved pulleys, and the smooth side sits on smooth pulleys.
• Use a flashlight to confirm the belt ribs are centered and not hanging off any pulley edge.
• If one rib is off, it will shred fast.

Step 6: Re-apply tension and seat the belt

• Use the 19mm socket and breaker bar to rotate the tensioner again.
• Slip the belt fully onto the last pulley.
• Slowly release the tensioner.
• Re-check every pulley with a flashlight to confirm full seating in the grooves.

Step 7: Reinstall the lower engine cover and lower the car

• Reinstall the splash shield/undercover using the 10mm socket and 3/8" drive ratchet.
• Torque to 7 Nm (62 in-lbs) for the 10mm undercover bolts.
• Reinstall clips using the trim clip removal tool (press-to-lock style clips snap in).
• Raise slightly with the floor jack, remove jack stands, and lower the car.

Step 8: Reconnect battery (if disconnected)

• Use a 10mm socket to tighten the negative terminal.
• Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Start the engine and let it idle for 20-30 seconds while you listen for squeal or slapping.
• Shut the engine off and do a final visual check that the belt is centered on every pulley.
• If you hear chirping/squeal after replacement, re-check belt routing and pulley alignment.

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹12,000 (parts + labor)

DIY Cost: ₹1,500-₹4,000 (parts only)

You Save: ₹4,500-₹8,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
