🔧 X5 - Serpentine Belt Replacement

Your X5’s serpentine belt (also called the accessory drive belt) spins key accessories like the alternator and A/C compressor. Replacing it prevents belt breakage, squealing, and loss of charging or cooling support systems.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the belt path; the tensioner is spring-loaded and can snap back hard.
• ⚠️ Work on a cool engine; the radiator and hoses can burn you.
• ⚠️ Remove the key/fob from the vehicle area so the electric fan cannot start unexpectedly.
• ⚠️ If you unplug any electrical connectors near the fan or intake, disconnect the negative battery terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Flashlight
• Trim clip removal tool
• Flathead screwdriver
• 8mm socket
• 10mm socket
• Torx T20 bit
• Torx T25 bit
• Torx T60 bit
• 3/8" ratchet
• 3/8" breaker bar (18" minimum)
• 3" extension for 3/8" drive
• Torque wrench (5-60 Nm range)
• Smartphone camera

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Accessory belt tensioner assembly - Qty: 1 (recommended if noisy/weak)
• Accessory belt idler pulley - Qty: 1 (recommended if noisy/rough)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and let the engine cool fully.
• Take a clear photo of the belt routing before removal. This is your “map” for reassembly.
• Assumption: Your X5 has the common N55 belt tensioner with a Torx T60 release point; some variants use a hex head. If your tensioner does not accept T60, use a matching socket/bit that fits the tensioner release.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and open access

• Lift off the engine cover by pulling straight upward by hand (it’s held by rubber grommets).
• Use a flashlight to locate the belt at the front of the engine (radiator side).

Step 2: Remove the intake snorkel/ducting (for working room)

• Use a flathead screwdriver to loosen any hose clamps on the front intake duct (a clamp is the metal band that tightens around a rubber coupler).
• Use a trim clip removal tool to pop out any plastic push-clips holding the snorkel or duct.
• If your duct uses screws, remove them using an 8mm socket or Torx T20 bit.
• Reinstall fasteners later to Torque to 5 Nm (44 in-lbs) if they are small 6mm screws.

Step 3: Confirm belt routing

• Use your smartphone camera to take a second photo from a different angle.
• Look for a belt routing sticker/diagram near the radiator support; if present, reference it.

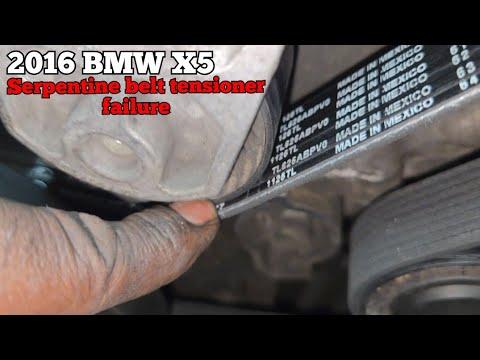

Step 4: Release belt tension

• Install a Torx T60 bit into the belt tensioner’s release point, then attach a 3/8" breaker bar.
• Rotate the tensioner smoothly to relieve tension (you’ll feel strong spring force).
• Tip: Move slowly—don’t let it snap.

Step 5: Remove the old belt

• While holding the tensioner released with the 3/8" breaker bar, slide the belt off the easiest-to-reach smooth pulley using your free hand.
• Slowly return the tensioner to its resting position.
• Remove the belt completely and compare its length/width to the new belt.

Step 6: Inspect pulleys and tensioner (important)

• Spin each pulley by hand. It should spin smoothly and quietly.
• If any pulley feels rough, wobbly, or noisy, plan to replace that pulley/tensioner before installing the new belt.
• Tip: A bad pulley can destroy a new belt fast.

Step 7: Install the new belt (route it first, then tension last)

• Route the new belt around the crank pulley and the remaining pulleys, leaving one easy pulley for last.
• Make sure the belt ribs sit fully into the grooved pulleys (no ribs hanging off an edge).
• Use the Torx T60 bit and 3/8" breaker bar to rotate the tensioner again.
• Slip the belt onto the last pulley, then slowly release the tensioner.

Step 8: Double-check alignment

• Use a flashlight to verify the belt is centered on every pulley.
• If the belt is even slightly off a rib, release tension and re-seat it now.

Step 9: Reinstall intake ducting and covers

• Reinstall the intake snorkel/duct using the 8mm socket, Torx T20 bit, and trim clip removal tool as needed (reverse of removal).
• Tighten small duct screws to Torque to 5 Nm (44 in-lbs).
• Snug hose clamps using a flathead screwdriver (do not overtighten).
• Press the engine cover back onto its mounting grommets by hand.

---

✅ After Repair

• Start the engine and let it idle while you watch the belt for 30-60 seconds.
• Listen for chirping/squealing; if heard, shut off and re-check belt seating.
• Turn on A/C and headlights to put load on the belt system, then re-check for noise.
• Take a short test drive and do one final visual inspection for correct tracking.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
