🔧 X3 - Serpentine Belt Replacement

Replacing the serpentine belt on your X3 means removing the belt from the front accessory pulleys (alternator, A/C, etc.) and installing a new one with the correct routing. A worn belt can squeal, slip, or crack, and if it breaks you can lose charging and cooling support.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully; keep hands clear of the radiator fan area.
• ⚠️ Disconnect the negative battery terminal before working near the belt drive to prevent accidental cranking.
• ⚠️ Support the vehicle securely on jack stands if you raise it; never rely on a jack alone.
• ⚠️ Keep fingers out of pinch points at the tensioner and pulleys.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 8mm socket
• 10mm socket
• Ratchet (3/8" drive)
• Torque wrench (10–60 Nm range)
• Torx T20 screwdriver
• Torx T25 screwdriver
• E-Torx E10 socket
• E-Torx E12 socket
• Serpentine belt tool (specialty)
• 16mm socket
• Long breaker bar (3/8" drive)
• Flashlight
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Serpentine belt tensioner assembly - Qty: 1 Optional if noisy/weak
• Idler pulley - Qty: 1 Optional if rough/noisy

---

📋 Before You Begin

• Park on level ground, shift to Park, and apply the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and remove the key from the vehicle.
• Disconnect the battery: use a 10mm socket to loosen the negative terminal and isolate it so it can’t spring back. (Negative terminal is the “-” side.)
• Tip: Take a clear photo of the belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower access panel

• Lift the front of the X3 with a floor jack (rated 3-ton minimum) and support it on jack stands (rated 3-ton minimum).
• Remove the front lower splash shield/undertray fasteners using a 8mm socket and Torx T20 screwdriver (fasteners vary by panel location).
• Set the undertray aside where it won’t get stepped on.

Step 2: Create access to the belt drive (front of engine)

• From above, remove any small intake ducting or covers blocking access using a Torx T25 screwdriver and/or 8mm socket (depending on what’s fitted).

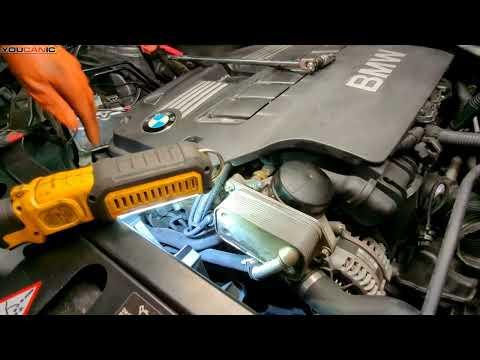

• Use a flashlight to locate the belt, tensioner, and pulleys at the front of the engine.
• Use a paint marker to mark the belt’s direction (an arrow). This helps you compare routing.

Step 3: Note the belt routing

• Take a photo of the belt wrapped around all pulleys (crank pulley at the bottom, alternator, A/C compressor, and idlers).
• If there is a routing diagram sticker near the radiator support, photograph that too.
• Tip: Misrouting is the #1 beginner mistake.

Step 4: Release belt tension

• Fit a 16mm socket and long breaker bar (3/8" drive) onto the belt tensioner bolt head.
• A breaker bar is a long-handled tool that gives extra leverage to rotate stubborn fasteners.
• Rotate the tensioner smoothly to relieve tension (keep steady pressure; it is spring-loaded).
• While holding the tensioner back, slide the belt off the easiest-to-reach upper pulley using your free hand.
• Slowly return the tensioner to its resting position—don’t let it snap back.

Step 5: Remove the old belt and inspect pulleys

• Pull the belt out from the remaining pulleys and remove it from the engine bay.
• Spin each idler pulley by hand. It should spin smoothly and quietly with no wobble.
• Check the tensioner pulley for roughness or noise when spun by hand.
• If a pulley feels gritty, loose, or noisy, plan to replace that pulley/tensioner now.

Step 6: Install the new belt (route first, then tension last)

• Route the new belt around the pulleys following your photo/diagram. Make sure the ribbed side sits in ribbed pulleys.
• Leave one easy upper pulley for last (so you can “slip” the belt on after tension is released).
• Use the 16mm socket and long breaker bar (3/8" drive) to rotate the tensioner again.
• Slide the belt onto the final pulley while holding the tensioner back.
• Slowly release the tensioner and confirm the belt centers properly on every pulley.
• Tip: If one rib is off, remove and re-seat.

Step 7: Reinstall access panels and hardware

• Reinstall any covers/ducting removed earlier using a Torx T25 screwdriver and/or 8mm socket.
• Reinstall the undertray using a 8mm socket and Torx T20 screwdriver.
• If you removed bolts (not just small screws/clips), tighten them snugly with a ratchet (3/8" drive) and then verify with a torque wrench (10–60 Nm range) where applicable. Tip: Plastic fasteners are easy to strip.

Step 8: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Make sure the terminal is fully seated and tight (no movement by hand).

---

✅ After Repair

• Start the engine and watch the belt for 20–30 seconds. It should run smoothly with no wobble.
• Listen for squealing, chirping, or grinding noises (these often point to a failing pulley or misrouted belt).
• Turn A/C on and off and re-check for noise changes (A/C load can reveal slipping).
• After a short test drive, re-check visually that the belt is still centered on every pulley.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $185-$360 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

Assumption: Steps cover the common N20 accessory belt layout used on this X3; routing may vary slightly with options.
