🔧 Q3 - Serpentine Belt Replacement

The serpentine belt (drive belt) runs the alternator and A/C compressor. Replacing it is mostly about safely getting access, releasing the spring-loaded tensioner, and routing the new belt correctly.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: your Q3 uses the spring tensioner with a 16mm hex.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine—hot components can burn you.
• ⚠️ Support the vehicle with jack stands before going under or removing a wheel.
• ⚠️ Keep fingers clear of the tensioner and pulleys; the tensioner is spring-loaded and can snap back.
• ⚠️ If you remove the wheel/liner, keep the key away from the vehicle so no one starts it.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 17mm socket
• 1/2" drive breaker bar
• 16mm combination wrench
• Serpentine belt tool (specialty)
• Torx T25 screwdriver
• Torx T30 screwdriver
• Flat trim tool
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Serpentine belt tensioner - Qty: 1 (optional if weak/noisy)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Take a quick photo of the belt routing (or draw a sketch) before removal.
• Locate the belt tensioner: it’s the spring-loaded arm with a pulley. The “hex” you turn is the 16mm bolt head on the tensioner arm.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the right-front corner and remove the wheel

• Use a 17mm socket and 1/2" breaker bar to loosen the right-front wheel bolts 1/2 turn while the tire is on the ground.
• Lift with a floor jack at the proper jack point and set the vehicle onto jack stands.
• Remove the wheel bolts with the 17mm socket and take the wheel off.
• When reinstalling later: Torque to 120 Nm (89 ft-lbs).

Step 2: Remove the right-front fender liner section for access

• Use a Torx T25 screwdriver and Torx T30 screwdriver to remove the liner screws along the rear/inner side of the wheel well.
• If there are plastic clips, pop them out gently using a flat trim tool.
• Pull the liner back enough to see the belt and pulleys clearly. Use a flashlight.
• Bag the screws so none get lost.

Step 3: Inspect the belt routing and pulleys

• With the flashlight, look at how the belt wraps around each pulley.
• Spin any easy-to-reach pulleys by hand (engine OFF). They should feel smooth and quiet—no grinding.
• If the tensioner pulley wobbles or feels rough, plan to replace the tensioner.

Step 4: Release belt tension

• Put a 16mm combination wrench (or serpentine belt tool (specialty)) on the 16mm hex of the belt tensioner.
• Rotate the tensioner smoothly to relieve tension. (It will feel strong—that’s normal.)
• While holding the tensioner rotated, slide the belt off the easiest-to-reach smooth pulley.
• Slowly let the tensioner return to rest—do not let it snap back.
• Keep knuckles clear of pinch points.

Step 5: Remove the old belt

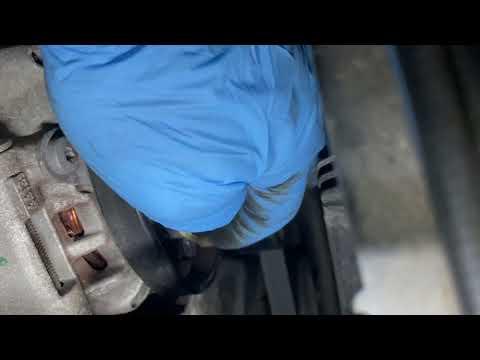

• Work the belt off the remaining pulleys by hand, using mechanic gloves for grip.
• Compare the old belt to the new one (length and rib count should match).

Step 6: Install the new belt (route it correctly)

• Route the new belt around the pulleys following your photo/sketch.
• Make sure the ribbed side of the belt sits in the grooved pulleys, and the smooth side runs on smooth pulleys.
• Before applying tension, double-check the belt is fully seated in every pulley groove.
• If it’s off by one rib, it will shred fast.

Step 7: Apply tension and seat the belt

• Use the 16mm combination wrench or serpentine belt tool (specialty) to rotate the tensioner again.
• Slip the belt onto the last pulley.
• Slowly release the tensioner.
• Re-check belt alignment on every pulley with the flashlight.

Step 8: Reinstall the fender liner and wheel

• Reposition the liner and install the screws using the Torx T25 screwdriver and Torx T30 screwdriver.
• Reinstall the wheel and hand-thread all wheel bolts first.
• Lower the vehicle off the jack stands using the floor jack.
• Tighten wheel bolts in a star pattern: Torque to 120 Nm (89 ft-lbs) using the 17mm socket.

---

✅ After Repair

• Start the engine and let it idle for 30–60 seconds while you listen for squeal or slapping.
• With the engine OFF, do a final visual check with a flashlight to confirm the belt is centered on all pulleys.
• If you hear chirping/squeal, shut it down and re-check belt routing and pulley alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$400 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
