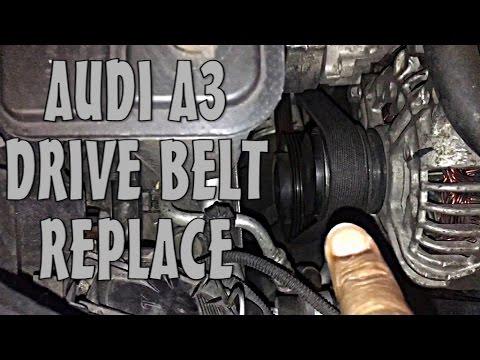

🔧 A3 - Serpentine Belt Replacement

The serpentine belt (also called the accessory drive belt) spins key accessories like the alternator and A/C compressor. Replacing a worn, cracked, or squealing belt helps prevent a sudden breakdown and protects the belt-driven components.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; belts and pulleys can burn you.
• ⚠️ Keep fingers, hair, and clothing away from pulleys at all times.
• ⚠️ Support the car with jack stands if you lift it; never rely on a jack alone.
• ⚠️ Battery disconnect is not required, but remove the key and keep the engine OFF.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 17mm socket
• Breaker bar 1/2"
• Torx T25 driver
• Torx T30 driver
• 10mm socket
• 16mm combination wrench
• Serpentine belt tool (long-handled) (specialty)
• Flashlight
• Mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Serpentine belt tensioner assembly - Qty: 1 Replace if noisy or weak.
• Idler pulley - Qty: 1 Replace if rough or noisy.

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and use a flashlight to find the belt routing diagram (often on a sticker) or take a clear photo of the belt path.
• Plan access: on your A3, the easiest access is typically through the passenger-side front wheel well.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the front-right corner and remove the wheel

• Use a 17mm socket with a breaker bar 1/2" to loosen the front-right wheel bolts slightly while the car is on the ground.
• Lift using a floor jack (rated 2-ton minimum) and support the car with jack stands (rated 2-ton minimum).
• Remove the wheel bolts using the 17mm socket and take the wheel off.

Step 2: Remove the lower splash shield / wheel liner section (access panel)

• Use a Torx T25 driver and Torx T30 driver to remove the screws holding the lower splash shield and the front portion of the wheel liner (just enough to reach the belt area).
• If there are small fasteners near the edge, remove them with a 10mm socket.
• Keep screws grouped by location.

Step 3: Inspect the belt routing and pulleys

• Use a flashlight and confirm the belt path around each pulley before removal.
• Spin any easy-to-reach smooth pulleys by hand (idler/tensioner pulley). They should spin smoothly and quietly.
• If you feel grinding, wobble, or hear noise, plan to replace the idler pulley and/or tensioner assembly.

Step 4: Release belt tension (move the tensioner)

• Locate the belt tensioner. It has a spring-loaded arm and a pulley pressing on the belt.
• Place a 16mm combination wrench (or serpentine belt tool (long-handled) (specialty)) on the tensioner’s hex boss.
• Rotate the tensioner smoothly to relieve tension, then slide the belt off the nearest easy pulley (often the alternator pulley).
• Move slowly—spring tension is strong.

Step 5: Remove the old belt

• With tension released, pull the belt out of the remaining pulleys by hand.
• Compare the old belt to the new belt (length and rib count should match).

Step 6: Install the new belt (route it correctly)

• Route the new belt around the pulleys following your photo/diagram. Make sure the ribbed side sits in the ribbed pulleys and the smooth side runs on smooth pulleys.
• Leave the easiest pulley for last (typically the alternator) so you can slip the belt on once tension is released.
• Use the 16mm combination wrench or serpentine belt tool (long-handled) (specialty) to rotate the tensioner again and slide the belt fully onto the last pulley.
• Visually confirm the belt ribs are centered in every grooved pulley.

Step 7: Reinstall shields/liner and wheel

• Reinstall the wheel liner/splash shield using the Torx T25 driver, Torx T30 driver, and 10mm socket as removed.
• Reinstall the wheel and hand-thread the bolts.
• Lower the car off the jack stands (rated 2-ton minimum) using the floor jack (rated 2-ton minimum).
• Tighten the wheel bolts with a 17mm socket and breaker bar 1/2" to Torque to 120 Nm (89 ft-lbs).

Step 8: Final belt alignment check

• Use a flashlight to check the belt is seated correctly on every pulley.
• Make sure no tools or fasteners are left in the engine bay or wheel well.

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds while you watch the belt (from a safe distance).
• Listen for squeal, chirping, or slapping sounds. Shut the engine off immediately if the belt walks off a pulley.
• Recheck belt seating with a flashlight after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$380 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
