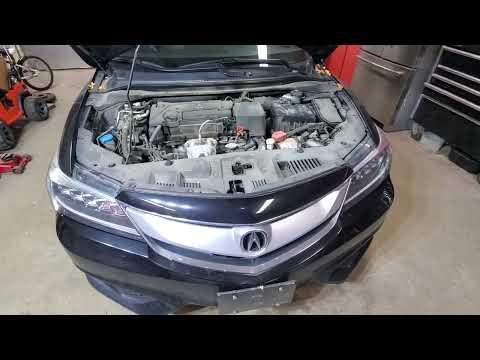

🔧 ILX - Serpentine Belt Replacement

Your ILX uses one drive belt (often called the serpentine belt) to run accessories like the alternator and A/C. Replacing it is mostly about safely releasing the automatic belt tensioner, swapping the belt, and confirming the new belt is routed correctly.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

Assumption: Factory accessory belt with automatic tensioner.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands clear of pulleys.
• ⚠️ Support the car with jack stands before going underneath.
• ⚠️ Do not start the engine with fingers/tools near the belt path.
• ⚠️ If you remove the wheel, torque the lug nuts correctly after.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 19mm socket
• 1/2" drive breaker bar
• 14mm box-end wrench
• Serpentine belt tool with 14mm socket (specialty)
• Trim clip remover tool
• Flat-blade screwdriver
• Flashlight
• Torque wrench (20-150 Nm range)
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Engine under-cover / splash shield clips - Qty: 1 set (as needed)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and use a flashlight to locate the belt and tensioner.
• If you have a belt routing sticker, take a clear photo for reference.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the right-front corner (for access)

• Use a 19mm socket and 1/2" breaker bar to loosen the right-front lug nuts 1/2 turn (do not remove yet).
• Use a floor jack to lift the right-front jacking point.
• Set the car onto jack stands and give the car a gentle shake to confirm it’s stable.
• Remove the wheel using the 19mm socket.
• Reinstall lug nuts later: Torque to 108 Nm (80 ft-lbs).

Step 2: Remove the splash shield (if equipped)

• Use a trim clip remover tool to pop out plastic clips. (A trim clip remover is a forked tool that pulls push-clips without breaking them.)
• Use a flat-blade screwdriver as needed for stubborn clips.
• Fold the splash shield back enough to clearly see the belt and tensioner.

Step 3: Confirm the belt routing

• Use a flashlight to trace the belt around each pulley.
• Take a photo or draw a quick sketch. This prevents misrouting later.

Step 4: Release tension from the automatic tensioner

• Place a 14mm box-end wrench (or serpentine belt tool with 14mm socket (specialty)) onto the tensioner’s hex.
• Slowly rotate the tensioner to relieve belt tension. (The tensioner is a spring-loaded arm that keeps the belt tight.)
• While holding the tensioner back, slip the belt off the easiest-to-reach smooth pulley.
• Carefully let the tensioner return to its resting position—do not let it snap back.

Step 5: Remove the old belt

• Pull the belt out through the wheel well opening by hand.
• Spin each pulley by hand (no tools) and listen/feel for roughness or wobble.

Step 6: Install the new belt

• Route the new belt according to your photo/sketch, leaving one easy pulley for last.
• Make sure the ribbed side of the belt sits in the ribbed pulley grooves, centered.
• Use the 14mm box-end wrench or serpentine belt tool with 14mm socket (specialty) to rotate the tensioner again.
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Use a flashlight to verify the belt is fully seated on every pulley.

Step 7: Reassemble

• Reinstall the splash shield using the trim clip remover tool and any replacement clips by hand.
• Reinstall the wheel using the 19mm socket.
• Lower the car with the floor jack, then use a torque wrench (20-150 Nm range) to tighten lug nuts in a star pattern: Torque to 108 Nm (80 ft-lbs).

---

✅ After Repair

• Start the engine and let it idle while watching the belt for 15-30 seconds. It should run straight with no wobble.
• Listen for squealing, chirping, or slapping noises; shut off immediately if you hear anything abnormal.
• After a short 5-10 minute drive, recheck belt alignment with a flashlight.

---

💰 DIY vs Shop Cost

Shop Cost: ₹4,000-₹9,000 (parts + labor)

DIY Cost: ₹900-₹2,500 (parts only)

You Save: ₹3,100-₹6,500 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
