🔧 Malibu - Serpentine Belt Replacement

The serpentine belt drives accessories like the alternator and A/C. On your Malibu, you’ll release the automatic belt tensioner, slip the old belt off, then route and install the new belt using the factory routing diagram.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

Assumption: 1.5L uses a spring tensioner released with a 15mm hex.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; belts and pulleys can burn you.
• ⚠️ Keep fingers/hair/clothing away from pulleys at all times.
• ⚠️ Support the car with jack stands if you remove the RF wheel; never rely on a jack.
• ⚠️ Do not start the engine until tools are fully removed from the belt area.
• 🔋 Battery disconnect is not required, but keep the key away from the car to prevent an accidental start.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive ratchet
• 15mm socket
• 3" extension (1/2" drive)
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Flathead screwdriver
• Flashlight
• Torque wrench (10-200 Nm range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Serpentine belt tensioner - Qty: 1 (recommended if noisy/weak)
• Idler pulley - Qty: 1 (recommended if noisy/rough)
• Fender liner push clips - Qty: 4-8 (only if any break)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the left rear wheel with wheel chocks.
• Open the hood and find the belt routing diagram (usually on the radiator support/underhood label). Take a clear photo with your phone.
• If access is tight from above, plan to remove the right-front wheel and front portion of the splash shield for side access.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the right-front corner (for easiest access)

• Use a 21mm socket with a 1/2" drive breaker bar to loosen (do not remove) the right-front lug nuts.
• Lift the right-front using a floor jack at the proper jacking point, then set the car onto jack stands.
• Remove the wheel using a 21mm socket and 1/2" drive ratchet.
• Reinstall later and Torque lug nuts to 140 Nm (103 ft-lbs).

Step 2: Move the splash shield / fender liner out of the way

• Use a trim clip removal tool and flathead screwdriver to remove the plastic push-clips/screws at the front of the right fender liner.
• Pull the liner back just enough to see the belt, crank pulley, and tensioner. Use a flashlight to confirm the belt path.
• Tip: Keep clips in a small cup.

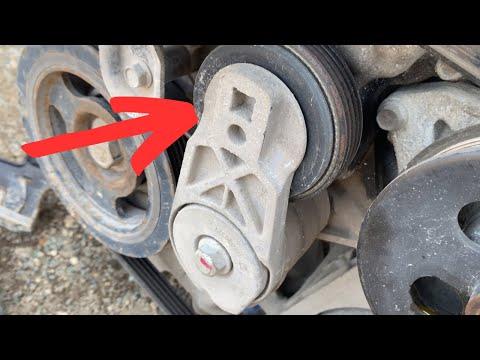

Step 3: Locate the belt tensioner

• Look for the spring-loaded arm with a pulley on it (that’s the tensioner). The “release point” is usually a hex for a socket.
• Fit a 15mm socket onto the tensioner hex using a serpentine belt tool (specialty) or a 1/2" drive ratchet with a 3" extension.
• Serpentine belt tool = long, thin ratchet for tight spaces.

Step 4: Release tension and remove the old belt

• Rotate the tensioner with the serpentine belt tool (specialty) to relieve belt tension (you’ll feel strong spring force).
• While holding the tensioner released, slide the belt off one easy-to-reach smooth pulley (often an idler) using your free hand.
• Slowly let the tensioner return to rest. Do not let it snap back.
• Remove the belt fully by pulling it out through the wheel-well opening.

Step 5: Inspect pulleys before installing the new belt

• Spin each accessible pulley by hand (alternator, idler, tensioner pulley, A/C). They should spin smoothly and quietly.
• If a pulley feels rough, wobbles, or squeals, plan to replace the idler pulley and/or belt tensioner.

Step 6: Route the new belt

• Compare the old belt to the new one (length and rib count) before installation.
• Route the new belt using the underhood routing diagram photo you took.
• Make sure the belt ribs sit fully inside the grooved pulleys (crank/alternator). A belt that’s “one rib off” will shred quickly.
• Leave the belt off one last pulley (usually an upper smooth pulley) to make tensioning easier.

Step 7: Apply tension and seat the belt

• Rotate the tensioner again using the 15mm socket and serpentine belt tool (specialty).
• Slip the belt onto the final pulley.
• Slowly release the tensioner so it tightens the belt.
• Double-check every pulley with a flashlight: the belt must be centered and fully seated.

Step 8: Reassemble the splash shield and wheel

• Reposition the liner and reinstall clips using the trim clip removal tool and flathead screwdriver.
• Reinstall the wheel using a 21mm socket.
• Lower the car and use a torque wrench: Torque lug nuts to 140 Nm (103 ft-lbs) in a star pattern.

---

✅ After Repair

• Start the engine and watch the belt for 20-30 seconds. It should run smooth with no hopping or wandering.
• Listen for squeal, chirp, or grinding. If you hear noise, shut off and re-check belt seating and pulley condition.
• Take a short test drive, then recheck visually to ensure the belt is still centered.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
