🔧 Jetta - Serpentine Belt Replacement

The serpentine belt is the single belt that drives accessories like the alternator and A/C. If it’s cracked, noisy, or slipping, replacing it prevents charging problems and overheating risk (from accessory loss).

Difficulty Level: Intermediate | Estimated Time: 0.5–1.5 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a cool engine; keep hands away from moving pulleys.
• 🛑 If lifting the car, support it with jack stands—never rely on a jack alone.
• 🛑 Keep the key away from the car so no one can start it while your hands are near the belt.
• 🛑 Battery disconnect is not required, but avoid shorting tools on the alternator wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 17mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Torx T25 bit
• Torx T30 bit
• 10mm socket
• 16mm combination wrench
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Flashlight
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Open the hood and remove the key/fob from the vehicle area.
• Use a flashlight to find the belt routing sticker (often on the radiator support). If you can’t find it, take a clear photo of the belt path before removal.
• Plan your access: many people find it easiest from underneath after removing the lower engine cover.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine top cover (if equipped)

• Lift the cover straight up by hand; it’s held by rubber grommets.
• If you see any intake snorkel/duct blocking access, loosen fasteners using a 10mm socket and 3/8" ratchet, then move it aside.
• Tip: Set bolts in a cup so you don’t lose them.

Step 2: Lift the front of the car for lower access

• Place wheel chocks behind the rear wheels.
• Lift the front using a floor jack at the proper front center jack point, then support with jack stands at the pinch welds.
• Give the car a gentle shake to confirm it’s stable before getting underneath.

Step 3: Remove the lower engine cover (belly pan)

• Remove the fasteners using a Torx T25 bit or Torx T30 bit with a 3/8" ratchet and extension.
• If any plastic push-clips are present, remove them with a trim clip removal tool.
• Reinstall later and Torque to 2 Nm (18 in-lbs) for the small underbody screws (snug only—do not strip plastic).

Step 4: Locate the belt tensioner and release tension

• Find the spring-loaded belt tensioner (it’s the arm that keeps the belt tight).
• Put a 16mm combination wrench on the tensioner hex, or use a serpentine belt tool (specialty) for better leverage in tight space. (A serpentine belt tool is a thin long handle made for tight engine bays.)
• Rotate the tensioner smoothly to relieve belt tension.
• While holding the tensioner, slide the belt off the easiest-to-reach smooth pulley.
• Slowly let the tensioner return—do not let it snap back.
• Tip: Keep fingers clear of pinch points.

Step 5: Remove the old belt and compare lengths

• Pull the belt out from around the pulleys.
• Lay the old and new belts side-by-side to confirm the new one matches length and rib count.
• If the old belt is shredded, use a paint marker to mark any pulley that feels rough or wobbly so you can inspect it more closely.

Step 6: Route the new belt correctly

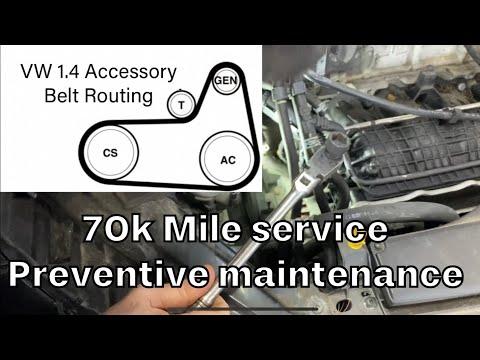

• Route the new belt around the pulleys following the routing diagram or the photo you took.
• Make sure the ribbed side of the belt sits fully in the grooves on ribbed pulleys.
• Leave the easiest pulley for last (usually a smooth idler/tensioner pulley).

Step 7: Re-apply tension and seat the belt

• Rotate the tensioner again using the 16mm combination wrench or serpentine belt tool (specialty).
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Use the flashlight to check every pulley: the belt must be centered and fully seated in every groove.

Step 8: Reinstall the belly pan and lower the car

• Reinstall the lower engine cover using the Torx T25 bit / Torx T30 bit, 3/8" ratchet, and extension.
• Torque to 2 Nm (18 in-lbs) for small underbody screws.
• Remove jack stands and lower the car using the floor jack.

Step 9: If you removed a wheel (only if needed)

• Install wheel bolts by hand first, then snug using a 17mm socket and 3/8" ratchet.
• With the car on the ground, Torque to 120 Nm (89 ft-lbs) using a 17mm socket.

---

✅ After Repair

• Start the engine and watch the belt for 15–30 seconds—it should run smoothly with no wobble.
• Listen for squeal or ticking. If you hear noise, shut the engine off and re-check belt seating on every pulley.
• After a short test drive, do one more quick visual check for proper tracking.

---

💰 DIY vs Shop Cost

Shop Cost: ₹4,000–₹9,000 (parts + labor)

DIY Cost: ₹1,500–₹3,500 (parts only)

You Save: ₹2,500–₹5,500 by doing it yourself!

Shop labor rates vary but typically run ₹800–₹2,000/hour. This repair takes a shop approximately 0.5–1.0 hours.

---
