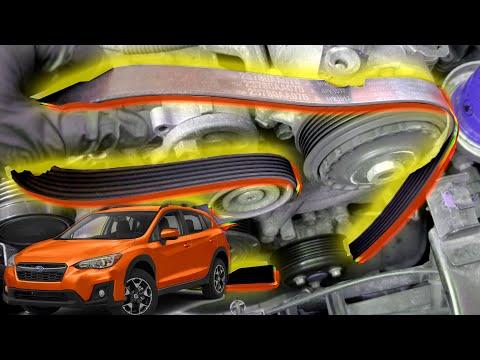

🔧 Crosstrek - Serpentine Belt Replacement

The serpentine belt (also called the accessory drive belt) spins your alternator and A/C compressor. If it’s cracked, squealing, or glazed, replacing it prevents loss of charging and overheating-related problems.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands away from hot parts.
• ⚠️ Key out of ignition; never work near a moving belt.
• ⚠️ Keep fingers clear when releasing the belt tensioner; it is spring-loaded.
• ⚠️ Battery disconnect is not required, but avoid shorting tools on the battery terminals.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension
• Trim clip removal tool
• 14mm box wrench
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the hood.
• Take a clear photo of the belt routing before removal. This saves lots of frustration.
• If your Crosstrek has an upper air snorkel/duct blocking access, plan to remove it first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Create working room at the front of the engine

• Use a flashlight to locate the belt path around the pulleys.
• If an intake snorkel/upper duct is in the way, remove it using a 10mm socket, 1/4" ratchet, and 6" extension.
• If plastic clips are used, pop them out with a trim clip removal tool.

Step 2: Relieve belt tension (spring-loaded tensioner)

• Find the belt tensioner (the spring-loaded arm with a pulley).
• Place a 14mm box wrench on the tensioner’s hex/boss and rotate the tensioner to relieve belt tension.
• While holding the tensioner released, slide the belt off one easy-to-reach pulley (usually the alternator pulley) by hand.
• Move slowly—spring force is strong.

Step 3: Remove the old belt

• With the belt now loose, let the tensioner return gently to rest.
• Remove the belt from the remaining pulleys by hand and pull it out of the engine bay.
• Inspect pulleys with a flashlight for wobble or rough spinning by hand.

Step 4: Route the new belt correctly

• Compare the new belt to the old belt length/width before installing.
• Route the new belt around the pulleys following your photo (leave the most accessible pulley for last).
• Make sure the belt ribs sit fully in the ribbed pulleys’ grooves (not riding on an edge).

Step 5: Reapply tension and seat the belt

• Use the 14mm box wrench to rotate the tensioner again to create slack.
• Slip the belt onto the final pulley, then slowly release the tensioner.
• Recheck every pulley with a flashlight: the belt must be centered and fully seated.
• If it’s off by one rib, redo it.

Step 6: Reinstall the intake snorkel/duct (if removed)

• Reinstall the snorkel/duct using the 10mm socket, 1/4" ratchet, and 6" extension.
• Reinstall any push-clips using the trim clip removal tool.
• Torque: If any 10mm bolts were removed, snug them firmly by hand; Subaru does not require high torque here and overtightening can crack plastic.

---

✅ After Repair

• Start the engine and watch the belt for 15–30 seconds; it should run smoothly with no wandering.
• Listen for squeal or ticking. If present, shut off and recheck belt seating on every pulley.
• After a short drive, do a quick recheck to confirm the belt is still centered.

---

💰 DIY vs Shop Cost

Shop Cost: ₹3,500-₹8,000 (parts + labor)

DIY Cost: ₹1,200-₹3,000 (parts only)

You Save: ₹2,300-₹5,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
