🔧 Pilot - Serpentine Belt Replacement

The serpentine belt drives key accessories like the alternator and A/C compressor. If it’s cracked, squealing, or glazed, replacing it prevents loss of charging and overheating.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

Assumption: belt access is through right-front wheel well.

---

⚠️ Safety & Precautions

• 🧤 Work on a cool engine; keep hands clear of fans and pulleys.
• 🧯 Support your Pilot with jack stands; never rely on a floor jack alone.
• 🔌 Keep keys away so no one can start it while your hands are near the belt.
• 🧷 Do not put fingers between belt and pulleys while releasing the tensioner.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• 1/2" drive breaker bar
• Torque wrench (30-150 ft-lbs range)
• 10mm socket
• Ratchet (3/8" drive)
• 14mm box wrench
• Trim clip removal tool
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Fender liner / splash shield push clips - Qty: 2-6
• Serpentine belt tensioner assembly - Qty: 1 (optional if noisy/weak)
• Idler pulley - Qty: 1 (optional if bearing is noisy)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Locate the belt routing diagram (often on the radiator support/underhood area). If it’s missing, take a clear photo of the current routing before removal.
• Understand the tensioner: the belt tensioner is a spring-loaded arm that keeps the belt tight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the right-front corner

• Use a 19mm socket and 1/2" breaker bar to loosen the right-front lug nuts about 1/2 turn (do not remove yet).
• Use a floor jack (rated 3-ton minimum) to lift the right-front jacking point.
• Set the vehicle securely on jack stands (rated 3-ton minimum).
• Remove the wheel with the 19mm socket.

Step 2: Remove the splash shield/fender liner access panel

• Use a trim clip removal tool to remove push clips without breaking them.
• Use a 10mm socket and ratchet (3/8" drive) to remove any small bolts holding the access panel.
• Set clips/bolts aside in a tray so nothing gets lost.
• If reinstalling 10mm bolts: Torque to 10 Nm (7 ft-lbs).

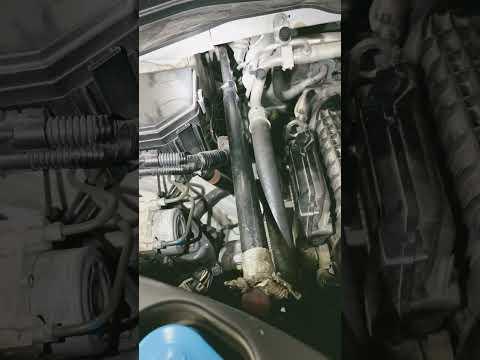

Step 3: Relieve belt tension

• Shine a flashlight to find the belt tensioner pulley and the tensioner’s wrench point.
• Place a 14mm box wrench on the tensioner’s hex and rotate the tensioner to release tension. Move slowly; it’s spring-loaded.
• While holding the tensioner rotated, slide the belt off the easiest-to-reach pulley (often the alternator or a smooth idler).
• Carefully let the tensioner return to its resting position (do not let it snap back).

Step 4: Remove the old belt and check pulleys

• Pull the belt out through the wheel-well opening.
• Spin the idler and tensioner pulleys by hand. They should be smooth and quiet (no grinding, wobble, or rough spots).
• Look for oil or coolant on the belt path. Fluids can destroy a new belt quickly.

Step 5: Route the new belt

• Compare the new belt to the old one (length and rib count must match).
• Route the belt using the underhood routing diagram. Make sure the ribbed side sits in ribbed pulleys, and the smooth side rides on smooth pulleys.
• Leave one easy pulley for last (commonly the alternator pulley) so you have room to slip it on.
• Pro tip: Double-check every groove is seated.

Step 6: Apply tension and finish installation

• Use the 14mm box wrench to rotate the tensioner again.
• Slip the belt fully onto the last pulley.
• Slowly release the tensioner so it applies tension to the belt.
• Visually inspect: the belt must be centered on every pulley and fully in the grooves.

Step 7: Reinstall splash shield and wheel

• Reinstall the access panel using the 10mm socket and ratchet (3/8" drive).
• Reinstall push clips with the trim clip removal tool (or press by hand if they’re the push-pin style).
• Reinstall the wheel and hand-thread lug nuts.
• Lower the Pilot off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Use a torque wrench (30-150 ft-lbs range) to tighten lug nuts in a star pattern: Torque to 127 Nm (94 ft-lbs).

---

✅ After Repair

• Start the engine and let it idle while you watch the belt for 30-60 seconds (no wandering, no wobble, no chirping).
• Turn the A/C on and off and listen for squeal. A brief initial noise can happen, but it should not continue.
• After a short test drive, recheck belt alignment with the flashlight.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
