🔧 Pilot - Serpentine Belt Replacement

The serpentine belt drives accessories like the alternator and A/C. On your Pilot, replacement is mainly about safely relieving the automatic belt tensioner, swapping the belt, and confirming the belt ribs are seated correctly on every pulley.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot pulleys can burn you.
• ⚠️ Support the SUV with jack stands before going under the fender area.
• ⚠️ Keep fingers clear of the tensioner while releasing/returning it.
• ⚠️ Do not start the engine until all tools are out of the belt area.
• Battery disconnect is not required, but it’s safer to remove the negative cable if you’re nervous around moving parts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 19mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-150 ft-lb range)
• 10mm socket
• 3/8" drive ratchet
• 14mm socket
• Trim clip remover
• Flathead screwdriver
• Flashlight
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and find the belt routing diagram (usually on the underside of the hood or near the radiator support). If it’s missing, take a clear photo of the current belt routing before removal.
• If disconnecting the battery: use a 10mm socket to remove the negative terminal and set it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use a 10mm socket and 3/8" drive ratchet to remove the engine cover fasteners (or pull up if it’s a pop-on style).
• Set the cover aside.

Step 2: Raise the right-front and remove the wheel

• Use a 19mm socket and 1/2" drive breaker bar to loosen the right-front lug nuts 1/2 turn while the tire is still on the ground.
• Lift using a floor jack and support the vehicle with jack stands.
• Remove the lug nuts with the 19mm socket.
• Remove the wheel.
• During reinstall later: Torque to 127 Nm (94 ft-lb) using a 1/2" drive torque wrench.

Step 3: Remove the right-front inner fender splash shield (access panel area)

• Use a trim clip remover and flathead screwdriver to remove the plastic clips/screws holding the access portion of the liner.
• Pull the liner back enough to clearly see the belt and pulleys.
• Tip: Keep clips grouped by location.

Step 4: Confirm belt routing before removal

• Use a flashlight to locate all pulleys the belt runs on.
• Use a paint marker to mark the belt direction (an arrow) in case you’re reinstalling temporarily.
• Reference the under-hood belt routing diagram and compare what you see now.

Step 5: Release the automatic tensioner

• Locate the belt tensioner (spring-loaded arm with a pulley).
• Install a 14mm socket on the tensioner’s hex boss/bolt head.
• Use the 1/2" drive breaker bar to rotate the tensioner smoothly to relieve belt tension.
• Definition: The “tensioner” is a spring-loaded part that keeps the belt tight automatically.

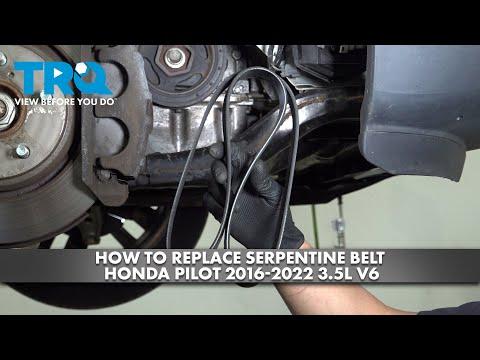

Step 6: Remove the old belt

• While holding the tensioner released with the breaker bar, slip the belt off one easy-to-reach pulley using your free hand.
• Slowly let the tensioner return to its resting position (don’t let it snap back).
• Remove the belt from the remaining pulleys and take it out through the fender opening.

Step 7: Route the new belt

• Match the new belt length and rib count to the old belt before installing.
• Route the belt around the pulleys following the under-hood diagram.
• Make sure the ribbed side sits in ribbed pulleys, and the smooth side rides on smooth pulleys.
• Leave the easiest upper pulley (or a smooth idler pulley) for last so it’s simpler to slip on when the tensioner is released.

Step 8: Re-apply tension and seat the belt

• Use the 14mm socket and 1/2" drive breaker bar to rotate the tensioner again.
• Slip the belt fully onto the last pulley, then slowly release the tensioner.
• Use the flashlight to verify the belt is centered on every pulley and the ribs are not riding on an edge.
• Tip: Misalignment will shred the belt fast.

Step 9: Reinstall the splash shield and wheel

• Reposition the liner and reinstall fasteners using the trim clip remover and flathead screwdriver.
• Reinstall the wheel and hand-thread all lug nuts.
• Lower the vehicle, then use a 1/2" drive torque wrench and 19mm socket: Torque to 127 Nm (94 ft-lb) in a star pattern.

Step 10: Reinstall engine cover and reconnect battery (if disconnected)

• Reinstall the engine cover using a 10mm socket and 3/8" drive ratchet.
• If disconnected: reconnect the negative battery terminal using a 10mm socket (snug, do not over-tighten).

---

✅ After Repair

• Start the engine and watch the belt for 15–30 seconds. It should run smoothly with no wandering.
• Turn A/C on and off and listen for squeal. A brief chirp can mean the belt isn’t fully seated on a ribbed pulley.
• Shut the engine off and do one final visual check with a flashlight.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$80 (parts only)

You Save: $145-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
