🔧 Grand Cherokee - Serpentine Belt Replacement

Your A/C, alternator, and power steering (if equipped) are driven by the serpentine belt. If it’s cracked, noisy, or slipping, replacing it prevents loss of charging, overheating, and accessory failure.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a cool engine; hot pulleys and radiator area can burn you.
• 🛑 Support your A4WD system vehicle securely: use jack stands, not just a jack.
• 🛑 Keep fingers clear of the tensioner and pulleys; the spring tension snaps back fast.
• 🛑 No battery disconnect is required for belt-only replacement, but keep the key away so no one starts it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 22mm socket
• 1/2" drive breaker bar
• 15mm socket
• 3/8" drive ratchet
• Trim clip removal tool
• Flat-blade screwdriver
• Work light
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Fender liner push clips - Qty: 2-6 (handy to have)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and find the belt routing diagram (usually on the radiator support/underhood area). If it’s missing, tell me and I’ll walk you through the routing.
• Chock the rear wheels using wheel chocks.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Break the right-front wheel lug nuts loose

• Use a 22mm socket and 1/2" drive breaker bar to loosen the lug nuts about 1/2 turn while the tire is still on the ground.

Step 2: Lift and support the right-front corner

• Use a floor jack (rated 3-ton minimum) to lift at the proper jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum).
• Give the vehicle a gentle shake to confirm it’s stable before you crawl near the wheel well.

Step 3: Remove the right-front wheel

• Remove the lug nuts using the 22mm socket and take the wheel off.
• Set the wheel under the vehicle as an extra safety backup.

Step 4: Remove the right-front inner fender liner section (for access)

• Use a trim clip removal tool and flat-blade screwdriver to remove the plastic clips/screws holding the front section of the liner.
• Pull the liner back enough to clearly see the belt and the belt tensioner.
• Pro tip: Keep clips grouped by location.

Step 5: Note the belt routing

• Use a work light and compare what you see to the underhood routing diagram.
• If needed, take a clear photo before removing the old belt.

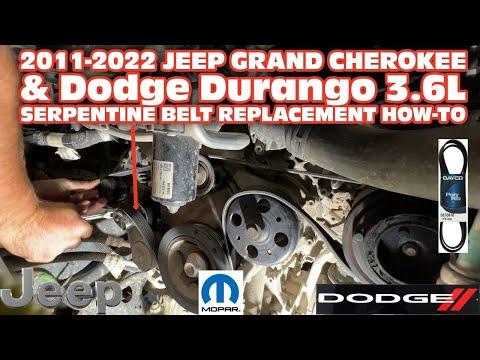

Step 6: Relieve belt tension

• Install a 15mm socket on the belt tensioner bolt/pulley hub and use a 3/8" drive ratchet (or 1/2" drive breaker bar if needed) to rotate the tensioner and unload the belt.
• “Tensioner” means the spring-loaded pulley that keeps the belt tight.
• While holding the tensioner back, slide the belt off one easy-to-reach smooth pulley.
• Slowly release the tensioner back to its resting position. Do not let it snap back.

Step 7: Remove the old belt and inspect pulleys

• Pull the belt out through the wheel well opening.
• Spin each pulley by hand and listen/feel for roughness or grinding.
• If any pulley wobbles or sounds gritty, stop and tell me which one—an idler/tensioner may need replacement too.

Step 8: Route the new belt

• Feed the new belt into place through the wheel well.
• Route it around the pulleys following the underhood diagram, leaving one easy pulley for last.
• Make sure the belt ribs sit fully in the ribbed pulleys (no ribs hanging off). Smooth pulleys ride on the smooth back of the belt.

Step 9: Apply tension and final-check alignment

• Use the 15mm socket and 3/8" drive ratchet to rotate the tensioner again.
• Slip the belt over the last pulley, then slowly release the tensioner.
• Re-check every pulley: the belt must be centered and seated in every groove.

Step 10: Reinstall fender liner and wheel

• Reinstall the liner using the trim clip removal tool and flat-blade screwdriver to refit clips.
• Install the wheel and hand-thread lug nuts.
• Lower the vehicle off the jack stands using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using the 22mm socket.
• Torque to 135 Nm (100 ft-lbs).

---

✅ After Repair

• Start the engine and watch the belt for 30–60 seconds; it should run smoothly with no wandering.
• Listen for chirping/squealing. If you hear it, shut off and re-check belt seating on every pulley.
• Do a short test drive, then re-check for any new noises.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $115-$210 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
