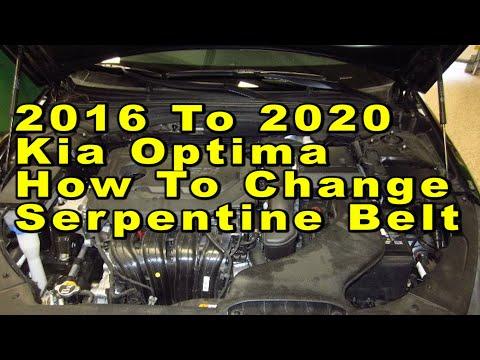

🔧 Optima - Serpentine Belt Replacement

The serpentine belt (accessory drive belt) turns key accessories like the alternator and A/C. On your Optima, replacement is mainly about safely accessing the belt and rotating the spring-loaded belt tensioner to slip the belt off and on.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot pulleys and coolant lines can burn you.
• ⚠️ Keep fingers clear of the tensioner and pulleys; the tensioner is spring-loaded and can snap back.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Remove the key/fob from the car so no one can start it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 21mm lug nut socket
• 1/2" drive breaker bar
• 1/2" drive ratchet
• 3/8" drive ratchet
• 3/8" drive extension set
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• Torque wrench (10-150 ft-lbs range)
• Trim clip remover (specialty)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and locate the belt routing diagram (usually on a sticker in the engine bay). If it’s missing, take a clear photo/sketch of the current routing before removal.
• Pro tip: Take a quick phone video of the belt path.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the right front wheel for access

• Use a 21mm lug nut socket and 1/2" drive breaker bar to slightly loosen the lug nuts (about 1/2 turn) while the tire is still on the ground.
• Lift the right-front using a floor jack at the proper jacking point, then support with jack stands.
• Remove the lug nuts using a 21mm lug nut socket and 1/2" drive ratchet, then remove the wheel.
• Reinstall later: Torque to 88-107 Nm (65-79 ft-lbs).

Step 2: Remove the splash shield / access panel

• In the right-front wheel well, remove the plastic clips using a trim clip remover (specialty).
• Remove any small bolts using a 10mm socket and 3/8" drive ratchet.
• Peel back or remove the access panel/splash shield enough to clearly see the belt and tensioner. Use a flashlight.

Step 3: Identify the belt tensioner and the release point

• Find the automatic belt tensioner (it’s a spring-loaded arm with a pulley). “Automatic” means it holds belt tension by spring force—no manual adjustment bolt.
• Look for the hex head/bolt on the tensioner arm used to rotate it (common sizes on this Optima are 17mm socket or 14mm socket).

Step 4: Release belt tension

• Place a 17mm socket on the tensioner hex and attach a 1/2" drive breaker bar. If the 17mm doesn’t fit, switch to a 14mm socket.
• Rotate the tensioner smoothly to relieve belt tension (you’ll feel strong spring resistance).
• While holding the tensioner rotated, slide the belt off the easiest-to-reach smooth pulley (often an idler or the alternator pulley) with your free hand.
• Slowly let the tensioner return to its resting position. Pro tip: Never let it snap back.

Step 5: Remove the old belt and compare it to the new one

• Remove the old belt from all pulleys by hand and pull it out through the wheel well opening.
• Compare old vs new belt length and rib count (they should match). Use your flashlight for a clear look.

Step 6: Route the new belt (most important step)

• Route the new belt around the pulleys exactly like the under-hood routing diagram.
• Make sure the ribbed side sits fully in the grooves of ribbed pulleys, and the smooth side rides on smooth pulleys.
• Leave the easiest pulley for last (usually a smooth idler pulley) so you can slip the belt on after releasing tension.

Step 7: Apply tension and seat the belt

• Rotate the tensioner again using the 17mm socket (or 14mm socket) and 1/2" drive breaker bar.
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Visually confirm the belt is centered on every pulley. Use a flashlight and check from multiple angles.
• Pro tip: One mis-seated rib will shred the belt.

Step 8: Reinstall the splash shield and wheel

• Reinstall the splash shield/access panel using a 10mm socket and 3/8" drive ratchet.
• Reinstall all clips using a trim clip remover (specialty) as needed to press them fully in.
• Reinstall the wheel and hand-thread lug nuts.
• Lower the car, then tighten lug nuts in a star pattern using a torque wrench and 21mm lug nut socket: Torque to 88-107 Nm (65-79 ft-lbs).

---

✅ After Repair

• Start your Optima and let it idle while you watch the belt for 30-60 seconds (it should run smoothly with no wobble).
• Listen for chirping/squealing. If you hear noise, shut the engine off and re-check belt alignment on every pulley.
• If the old belt showed cracking/glazing, inspect the tensioner and idler pulleys by spinning them by hand (engine off). Any roughness or wobble means the pulley/tensioner should be replaced.

---

💰 DIY vs Shop Cost

Shop Cost: $160-$320 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $100-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
