🔧 340i - Serpentine Belt Replacement

The serpentine belt (the long belt that drives the alternator/water pump and other accessories) can crack, glaze, or stretch with age. Replacing it restores proper accessory drive and helps prevent a roadside breakdown.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: your 340i uses the B58 layout with a main serpentine belt plus a separate A/C stretch belt.

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine; belts/pulleys get very hot.
• ⚠️ Keep fingers, hair, and clothing away from pulleys at all times.
• ⚠️ Support the car with jack stands before going underneath (never rely on a jack alone).
• ⚠️ Do not start the engine until all tools are removed and the belt is fully seated.
• 🔋 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Safety glasses
• Mechanic gloves
• 8mm socket
• 10mm socket
• Ratchet (3/8")
• 3/8" breaker bar
• 3/8" torque wrench
• Torx T25 bit socket
• Torx T60 bit socket
• 22mm socket
• Flat trim tool
• Work light
• A/C stretch-belt install tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Main serpentine belt - Qty: 1
• A/C stretch belt - Qty: 1
• Serpentine belt tensioner assembly - Qty: 1 (recommended if noisy/weak)
• Idler pulley - Qty: 1 (recommended if noisy/rough)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and remove loose clothing/jewelry.
• Lift the front of the car with a floor jack and set it securely on jack stands.
• Set up a work light so you can clearly see the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (undertray)

• Use a work light to locate the fasteners on the front undertray.
• Remove fasteners using an 8mm socket and Torx T25 bit socket.
• If any plastic clips are present, release them with a flat trim tool.
• Tip: Keep screws grouped by location.

Step 2: Locate the belt system and routing

• From underneath, look up at the front of the engine to find the main serpentine belt (multi-ribbed belt).
• Also identify the A/C stretch belt (a smaller belt typically dedicated to the A/C compressor).
• A tensioner is a spring-loaded arm that keeps belt tension automatically.
• Tip: Take a clear photo of the belt routing.

Step 3: Release tension and remove the main serpentine belt

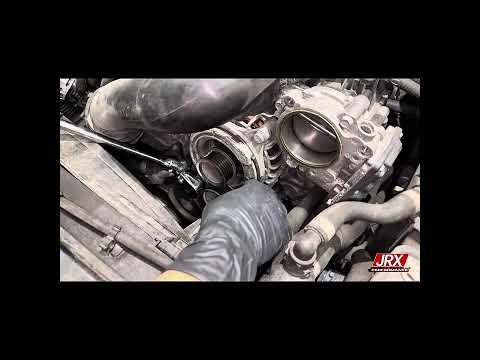

• Install a Torx T60 bit socket on the belt tensioner “release” point.
• Use a 3/8" breaker bar to rotate the tensioner and relieve belt tension.
• While holding the tensioner rotated, slide the belt off a smooth pulley first (easiest to slip off).
• Slowly let the tensioner return to its resting position.
• Remove the belt fully by hand.
• Tip: Move slowly—spring tension is strong.

Step 4: Quick check of pulleys and tensioner

• Spin the idler pulley by hand and listen/feel for roughness or grinding.
• Check the tensioner pulley for wobble or noise.
• If any pulley feels rough, replace it (a bad pulley can shred a new belt quickly).

Step 5: Install the new main serpentine belt

• Route the new belt exactly like your photo, leaving one easy-to-reach pulley for last.
• Make sure the ribs sit fully in the grooved pulleys (no ribs “hanging off”).
• Use the Torx T60 bit socket and 3/8" breaker bar to rotate the tensioner again.
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Visually confirm the belt is centered on every pulley.

Step 6: Remove the old A/C stretch belt (if equipped)

• The A/C belt is a “stretch belt” (it installs by stretching over a pulley; it does not use a tensioner).
• From underneath, carefully cut the old A/C belt off using a flat trim tool to guide it away from hoses/wiring, then pull it free by hand.
• Tip: Don’t pry on the A/C pulley.

Step 7: Install the new A/C stretch belt

• Position the new A/C belt on the crank pulley and A/C compressor pulley as directed by the A/C stretch-belt install tool (specialty) instructions.
• Use a 22mm socket and ratchet (3/8") on the crank bolt to rotate the engine clockwise while the tool walks the belt onto the pulley.
• Rotate slowly until the belt fully seats all the way around.
• Remove the stretch-belt tool and re-check belt alignment.
• Tip: Turn slowly to avoid belt damage.

Step 8: Reinstall the undertray

• Reinstall the undertray using the 8mm socket and Torx T25 bit socket.
• Tighten fasteners snugly; for small underbody fasteners use Torque to 8 Nm (71 in-lbs) where applicable.

---

✅ After Repair

• Before starting, do one last visual check that both belts are fully seated on every pulley.
• Start the engine and let it idle for 30–60 seconds while watching the belts (from a safe distance).
• Listen for chirping/squealing; if you hear it, shut off and re-check alignment.
• Take a short test drive, then re-check for any fresh rubber dust or belt walk.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $50-$150 (parts only)

You Save: $200-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
