🔧 RDX - Serpentine Belt Replacement

The serpentine belt drives key accessories like the alternator and A/C. Replacing it restores proper grip and prevents squealing, charging issues, or an unexpected breakdown if the belt fails.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: Access is through the right front wheel well.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands clear of hot parts.
• ⚠️ Support the RDX on jack stands; never rely on a jack alone.
• ⚠️ Keep fingers out of pulley grooves; the tensioner can snap back.
• ⚠️ No battery disconnect is required, but keep the key off and don’t start the engine until fully reassembled.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• 1/2" drive breaker bar
• 1/2" drive ratchet
• 14mm socket
• 3" socket extension
• Trim clip removal tool
• Flathead screwdriver
• Torque wrench (20–150 ft-lb range)
• Mechanic gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Fender liner / splash shield clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and locate the belt routing diagram (usually a sticker). If it’s missing, take a clear photo of the current routing.
• Lay out tools and a flashlight so you can see the pulleys clearly through the wheel well.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the right front wheel lug nuts

• Use a 19mm socket with a 1/2" breaker bar to crack the lug nuts loose about 1/2 turn while the tire is still on the ground.

Step 2: Raise and support the RDX

• Use a floor jack (rated 3-ton minimum) to lift the right front corner at the proper jacking point.
• Set the vehicle down onto jack stands (rated 3-ton minimum) before you remove the wheel.

Step 3: Remove the right front wheel

• Remove the lug nuts using a 19mm socket and 1/2" drive ratchet.
• Set the wheel aside.

Step 4: Remove the lower splash shield / inner fender access panel

• Use a trim clip removal tool to pop the plastic clips out.
• If a clip is stubborn, use a flathead screwdriver to gently lift the center pin, then pull the clip body out.
• Move the liner/shield out of the way to expose the belt and tensioner.
• Tip: Keep clips in a cup.

Step 5: Relieve belt tension (move the tensioner)

• Locate the belt tensioner (a spring-loaded arm with a pulley). A “tensioner” keeps the belt tight automatically using an internal spring.
• Install a 14mm socket and 3" socket extension on your 1/2" drive ratchet (or 1/2" breaker bar) and place it on the tensioner’s hex boss.
• Rotate the tensioner to release tension (it will feel strong). Hold it steadily—don’t let it snap back.

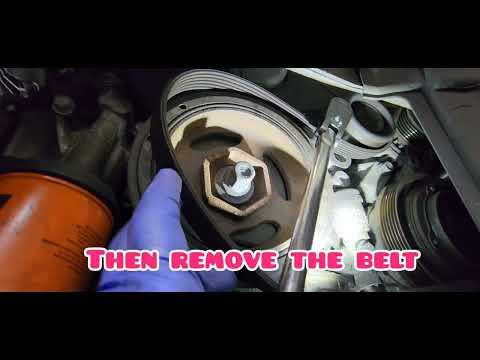

Step 6: Remove the old serpentine belt

• While holding the tensioner released with the 14mm socket, slide the belt off the easiest-to-reach smooth pulley (often the tensioner or idler pulley).
• Slowly let the tensioner return to its resting position.
• Remove the belt from the remaining pulleys and pull it out through the wheel well.

Step 7: Check pulleys and tensioner before installing the new belt

• Spin each pulley by hand and feel for roughness or wobble. Use a flashlight to inspect for cracks or missing ribs on pulleys.
• Look at the tensioner arm position and movement while you rotate it with the 14mm socket; it should move smoothly.
• Tip: Replace noisy pulleys soon.

Step 8: Route the new belt correctly

• Match the new belt to the old one (length and rib count) before installing.
• Route the belt around the pulleys using the under-hood routing diagram.
• Make sure ribbed belt ribs sit fully in the grooves of ribbed pulleys; smooth pulleys ride on the smooth belt back.

Step 9: Apply tension and finish belt installation

• Use the 14mm socket on the tensioner again and rotate it to release tension.
• Slip the belt fully onto the last pulley, then slowly release the tensioner.
• Visually confirm the belt is centered on every pulley (no rib hanging off an edge).

Step 10: Reinstall the splash shield / inner fender liner

• Reposition the liner/shield and reinstall clips using your hands and the trim clip removal tool as needed.
• Replace damaged clips with the new ones from your parts set.

Step 11: Reinstall the wheel and torque lug nuts

• Install the wheel and hand-thread lug nuts.
• Snug lug nuts using a 19mm socket and 1/2" drive ratchet in a star pattern.
• Lower the vehicle using the floor jack.
• Final-tighten with a torque wrench: Torque to 127 N·m (94 ft-lbs) in a star pattern.

---

✅ After Repair

• Start the engine and watch the belt for 30–60 seconds. It should run straight with no wobble.
• Listen for squeal, chirp, or grinding. If you hear noise, shut off the engine and re-check belt alignment.
• Turn A/C on and headlights on to load the system; verify no slipping noises.
• Recheck lug nut torque after a short drive: Torque to 127 N·m (94 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
