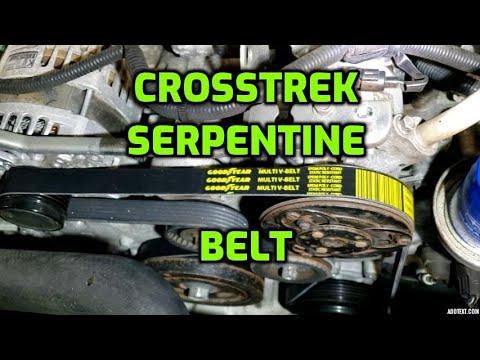

🔧 Crosstrek - Serpentine Belt Replacement

The serpentine belt (also called the accessory/drive belt) spins your alternator and A/C compressor. Replacing it is mostly about safely releasing the spring-loaded tensioner, swapping the belt, and confirming the belt is seated correctly on every pulley.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine—hands and belt can get burned on hot parts.
• ⚠️ Keep fingers, hair, and clothing away from pulleys and the radiator fan area.
• ⚠️ The belt tensioner is spring-loaded; hold the wrench firmly so it doesn’t snap back.
• ⚠️ Battery disconnect is not required, but keep tools away from the alternator electrical terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 14mm combination wrench
• 3/8" drive ratchet
• 14mm socket
• 12mm socket
• 6" extension (3/8" drive)
• Torque wrench (10-60 ft-lbs range)
• Trim clip tool
• Flathead screwdriver
• Work light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, shift to Park, and set the parking brake.
• 🧰 Let the engine cool fully and open the hood.
• 🧰 Tip: Take a quick photo of belt routing.
• 🧰 Assumption: Your Crosstrek uses the spring-loaded automatic tensioner with a 14mm hex boss on the tensioner arm (common on this engine).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the upper intake snorkel/duct for access

• Use a flathead screwdriver to loosen the hose clamp(s) on the intake duct/snorkel if equipped.
• Use a trim clip tool to pop any plastic clips holding the snorkel/duct.
• Use a 12mm socket with a 3/8" drive ratchet and 6" extension to remove any retaining bolt(s), then lift the snorkel/duct out.

Step 2: Identify the tensioner and belt routing

• Use a work light to locate the belt and pulleys.
• The belt should run around the crank pulley (largest, lowest), alternator, A/C compressor, and any idler/tensioner pulleys.
• Tip: If routing is confusing, sketch it.

Step 3: Release belt tension

• Put a 14mm combination wrench on the tensioner’s 14mm hex boss (this is the “grab point” on the tensioner arm).
• Rotate the wrench smoothly to unload the spring (you’re pushing against spring force). A “tensioner” is the spring-loaded arm that keeps the belt tight automatically.
• While holding the tensioner rotated, slide the belt off the easiest-to-reach upper pulley (commonly the alternator) by hand.
• Slowly let the tensioner return to its resting position—do not let it snap back.

Step 4: Remove the old belt

• Pull the belt out from the remaining pulleys by hand.
• Check the belt for cracks, glazing (shiny spots), or missing ribs—this confirms the replacement was needed.

Step 5: Inspect pulleys and the tensioner

• Spin the idler pulley by hand and listen/feel for roughness or grinding.
• Check the tensioner pulley for wobble or noise by hand.
• Tip: Any squeal/roughness means pulley replacement soon.

Step 6: Install the new belt (leave one upper pulley for last)

• Route the new belt around the crank pulley and other pulleys first, matching your photo/sketch.
• Make sure every belt rib sits fully in the pulley grooves (no rib hanging off an edge).
• Leave the easiest upper pulley for last (commonly the alternator) so you can slip it on while the tensioner is released.

Step 7: Apply tension and seat the belt

• Rotate the tensioner again using the 14mm combination wrench.
• Slip the belt onto the last pulley by hand.
• Slowly release the tensioner back against the belt.
• Do a final “groove check” with the work light: the belt must be centered on every pulley with ribs fully engaged.

Step 8: Reinstall the snorkel/duct

• Reinstall any bolts using a 12mm socket and 3/8" drive ratchet, then Torque to 18 Nm (13 ft-lbs) (typical for small Subaru intake bracket bolts).
• Reinstall clips using the trim clip tool.
• Tighten any clamps using a flathead screwdriver until snug (do not strip the clamp).

---

✅ After Repair

• 🧪 Start the engine and watch the belt for 10-20 seconds—it should run smoothly with no hopping.
• 🧪 Listen for squealing or chirping; if you hear it, shut off and re-check belt seating on all grooves.
• 🧪 Turn A/C on and headlights on briefly; confirm no belt noise under load.
• 🧪 Re-check belt alignment once more after a short 5-minute drive.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $125-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
