🔧 GLA - Serpentine Belt Replacement

The serpentine belt (the single belt that drives accessories like the alternator and A/C) wears, cracks, and can slip or squeal. Replacing it restores proper accessory drive and helps prevent a sudden belt failure.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely; you’ll work near hot pulleys and the radiator area.
• ⚠️ Keep fingers clear of pulleys while releasing the tensioner; it’s spring-loaded and can snap back.
• ⚠️ Support the vehicle with jack stands; never rely on a floor jack alone.
• ⚠️ Do not start the engine until all tools are removed and the belt is fully seated in every pulley groove.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3" extension (3/8" drive)
• Torx T25 bit
• Torx T30 bit
• Trim clip removal tool
• Torque wrench (10–200 Nm range)
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Lower engine splash shield fasteners - Qty: As needed

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and locate the belt routing diagram (typically on a sticker near the front of the engine bay). If it’s missing, take a clear photo of the current belt routing before removal.
• Tip: A phone photo saves a lot of frustration.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front-right corner and remove the wheel

• Use a 17mm socket and 3/8" drive ratchet to loosen the front-right wheel bolts slightly while the tire is on the ground.
• Lift the front-right corner with a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Remove the wheel bolts with the 17mm socket and remove the wheel.
• Reinstall later: Torque to 130 Nm (96 ft-lbs)

Step 2: Remove the lower splash shield (undertray) for access

• Use a work light to find the fasteners under the front of the engine.
• Remove the undertray fasteners using Torx T25 bit and Torx T30 bit on a 3/8" drive ratchet.
• If any plastic clips are present, remove them with a trim clip removal tool (this tool pops clips out without breaking them).
• Set the undertray and hardware aside in a small pile so nothing gets lost.

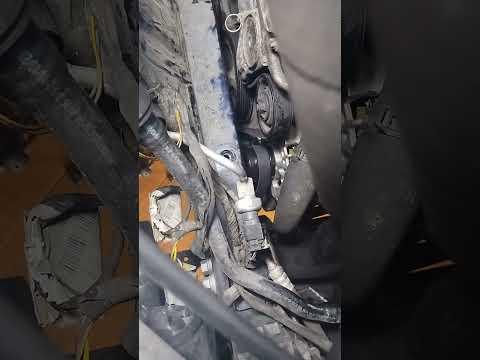

Step 3: Identify the belt tensioner and confirm routing

• From the passenger-side wheel well / lower front area, locate the belt and pulleys.
• Find the belt tensioner (a spring-loaded arm that keeps the belt tight).
• Double-check the belt routing using the under-hood routing diagram or your photo.

Step 4: Release belt tension

• Place a 17mm socket with a 3/8" drive breaker bar (a longer handle for leverage) onto the tensioner’s hex.
• Rotate the tensioner smoothly to relieve tension (you’ll feel spring resistance).
• While holding the tensioner in the released position, slide the belt off the easiest-to-reach upper pulley.
• Slowly let the tensioner return to its resting position. Do not let it snap back.

Step 5: Remove the old belt

• Pull the belt off the remaining pulleys by hand.
• Compare the old belt to the new one to confirm the same length and rib count.
• Inspect pulleys for wobble, cracks, or roughness by spinning them by hand (engine off).

Step 6: Install the new belt

• Route the new belt following the routing diagram/photo, leaving the easiest pulley for last.
• Make sure the belt ribs sit perfectly in the grooves on every grooved pulley (no ribs hanging off an edge).
• Use the 17mm socket and 3/8" drive breaker bar to rotate the tensioner again.
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Tip: If it won’t slip on, re-check routing.

Step 7: Reinstall the splash shield and wheel

• Reinstall the undertray using the Torx T25 bit and Torx T30 bit with the 3/8" drive ratchet.
• Reinstall any clips using the trim clip removal tool as needed.
• Reinstall the wheel and hand-thread all bolts first.
• Lower the vehicle, then use a torque wrench (10–200 Nm range) with a 17mm socket: Torque to 130 Nm (96 ft-lbs)

---

✅ After Repair

• Start the engine and let it idle for 20–30 seconds while you watch the belt track on the pulleys (keep hands and tools away).
• Listen for squealing, chirping, or slapping noises; shut off immediately if the belt walks off a pulley.
• Do a short test drive, then recheck visually for proper belt seating.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $30-$80 (parts only)

You Save: $150-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
