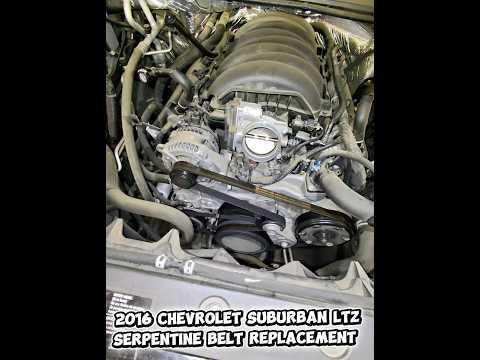

🔧 Suburban - Serpentine Belt Replacement

The serpentine belt drives key accessories like the alternator, power steering, A/C compressor, and water pump. Replacing a worn belt helps prevent squealing, charging problems, overheating, and sudden breakdowns.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep hands and tools away from the fan and pulleys; they can pinch hard.
• ⚠️ Work on a cool engine; hot radiator hoses and components can burn you.
• ⚠️ Remove the key and keep it in your pocket so nobody starts the engine.
• ⚠️ If you raise the front, support with jack stands; never rely on a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive breaker bar
• Serpentine belt tool kit (specialty)
• Flat trim tool
• Flashlight
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Belt routing decal (if missing) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock a rear wheel using wheel chocks.
• Open the hood and locate the belt routing diagram (usually on the fan shroud or underside of the hood). If it’s missing, take a clear photo of the current routing with your phone.
• Tip: Draw the routing on paper first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Grasp the cover and pull upward to release the rubber grommets, or use a flat trim tool to help lift corners if it’s tight.
• Set the cover aside where it won’t get stepped on.

Step 2: Find the belt tensioner

• Use a flashlight to look at the front of the engine and locate the belt tensioner (it’s the spring-loaded pulley arm that keeps the belt tight).
• The tensioner typically has either a 15mm socket bolt head or a 3/8" drive ratchet square hole for leverage.
• A tensioner is a spring arm that holds belt tension.

Step 3: Relieve belt tension

• Install a 15mm socket on a 3/8" drive breaker bar (or use the serpentine belt tool kit (specialty) for better reach).
• Rotate the tensioner to release tension (you will be pulling against a strong spring).
• While holding the tensioner rotated, slide the belt off the easiest-to-reach smooth pulley (often the alternator or an idler).
• Slowly return the tensioner to its resting position. Do not let it snap back.

Step 4: Remove the old belt

• Pull the belt out of the engine bay by hand.
• Inspect the old belt for cracks, missing ribs, glazing (shiny sections), or chunks missing. Those are common failure signs.

Step 5: Inspect pulleys and tensioner

• Spin each pulley by hand and listen/feel for roughness or grinding.
• Check that the tensioner arm moves smoothly when you rotate it with the 15mm socket and 3/8" drive breaker bar.
• If any pulley wobbles or feels gritty, it may need replacement before the new belt is installed.

Step 6: Route the new belt

• Compare the new belt to the old one for length and rib count before installing.
• Route the belt following the diagram/photo. Start by wrapping it around the crankshaft pulley and other grooved pulleys first.
• Make sure the belt ribs sit fully in the grooves on every grooved pulley.
• Tip: Leave the easiest pulley for last.

Step 7: Apply tension and install the belt on the last pulley

• Rotate the tensioner again using the 15mm socket and 3/8" drive breaker bar.
• Slip the belt onto the last pulley.
• Slowly release the tensioner so it tightens the belt.
• Double-check belt alignment on every pulley with the flashlight.

Step 8: Reinstall the engine cover (if removed)

• Press the cover straight down until it seats into its grommets.

---

✅ After Repair

• Start the engine and watch the belt for 10–20 seconds. It should run smoothly with no hopping or wandering.
• Listen for squealing or slapping noises. If you hear them, shut the engine off and re-check routing and pulley alignment.
• Recheck belt seating one more time with the engine off.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
