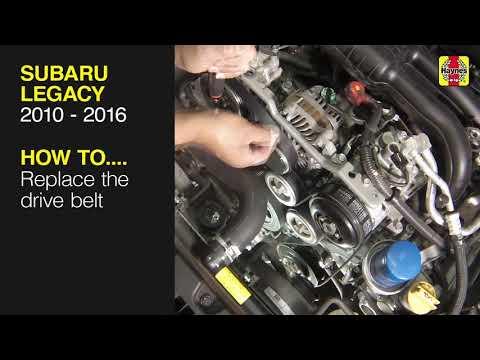

🔧 Legacy - Serpentine Belt Replacement

The serpentine belt (accessory drive belt) turns key parts like the alternator and A/C compressor. Replacing it is mostly about safely relieving the automatic belt tensioner, swapping the belt, and confirming the ribs are seated correctly on every pulley.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🧤 Work on a cool engine; hot pulleys/belt can burn you.
• 🧯 Keep fingers/tools clear of the belt path; the tensioner is spring-loaded and snaps back hard.
• 🧱 If you go under the front of the car, support it with jack stands—never rely on a floor jack.
• 🔋 Battery disconnect is not required, but keep the key away so nobody can start the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 14mm box wrench
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive breaker bar (18"-24")
• 10mm socket
• Trim clip removal tool
• Flashlight
• Mechanic gloves
• Safety glasses
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Engine under cover clips - Qty: 2-6 (optional)

---

📋 Before You Begin

• Park on level ground, shift to Park, set the parking brake, and use wheel chocks.
• Open the hood and take a clear photo of the belt routing (your “routing diagram” reference).
• If access is tight from the top, plan to remove the front lower splash/under cover for more room.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Create working room at the front of the engine

• Use a flashlight to locate the belt and the belt tensioner (the spring-loaded arm that keeps the belt tight).
• If needed, remove the air intake snorkel/duct for hand space: use a 10mm socket and 3/8" ratchet for bolts, and a trim clip removal tool for plastic clips.
• Bag clips/bolts so nothing gets lost.

Step 2: (Optional) Remove the lower engine under cover for better access

• Lift the front safely using a floor jack (rated 2-ton minimum) and support with jack stands (rated 2-ton minimum).
• Remove the under cover fasteners using a trim clip removal tool and 10mm socket.
• If you reinstall under cover bolts: Torque to 7.5 Nm (66 in-lbs).

Step 3: Relieve belt tension (automatic tensioner)

• Place a 14mm socket on a 3/8" breaker bar (18"-24") and fit it onto the tensioner’s hex point (this is the built-in “wrench point” for releasing tension).
• Rotate the tensioner smoothly to relieve tension. Move slowly—spring force is strong.
• While holding tension off, slide the belt off the easiest top pulley (often the alternator pulley) by hand with mechanic gloves.

Step 4: Remove the old belt and inspect pulleys

• Slowly let the tensioner return to its resting position using the breaker bar. Do not let it snap back.
• Remove the belt fully from all pulleys.
• Use a flashlight to inspect pulleys for wobble, heavy rust, or rough bearings (a bad pulley can ruin a new belt fast).

Step 5: Route the new belt correctly

• Match the new belt length to the old one on the ground to confirm it’s the same.
• Route the belt around the pulleys following your photo/routing sticker. Make sure the ribbed side sits in ribbed pulleys, and the smooth side sits on smooth pulleys.
• Leave the easiest-to-reach top pulley for last (so you can “slip it on” while holding the tensioner).

Step 6: Re-apply tension and seat the belt

• Use the 14mm socket and breaker bar to rotate the tensioner again.
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Use a flashlight to confirm the belt ribs are centered and fully seated on every pulley (no ribs hanging off an edge).

Step 7: Reinstall removed parts

• Reinstall the air intake snorkel/duct using the 10mm socket and trim clip removal tool.
• If removed, reinstall the under cover using the 10mm socket and trim clip removal tool.

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds while you watch the belt track straight (no wandering).
• Listen for chirping/squealing. If you hear it, shut off and re-check belt seating on every pulley.
• Turn A/C on and off once and verify no unusual noises.
• After a short test drive, do a final quick visual check with a flashlight.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $155-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
