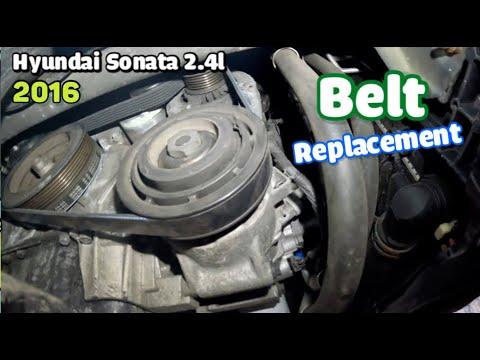

🔧 Sonata - Serpentine Belt Replacement

The serpentine belt drives key accessories (like the alternator and A/C). If it’s cracked, glazed, squealing, or stretched, replacing it helps prevent charging problems and overheating.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; belts/pulleys can burn you.
• ⚠️ Keep fingers and tools away from pulleys while releasing tension.
• ⚠️ Support your Sonata with jack stands—never rely on a jack alone.
• ⚠️ No battery disconnect is required for this job, but keep the key away from the car so no one can start it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 21mm socket
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 14mm socket
• Serpentine belt tool with 14mm socket (specialty)
• 10mm socket
• Trim clip remover (panel popper)
• Flashlight
• Torque wrench (10-150 ft-lb range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Pop the hood and locate the belt routing diagram (often on a sticker). If it’s missing, take a clear photo of the belt path before removal.
• Gather all tools so you’re not reaching around a supported vehicle later.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the right-front wheel lug nuts

• Use a 21mm socket with a 3/8" breaker bar to crack the lug nuts loose (about 1/2 turn).
• Loosen on the ground for stability.

Step 2: Lift and support the right-front corner

• Use a floor jack to lift the right-front jacking point.
• Place jack stands under a solid support point and lower the car onto the stands.
• Give the car a gentle shake to confirm it’s stable.

Step 3: Remove the right-front wheel

• Remove the lug nuts using a 21mm socket and 3/8" ratchet.
• Remove the wheel and set it under the car as an extra safety backup.

Step 4: Remove the lower splash shield / side access panel

• Use a trim clip remover (panel popper) to remove plastic clips.
• Use a 10mm socket with a 3/8" ratchet to remove any small bolts/screws.
• Use a flashlight to locate the belt, tensioner, and pulleys.
• Keep clips/bolts in a cup.

Step 5: Release belt tension

• Locate the belt tensioner (spring-loaded arm with a pulley). A spring tensioner is designed to keep the belt tight automatically.
• Place a 14mm socket on the tensioner’s hex boss and use a 3/8" breaker bar (or a serpentine belt tool with 14mm socket (specialty)) to rotate the tensioner in the direction that moves the tensioner pulley away from the belt.
• While holding tension off, slide the belt off the easiest smooth pulley you can reach.
• Slowly let the tensioner return—do not let it snap back.

Step 6: Remove the old belt and check pulleys

• Pull the belt out and compare it to the new belt (same length and rib count).
• Spin the idler and tensioner pulleys by hand. They should spin smoothly and quietly with no wobble.
• If you see heavy cracking, chunking, or oil-soak on the old belt, clean any contamination source before installing the new belt.

Step 7: Route the new belt

• Route the new belt around the pulleys using the under-hood routing diagram.
• Make sure the ribbed side of the belt sits fully in the grooves of ribbed pulleys.
• Make sure the smooth side rides on smooth pulleys.
• Leave the easiest pulley for last.

Step 8: Apply tension and seat the belt

• Use the 14mm socket and 3/8" breaker bar to rotate the tensioner away again.
• Slip the belt onto the final pulley, then slowly release the tensioner.
• Use a flashlight to verify the belt is centered on every pulley and fully seated in the grooves.

Step 9: Reinstall splash shield and wheel

• Reinstall the splash shield using the trim clip remover (panel popper) (to align clips) and the 10mm socket for bolts/screws.
• Reinstall the wheel and hand-thread the lug nuts.
• Snug the lug nuts using a 21mm socket with a 3/8" ratchet in a star pattern.

Step 10: Lower the car and torque the lug nuts

• Use the floor jack to lift slightly, remove the jack stands, then lower the car.
• Use a torque wrench with a 21mm socket to tighten lug nuts in a star pattern: Torque to 88-108 Nm (65-80 ft-lbs).

---

✅ After Repair

• Start the engine and let it idle while you watch the belt for 30-60 seconds (from a safe distance).
• Listen for squealing or slapping noises; shut off immediately if the belt walks off a pulley.
• Turn A/C on and headlights on to load the belt system and confirm everything runs smoothly.
• Recheck belt seating once more after a short 5-10 minute drive.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $125-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
