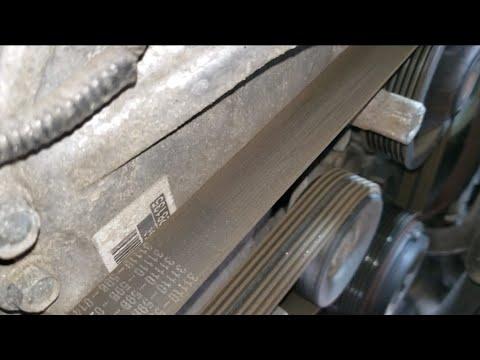

🔧 CR-V - Serpentine Belt Replacement

The serpentine belt on your CR-V drives key accessories like the alternator and A/C. Over time it wears, cracks, or squeals and needs replacement to avoid breakdowns. You’ll be working mainly from the right front wheel well.

Difficulty Level: Beginner-Intermediate | Estimated Time: 1-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Always work on a cold engine; hot pulleys and exhaust parts can burn you.
• ⚠️ Park on level ground, set the parking brake, and chock a rear wheel.
• ⚠️ Use a floor jack and jack stands; never rely on the jack alone.
• ⚠️ Keep fingers clear of the belt path and pulleys while moving the tensioner.
• ⚠️ Turn the engine OFF and remove the key before starting work.
• Battery disconnect is not strictly required, but you may disconnect the negative terminal for extra safety if you like.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ 19mm socket
• 🛠️ 1/2" drive breaker bar
• 🛠️ Serpentine belt tool (low-profile) (specialty)
• 🛠️ 10mm socket
• 🛠️ Ratchet, 3/8" drive
• 🛠️ Short socket extension, 3/8"
• 🛠️ Trim clip removal tool (specialty)
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Torque wrench, 1/2" drive (10–100 ft-lbs range)
• 🛠️ Work light or flashlight
• 🛠️ Mechanic gloves
• 🛠️ Safety glasses

Serpentine belt tool = slim wrench to move belt tensioner.

Trim clip tool = fork-shaped tool to pop plastic clips.

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Serpentine drive belt (accessory belt) for 2.4L - Qty: 1
• 🔩 Plastic splash shield clips (right front wheel well) - Qty: 6–10
• 🔩 Anti-seize compound (small tube) - Qty: 1
• 🔩 Shop towels - Qty: 1 pack

Buy a few extra clips; originals often break.

---

📋 Before You Begin

• Park your CR-V on level ground, place it in Park, set the parking brake, and chock a rear wheel.
• Loosen the right front wheel lug nuts a half-turn with the vehicle still on the ground.
• Raise the right front corner with the floor jack and support it securely on jack stands under the pinch weld or approved jacking point.
• Remove the key from the ignition so the engine cannot be started while you work.
• Locate the belt routing diagram sticker under the hood (usually on the radiator support or underside of hood). If you don’t see one, take a clear photo of the existing belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the right front wheel

• Use the floor jack to lift the right front corner if not already raised, then support with jack stands.
• Use the 19mm socket and breaker bar (or ratchet) to remove the lug nuts.
• Remove the wheel and set it aside safely.
• Put lug nuts in a tray so they don’t roll away.

Step 2: Remove the right front splash shield

• Turn your work light toward the inner fender area to see the plastic splash shield.
• Use the trim clip removal tool or flathead screwdriver to gently pry up the center pins of the plastic clips, then pull the clips out.
• Use the 10mm socket and ratchet to remove any 10mm bolts securing the splash shield.
• Lower the splash shield out of the way to expose the crank pulley, A/C compressor, alternator, and belt.
• Keep clips and bolts grouped so reassembly is easy.

Step 3: Study and record the belt routing

• Look at the existing belt and compare it to the belt routing diagram decal under the hood if present.
• If no diagram is present, take a clear photo from multiple angles showing how the belt wraps around each pulley.
• Note that on the 2.4L engine, the belt runs around the crankshaft pulley, A/C compressor, alternator, and automatic tensioner.
• A quick sketch on paper also helps later.

Step 4: Locate the belt tensioner

• From the wheel well, look toward the front of the engine for the automatic tensioner. It is a spring-loaded arm with a pulley that presses against the belt.
• On your CR-V, the tensioner has a 19mm hex area for a socket on the arm.
• Make sure you can clearly see the tensioner and have room to swing your tool.

Step 5: Relieve tension from the belt

• Place the 19mm socket on the tensioner hex from the wheel well, attached to a breaker bar or serpentine belt tool.
• Rotate the tensioner in the direction that loosens the belt (usually clockwise viewed from the wheel well, but confirm by gently moving it and watching belt slack).
• While holding the tensioner moved, slide the belt off the easiest accessible smooth pulley (often the alternator or idler) with your free hand.
• Slowly and carefully release the tensioner back to its rest position.
• Keep a strong grip; do not let the bar snap back.

Step 6: Remove the old belt

• With tension released from one pulley, work the belt off the rest of the pulleys by hand.
• Snake the belt out through the wheel well opening.
• Lay the old belt flat on the ground.
• Compare its length and rib count to the new belt to ensure a correct match.

Step 7: Inspect pulleys and tensioner

• Spin each accessible pulley (especially the tensioner pulley and idler pulley, if present) by hand.
• They should spin smoothly and quietly, with no grinding or wobble.
• Check the tensioner arm movement by slightly moving it again with the 19mm socket and breaker bar; it should move smoothly and return firmly.
• If a pulley feels rough or loose, or the tensioner is weak or jerky, plan to replace that component soon.

Step 8: Route the new belt (except one pulley)

• Using your photo/diagram, begin routing the new belt around the lower crankshaft pulley first, ensuring all ribs sit in the pulley grooves.
• Continue routing around the A/C compressor pulley and alternator pulley according to the diagram.
• Leave the easiest upper pulley (often the alternator or an idler) as the last pulley without the belt fully seated.
• Double-check every groove: the ribs on the belt must sit squarely in the ribs of each grooved pulley.
• Mis-routed belts can be thrown off at startup.

Step 9: Apply tension and slip belt onto final pulley

• Again place the 19mm socket and breaker bar (or serpentine tool) on the tensioner arm.
• Rotate the tensioner to loosen the belt path, just like before.
• With your other hand, slide the belt fully onto the last pulley, making sure the ribs line up correctly.
• Slowly release the tensioner so it applies tension to the belt.
• Carefully inspect every pulley from both the wheel well and from the top of the engine for correct alignment.

Step 10: Final belt alignment check

• Look at the belt edges on each pulley. The belt should be centered and not hanging off any edge.
• Press the belt mid-span between two long runs with your fingers; it should feel tight but still move slightly (the tensioner controls this).
• If the belt is off a groove anywhere, repeat Step 9 and re-seat it correctly.

Step 11: Reinstall splash shield

• Lift the splash shield back into position inside the wheel well.
• Use the 10mm socket and ratchet to reinstall any bolts. Torque to 9 Nm (7 ft-lbs) with the torque wrench if possible (snug, not overly tight).
• Reinstall the plastic clips by inserting the body first, then pressing the center pin in to lock.
• Replace any broken clips with new ones.

Step 12: Reinstall wheel and lower vehicle

• Put the wheel back on the hub and hand-thread all lug nuts.
• Use the 19mm socket and ratchet to snug the lug nuts in a star pattern while the vehicle is still on stands.
• Use the floor jack to lift slightly, remove the jack stands, then lower the vehicle fully to the ground.
• Use the torque wrench and 19mm socket to tighten the lug nuts in a star pattern to 127 Nm (94 ft-lbs).
• Re-check lug torque after a short drive.

---

✅ After Repair

• Start the engine and watch the belt from above and from the wheel side (stay clear of moving parts).
• Confirm the belt runs smoothly, with no wobble, squeal, or jumping.
• Turn on the A/C and headlights and listen again for any slipping or noises.
• After a short drive, recheck belt alignment and lug nut torque.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$350 (parts + labor)

DIY Cost: $35-$80 (parts only)

You Save: $140-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.0 hours.

---
