🔧 NX - Serpentine Belt Replacement

The serpentine belt (also called the drive belt) spins accessories like the alternator and A/C compressor. If it’s cracked, glazed, or squealing, replacing it prevents a breakdown and charging or cooling issues.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: stock accessory drive with an automatic spring tensioner.

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and support the SUV with jack stands before going under the wheel well.
• ⚠️ Keep fingers clear of the belt path while rotating the tensioner (it’s spring-loaded and snaps back).
• ⚠️ Let the engine cool before working near the radiator/fans and turbo plumbing.
• ⚠️ No battery disconnect is required, but keep the key fob away and the engine OFF.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 3/8" drive ratchet
• 10mm socket
• 14mm socket
• 14mm combination wrench
• Trim clip removal tool
• Flathead screwdriver
• Torque wrench (10-150 ft-lbs range)
• Work light
• Mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Fender liner clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Take a clear photo of the belt routing before removal. If you forget the path, installation becomes frustrating fast.
• Know your tools: a trim clip removal tool is a small forked tool that pops plastic clips out without breaking them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the right-front wheel

• Use a 21mm socket and 1/2" drive breaker bar to slightly loosen the lug nuts while on the ground.
• Lift the right-front corner using a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Remove the lug nuts with the 21mm socket and take the wheel off.

Step 2: Remove the right-front fender liner/splash access

• Use a trim clip removal tool and flathead screwdriver to remove the plastic push-clips and screws in the front portion of the fender liner (wheel well cover).
• If an under-cover edge overlaps, remove the small bolts using a 10mm socket and 3/8" drive ratchet.
• Peel the liner back enough to clearly see the belt and the belt tensioner.

Step 3: Relieve belt tension

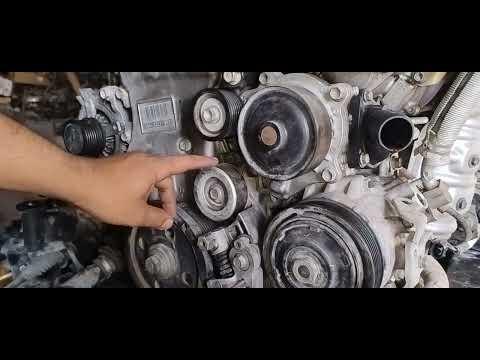

• Locate the automatic belt tensioner. It’s a spring-loaded arm that keeps the belt tight.
• Fit a 14mm socket and 3/8" drive ratchet (or a 14mm combination wrench) onto the tensioner’s hex.
• Rotate the tensioner smoothly to release tension. Move slowly—spring force is strong.

Step 4: Remove the old belt

• While holding the tensioner rotated with the 14mm socket, slide the belt off the nearest easy pulley (typically an upper smooth idler pulley).
• Slowly let the tensioner return to its resting position. Do not let it snap.
• Remove the belt completely and compare it to the new belt for length and rib count.

Step 5: Inspect pulleys and tensioner

• Spin the idler pulleys by hand. They should turn smoothly and quietly (no grinding).
• Check for wobble (side-to-side movement) at any pulley—wobble usually means a failing bearing.
• Look at the tensioner arm movement; it should feel firm, not weak or jerky.

Step 6: Install the new belt

• Route the new belt exactly like your photo, making sure the ribbed side sits in ribbed pulleys and the smooth side runs on smooth pulleys.
• Start by wrapping the belt around the crank pulley and other lower pulleys first, leaving an easy-to-reach pulley for last.
• Rotate the tensioner again using the 14mm socket and 3/8" drive ratchet, slip the belt onto the last pulley, then slowly release the tensioner.
• Visually verify the belt is centered on every pulley and all ribs are seated correctly. One rib off = squeal and belt damage.

Step 7: Reassemble the wheel well

• Reposition the fender liner and reinstall clips/screws using the trim clip removal tool and flathead screwdriver.
• Reinstall any small bolts using a 10mm socket and 3/8" drive ratchet.

Step 8: Reinstall the wheel and torque lug nuts

• Install the wheel and hand-thread the lug nuts.
• Lower the SUV to the ground using the floor jack (rated 3-ton minimum).
• Use a torque wrench (10-150 ft-lbs range) with a 21mm socket to tighten lug nuts in a star pattern: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Start the engine and watch the belt for 20-30 seconds. It should run straight with no hopping or wandering.
• Listen for squealing or chirping. If you hear it, shut off and re-check belt seating on every pulley.
• After a short test drive, do a quick re-check through the wheel well to confirm the belt is still centered.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $90-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.3 hours.

---
